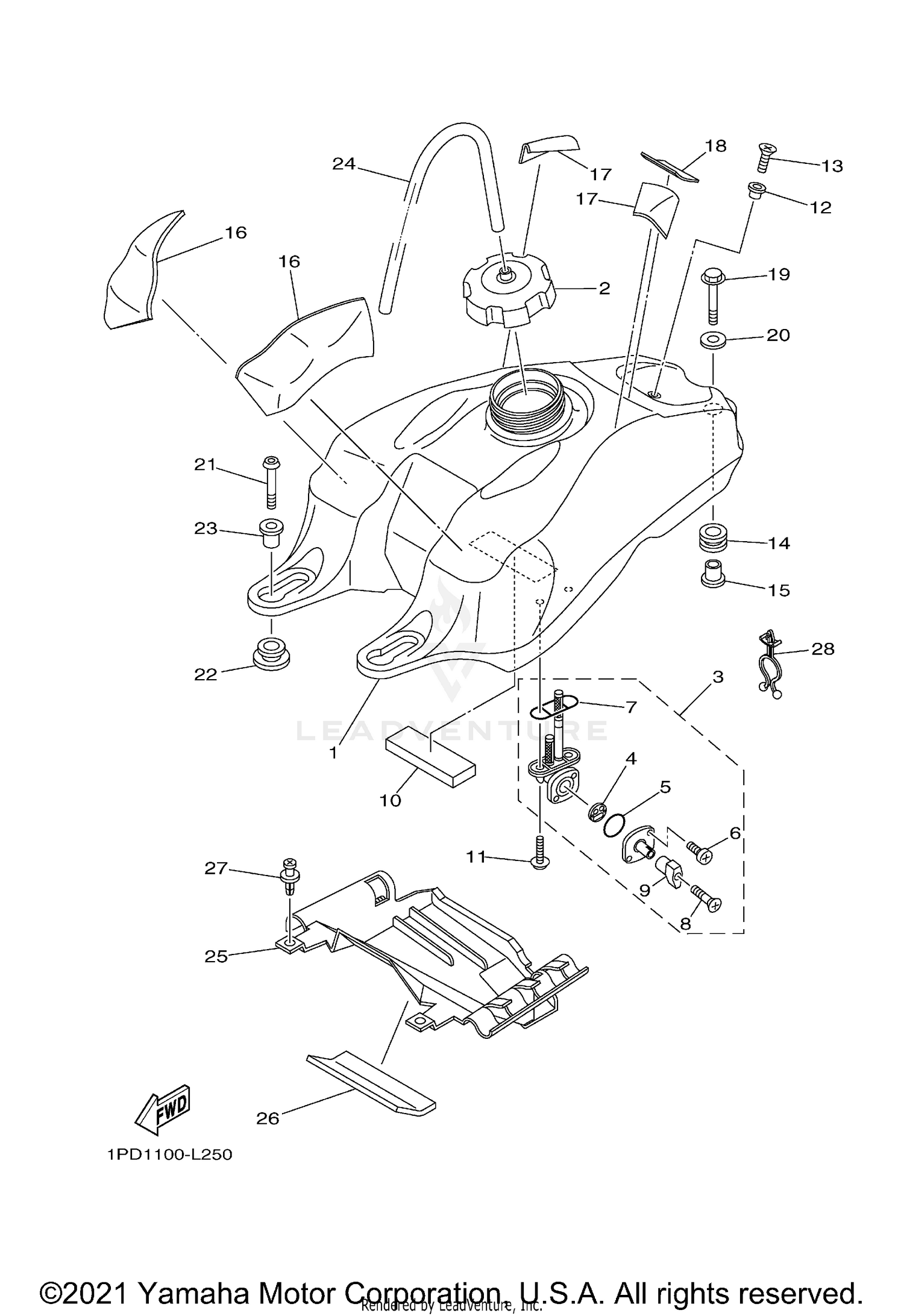

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5TG-24110-10-00
|
$367.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
5KM-24610-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUEL COCK ASSY 1
5TG-24500-10-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE PACKING
3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, COCK
3AJ-24534-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
4X8-24512-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, FLAT HEAD
98606-04018-00
Superseded by 98707-04016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER, COCK
4HM-24524-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, LOCATING 1
5TG-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
90149-06108-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, SEAT
4EW-2412F-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, FLAT HEAD
98702-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-18290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-066J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAT, BATTERY
12R-21747-00-00
Superseded by 5Y1-82122-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAT, DAMPER A
M12-T133A-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER
22F-2139X-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT,FLANGE
95822-06030-00
Superseded by 95817-06030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-06033-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, BUTTON HEAD
92012-06025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET
90480-18004-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-066J1-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
HOSE
90445-08026-00
Superseded by 90445-09823-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER, PLATE 1
5TG-2414H-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAT, BATTERY
12R-21747-00-00
Superseded by 5Y1-82122-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
RIVET
90269-06002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-18014-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
