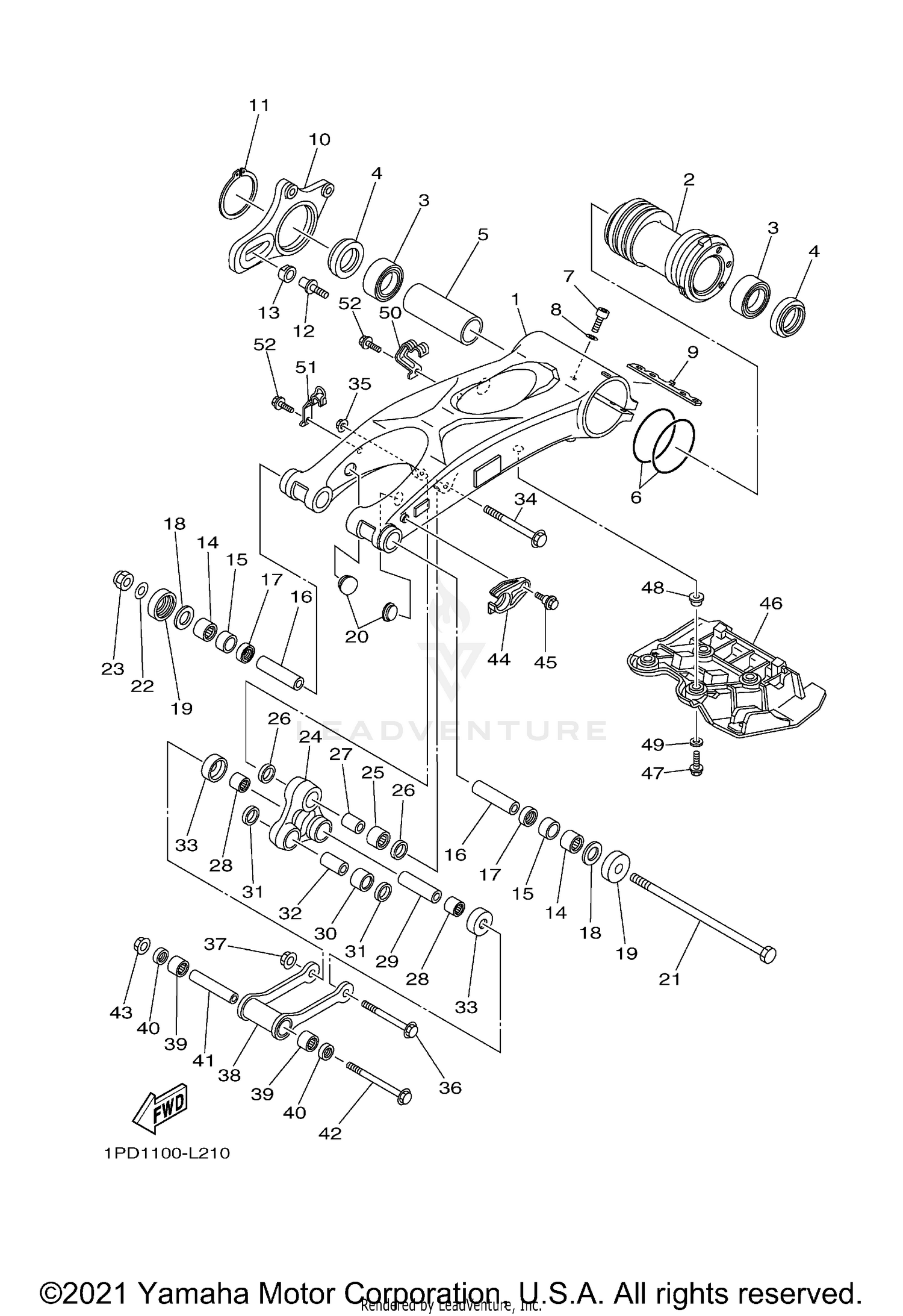

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
5TG-22110-21-00
|
$748.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HUB, REAR
5TG-25311-30-00
|
$310.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93304-20812-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-46003-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, BEARING
1PD-25317-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
1S3-23147-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92903-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
5TG-22475-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, CALIPER
5TG-25721-30-00
|
$221.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93410-67085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET
90110-12001-00
Superseded by 90110-12002-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-16014-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93317-22237-00
Superseded by 93317-32231-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH, SOLID
90380-22111-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-160W0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (DC 22-28-8)
93106-22019-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
3YF-22149-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, THRUST 2
4X7-22129-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG
90338-23004-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHAFT, PIVOT
5LP-22141-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-16018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-16002-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
ARM, RELAY
5TG-2217A-10-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93315-32057-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93109-20001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-12055-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING
93315-31758-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-12030-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
93315-32052-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93109-20001-00
|
$11.49 | ||
|
Unavailable |
|||
|
#32
COLLAR
90387-12020-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, THRUST 1
5TG-22128-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
90105-12038-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SELF-LOCKING
95602-12200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
90105-12040-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, SELF-LOCKING
95602-12200-00
|
$4.20 | ||
|
Unavailable |
|||
|
#38
ROD, CONNECTING 1
5D3-2217F-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING
93315-31758-00
|
$37.99 | ||
|
Unavailable |
|||
|
#40
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
COLLAR
90387-12019-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
90105-12039-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, SELF-LOCKING
95602-12200-00
|
$4.20 | ||
|
Unavailable |
|||
|
#44
SEAL, GUARD
5TG-22151-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT
90109-06172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
GUARD SUB ASSY
5TG-22360-11-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
COLLAR
90387-06151-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
WASHER, PLATE
90201-06088-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
HOLDER, BRAKE HOSE
5TG-25887-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
HOLDER, BRAKE HOSE
5TG-25886-10-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, FLANGE
90105-06063-00
Superseded by 90105-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
