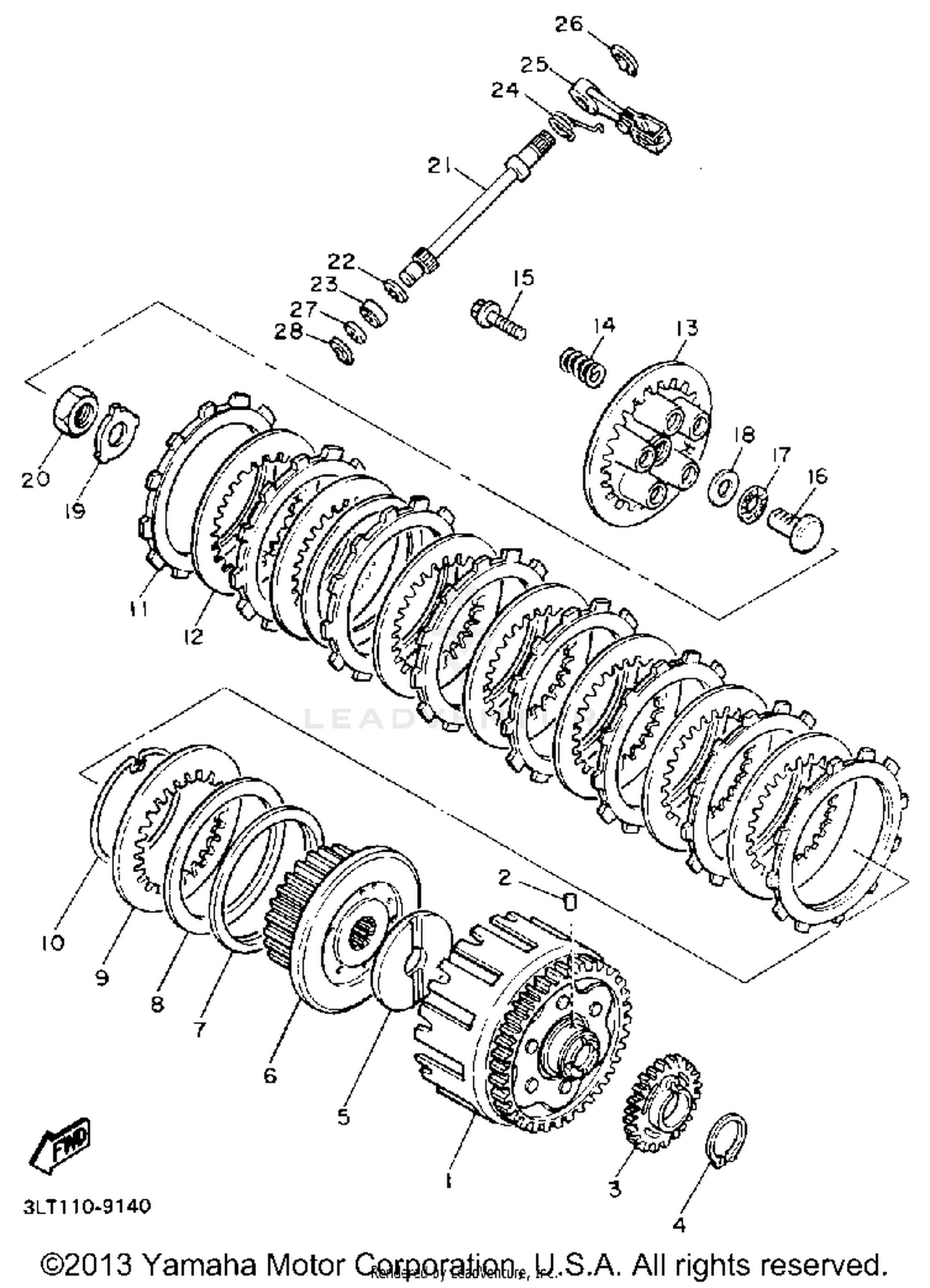

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRI DRVN GEAR
4U8-16170-01-00
Superseded by 4HK-16170-00-00
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
93605-10108-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, PUMP DRIVE
4G0-13324-09-00
|
$106.99 | ||
|
Unavailable |
|||
|
#4
CIRCLIP
93410-40059-00
Superseded by 99009-40400-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, THRUST 1
3Y1-16154-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOSS, CLUTCH
4H7-16371-01-00
|
$141.99 | ||
|
Unavailable |
|||
|
#7
PLATE, SEAT
1J7-16384-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, CLUTCH BOSS
1J7-16383-01-00
|
$41.99 | ||
|
Unavailable |
|||
|
#9
PLATE, CLUTCH 1
168-16324-00-00
Superseded by 168-16324-10-00
|
$20.99 | ||
|
Unavailable |
|||
|
#10
RING, CLUTCH BOSS
1J7-16385-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, FRICTION
4H7-16321-01-00
Superseded by 4H7-16321-02-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, CLUTCH 2
371-16325-00-00
Superseded by 371-16325-10-00
|
$14.99 | ||
|
Unavailable |
|||
|
#13
PLATE, PRESSURE 1
4H7-16351-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#14
SPRING, COMPRESSION
90501-23391-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, WITH WASHER
90159-06092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, PUSH 1
4H7-16356-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93340-21505-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-154E9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, LOCK
90215-20231-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90170-20327-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
AXLE, PUSH LEVER
4G0-16382-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-12M34-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93102-12224-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, TORSION
90508-16459-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PUSH LEVER ASY
4G0-16340-01-00
Superseded by 3YR-16340-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP (E) (99001-09600-00)
99001-09600-00
Superseded by 99080-09600-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-09572-00
|
$1.70 | ||
|
Unavailable |
|||
|
#28
CIRCLIP
99001-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
