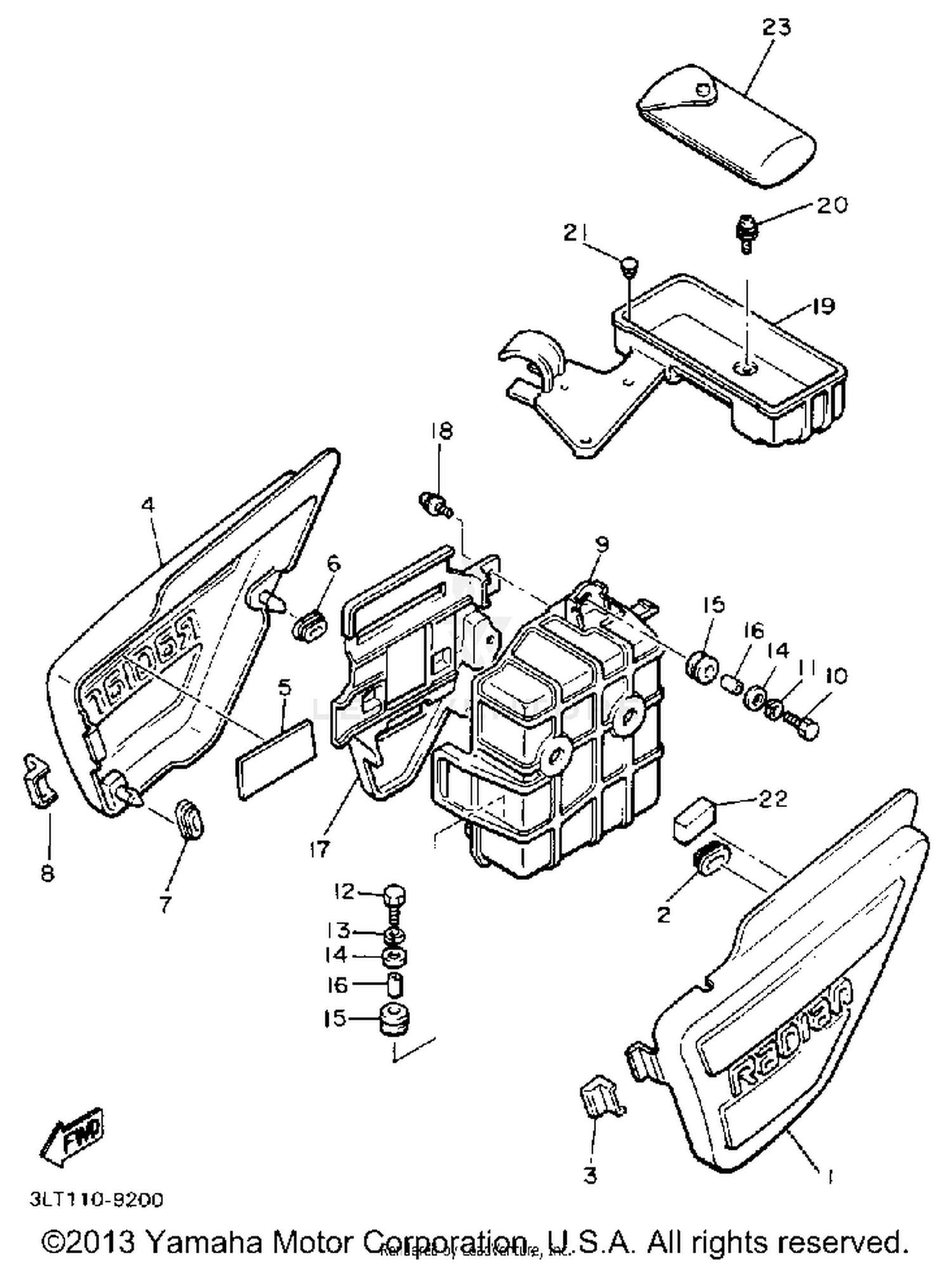

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
1UJ-21711-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, SIDE COVER
466-21717-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SIDE 2
1UJ-21721-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#5
DAMPER 1
2JG-21638-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Unavailable |
|||
|
#7
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
DAMPER, SIDE COVER
466-21717-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#9
BOX
4G0-21170-01-00
|
$35.99 | ||
|
Unavailable |
|||
|
#10
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-16233-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
LID
3LT-28185-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#18
SCREW, WITH WASHER
90159-06082-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOX, TOOL
3LT-21171-00-00
|
$8.94 | ||
|
Unavailable |
|||
|
#20
SCREW, WITH WASHER
90159-06082-00
|
$8.49 | ||
|
Unavailable |
|||
|
#21
DAMPER
1J7-21717-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER 1
1KT-21717-00-00
Superseded by 83R-14425-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
TOOL KIT
46X-W2810-00-00
|
$113.99 | ||
|
Unavailable |
|||
