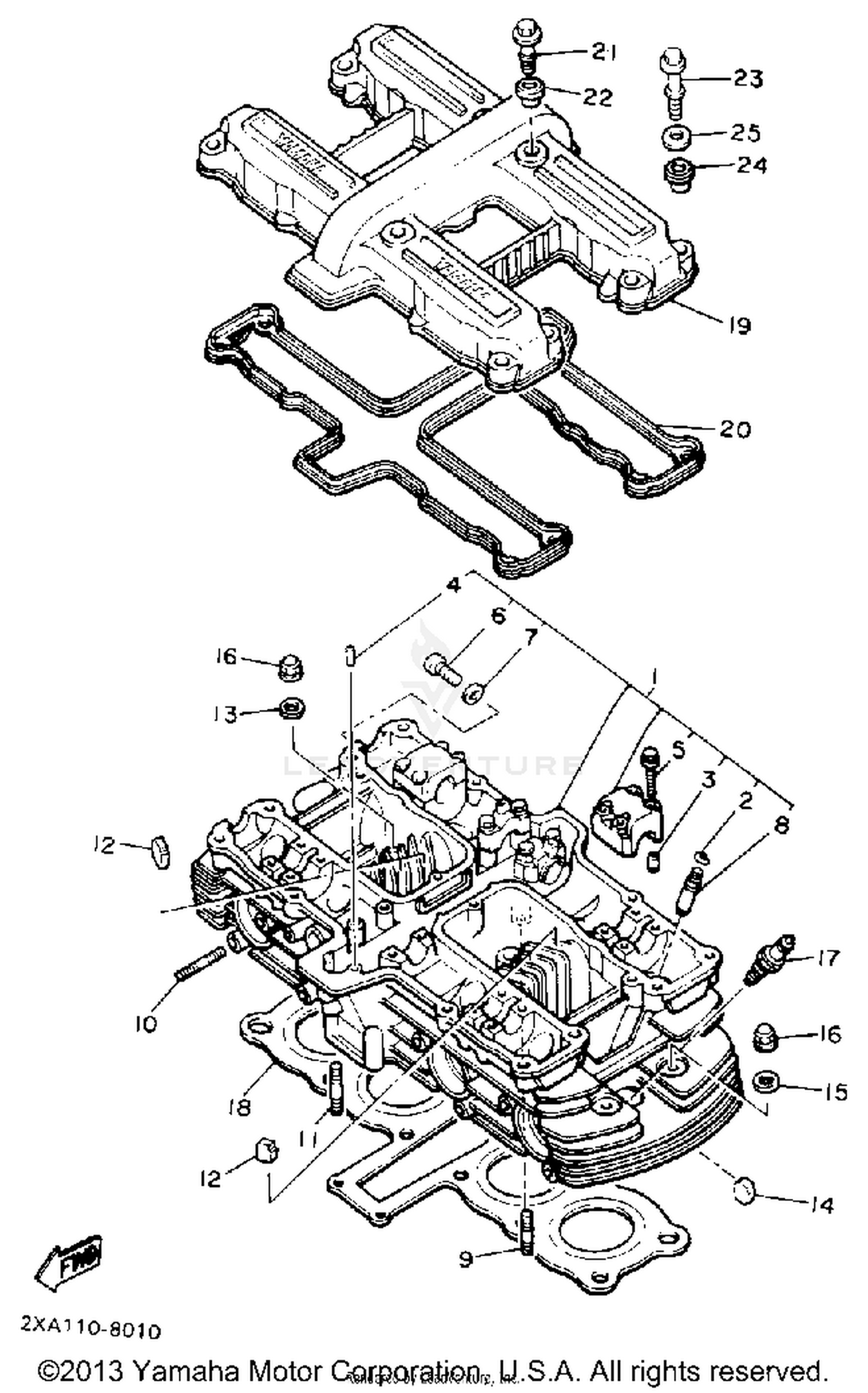

1990 Yamaha YX600A RADIAN CYLINDER HEAD OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSEMBLY
49A-11101-00-00
|
$1,627.99 | ||
|
Unavailable |
|||
|
#2
CIRCLIP
93440-10085-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93604-14012-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-06153-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, HEXAGON
90153-06045-00
Superseded by 90153-06029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, VALVE 1
4G0-11133-10-00
Superseded by 4G0-11133-11-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
95621-06618-00
Superseded by 50M-14651-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
90116-06540-00
Superseded by 90116-06466-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
95611-06630-00
Superseded by 90116-06466-00
|
$4.15 | ||
|
Unavailable |
|||
|
#12
ABSORBER 1 (363-11161-00)
434-11161-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-094G1-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ABSORBER 1
4H7-11161-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-080L7-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CROWN
90176-08026-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
D8EA NGK SPLUG 10P
NGK-D8EA0-00-00
Superseded by D8E-A0000-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#18
GASKET, CYLINDER HEAD 1
4BR-11181-00-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, CYLINDER.HEAD 1
3LT-11191-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#20
GASKET, HD.COVER 1
3KM-11193-00-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-06585-00
|
$8.99 | ||
|
Unavailable |
|||
|
#22
RUBBER, MOUNT 1
4G0-1111G-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90109-06584-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
GROMMET
90480-11287-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPEC''L SHAP
90209-10199-00
|
$6.49 | ||
|
Unavailable |
|||
