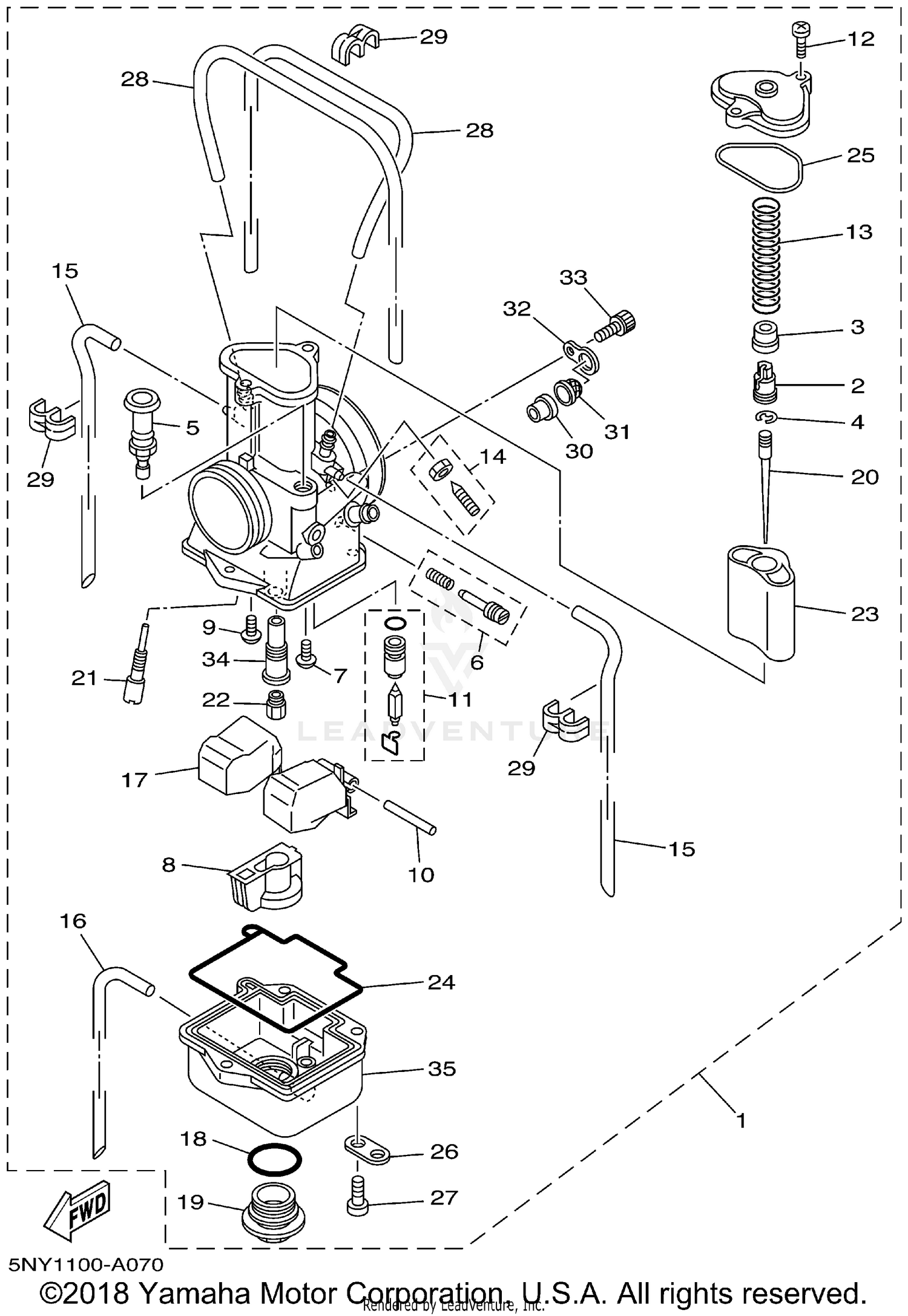

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
5NY-14101-00-00
|
$709.99 | ||
|
Unavailable |
|||
|
#2
HOLDER
5HD-14261-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING
4PE-14194-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP
3MA-14159-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUNGER, STARTER
3JE-14171-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
AIR SCREW SET
3JD-14104-00-00
Superseded by 4GL-14104-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
1FN-14565-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER
5ET-14261-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98507-04008-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, FLOAT
353-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE VALVE SET
4PE-14107-38-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98507-04014-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, THROTTLE VALVE
4PE-14131-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
THROTTLE SCREW SET
4PE-14103-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE
5ET-14197-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE
10V-14196-00-00
Superseded by 3XV-14348-20-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FLOAT
5ET-14185-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
2K6-14147-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG, SCREW
5ET-14115-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NEEDLE (6CHY6-79)
284-14116-F4-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NEEDLE (6CHY6-80)
284-14116-F5-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NEEDLE (6CHY6-81)
284-14116-F6-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NEEDLE (6CHY5-81)
284-14116-E6-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NEEDLE (6CHY6-77)
284-14116-F2-00
|
$13.99 | ||
|
Unavailable |
|||
|
#20
NEEDLE (6CHY6-78)
284-14116-F3-00
|
$13.99 | ||
|
Unavailable |
|||
|
#20
NEEDLE (6CHY5-79)
284-14116-E4-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NEEDLE (6CHY5-77)
284-14116-E2-00
|
$12.99 | ||
|
Unavailable |
|||
|
#20
NEEDLE (6CHY5-78)
284-14116-E3-00
|
$13.99 | ||
|
Unavailable |
|||
|
#20
NEEDLE (6CHY5-80)
284-14116-E5-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, PILOT (# 32.5)
4KM-14142-32-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, PILOT (# 35)
4KM-14142-35-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, PILOT (# 37.5)
4KM-14142-37-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, PILOT (# 30)
4KM-14142-30-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, PILOT (27.5)
4KM-14142-27-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, PILOT (# 25)
4KM-14142-25-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, PILOT (# 22.5)
4KM-14142-22-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, PILOT (# 40)
4KM-14142-40-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, PILOT (#20)
4KM-14142-20-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#460)
137-14143-92-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#430)
137-14143-86-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#450)
137-14143-90-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#400)
137-14143-80-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#420)
137-14143-84-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#440)
137-14143-88-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#390)
137-14143-78-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#410)
137-14143-82-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
VALVE, THROTTLE 1
5NY-14112-60-00
|
$236.63 | ||
|
Unavailable |
|||
|
#23
VALVE, THROTTLE 1
5NY-14112-55-00
|
$231.99 | ||
|
Unavailable |
|||
|
#23
VALVE, THROTTLE 1
5NY-14112-57-00
|
$236.63 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
5ET-1416A-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
5ET-14147-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE
51R-14146-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98502-05014-00
Superseded by 98580-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE
2HH-14197-00-00
Superseded by 2J2-14196-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
87M-14137-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
RING
5MV-14194-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NET, FILTER 1
5MV-24514-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLATE
5MV-14146-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW
5MV-14216-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOLDER
5MV-14261-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BODY, FLOAT CHAMBER 1
5NY-14181-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
