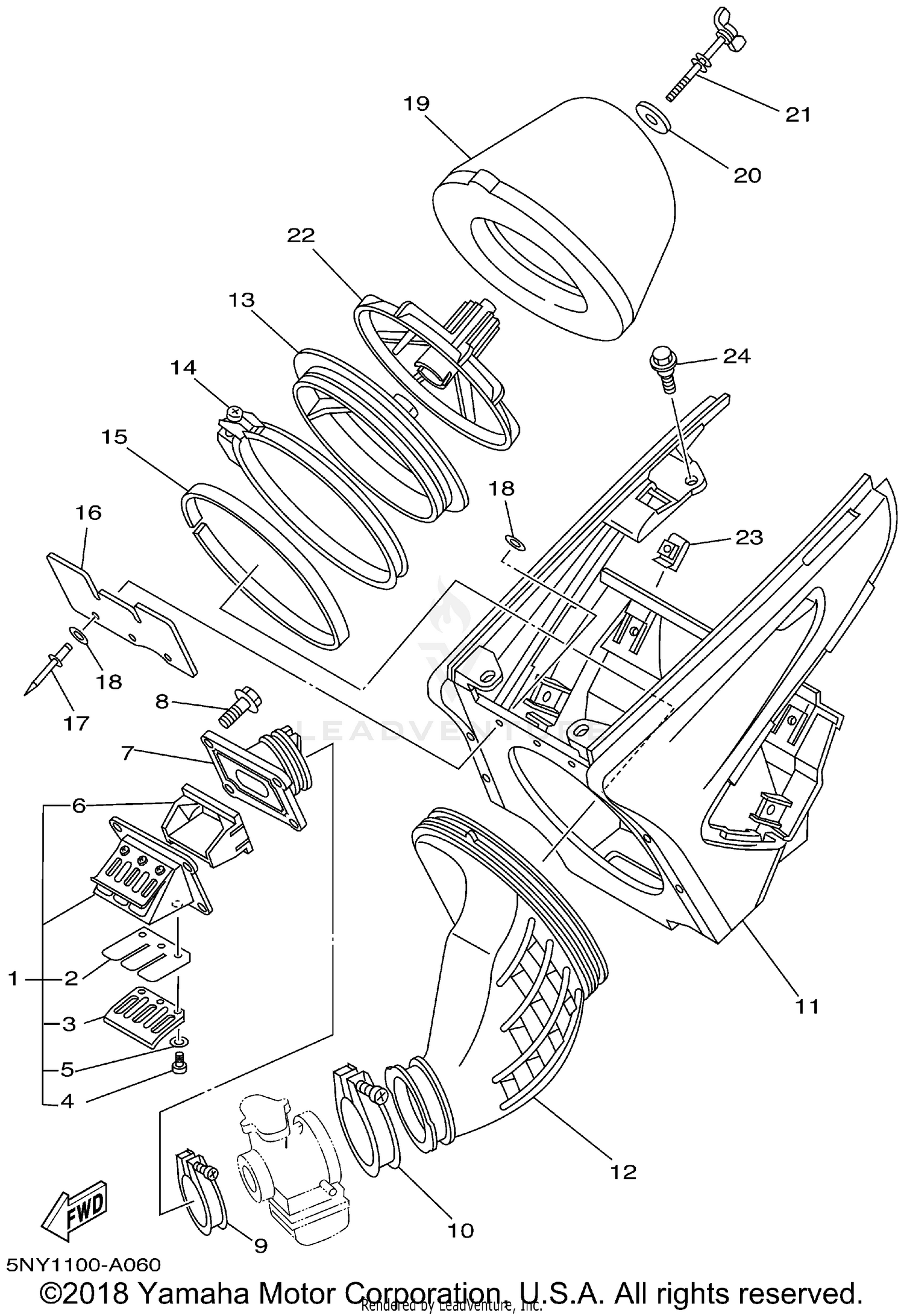

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSY
5MV-13610-00-00
|
$341.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REED, VALVE
5MV-13613-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
5MV-13616-00-00
Superseded by 5MV-13616-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98507-03006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92907-03100-00
Superseded by 92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, REED VALVE
5MV-13625-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, CARBURETOR
5MV-13565-10-00
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE CLAMP ASSY
90450-51070-00
Superseded by 90450-51001-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-70072-00
Superseded by 90450-70002-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
AIR CLEANER CASE ASSY
5NY-14401-00-00
Superseded by 5NY-14401-01-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, AIR CLEANER 1
5NY-14453-00-00
|
$168.29 | ||
|
Unavailable |
|||
|
#13
HOLDER, GUIDE
5NY-14459-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND
5NY-14455-00-00
Superseded by 5NY-14455-20-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
5NY-14442-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER 1
5NY-14417-00-00
Superseded by 5NY-14417-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIVET, BLIND
90267-32070-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-03313-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ELEMENT, AIR CLEANER
4XM-14451-00-00
Superseded by 4XM-14451-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
90209-06096-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WING
90122-06035-00
Superseded by 90122-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUIDE
3JD-14458-01-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SPRING
90183-06023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90109-067F4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
