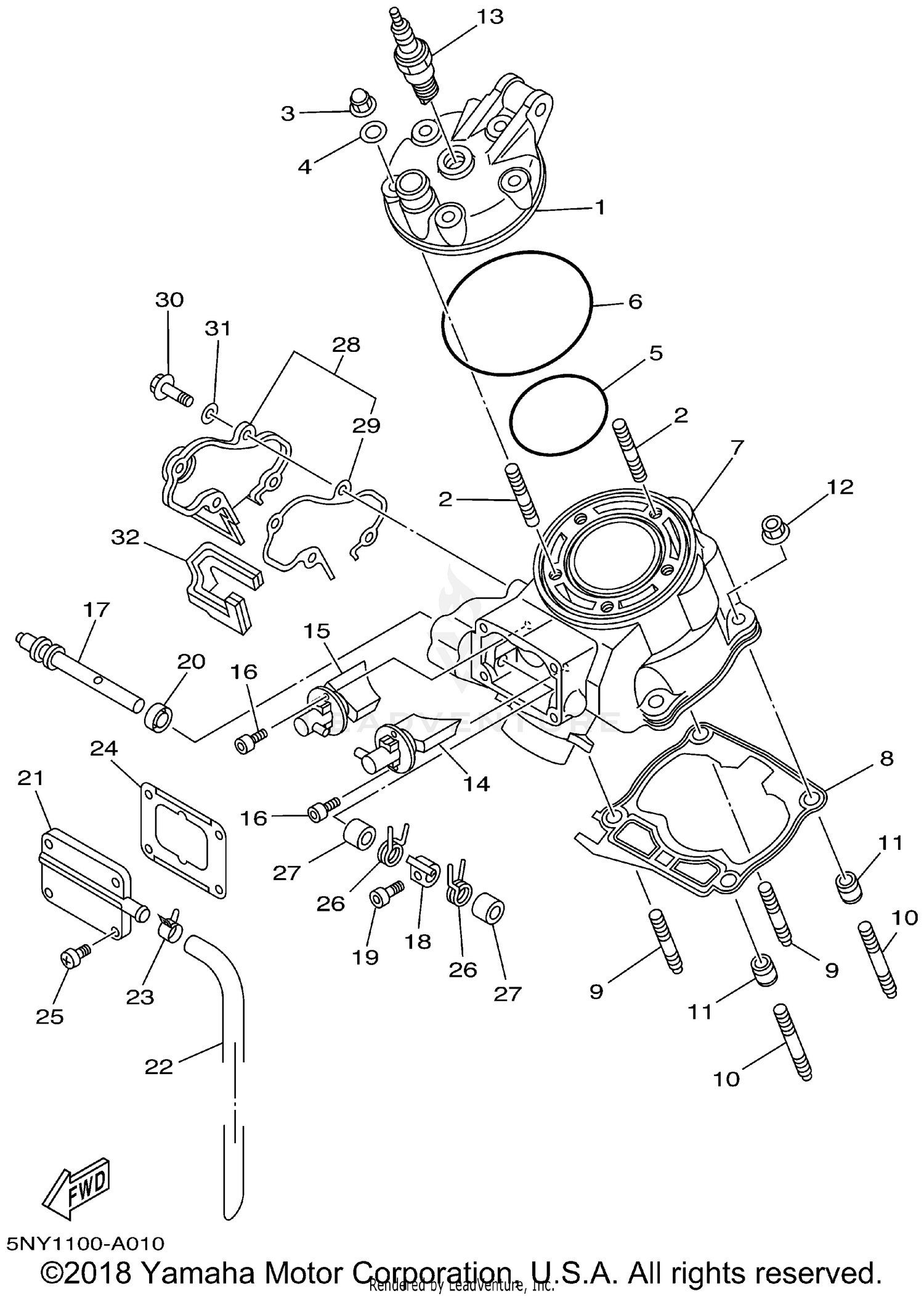

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
5MV-11111-00-00
|
$303.99 | ||
|
Unavailable |
|||
|
#2
BOLT, STUD
90116-08394-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, CROWN
90176-08026-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-080L8-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-63442-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-90785-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CYLINDER 1
5NY-11311-00-00
Superseded by 5NY-11311-11-00
|
$527.99 | ||
|
Unavailable |
|||
|
#8
GASKET, CYLINDER
5DH-11351-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD
90116-08318-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
90116-08388-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
99590-10114-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90179-08299-00
Superseded by 90179-08491-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BR9EG NGK SPLUG 4P
NGK-BR9EG-00-00
Superseded by BR9-EG000-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
VALVE ASSY
5HD-1131D-10-00
|
$256.01 | ||
|
Unavailable |
|||
|
#15
VALVE ASSY 2
5HD-1132D-10-00
|
$256.01 | ||
|
Unavailable |
|||
|
#16
BOLT
91317-05012-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT 1
5HD-1131V-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, LINK
4SS-11832-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91317-04008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93104-08040-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER
4SS-1131M-00-00
Superseded by 4SS-1131M-01-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE, BREATHER 1
4JY-11166-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP(MG5)
90467-13062-00
Superseded by 90467-14117-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
4JY-11354-02-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, BIND
98907-05016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, TORSION
90508-16134-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-08785-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOUSING 1
4JY-11991-01-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
4JY-11993-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
97007-05016-00
Superseded by 97017-05016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
SEAL, HOUSING
4JY-11995-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
