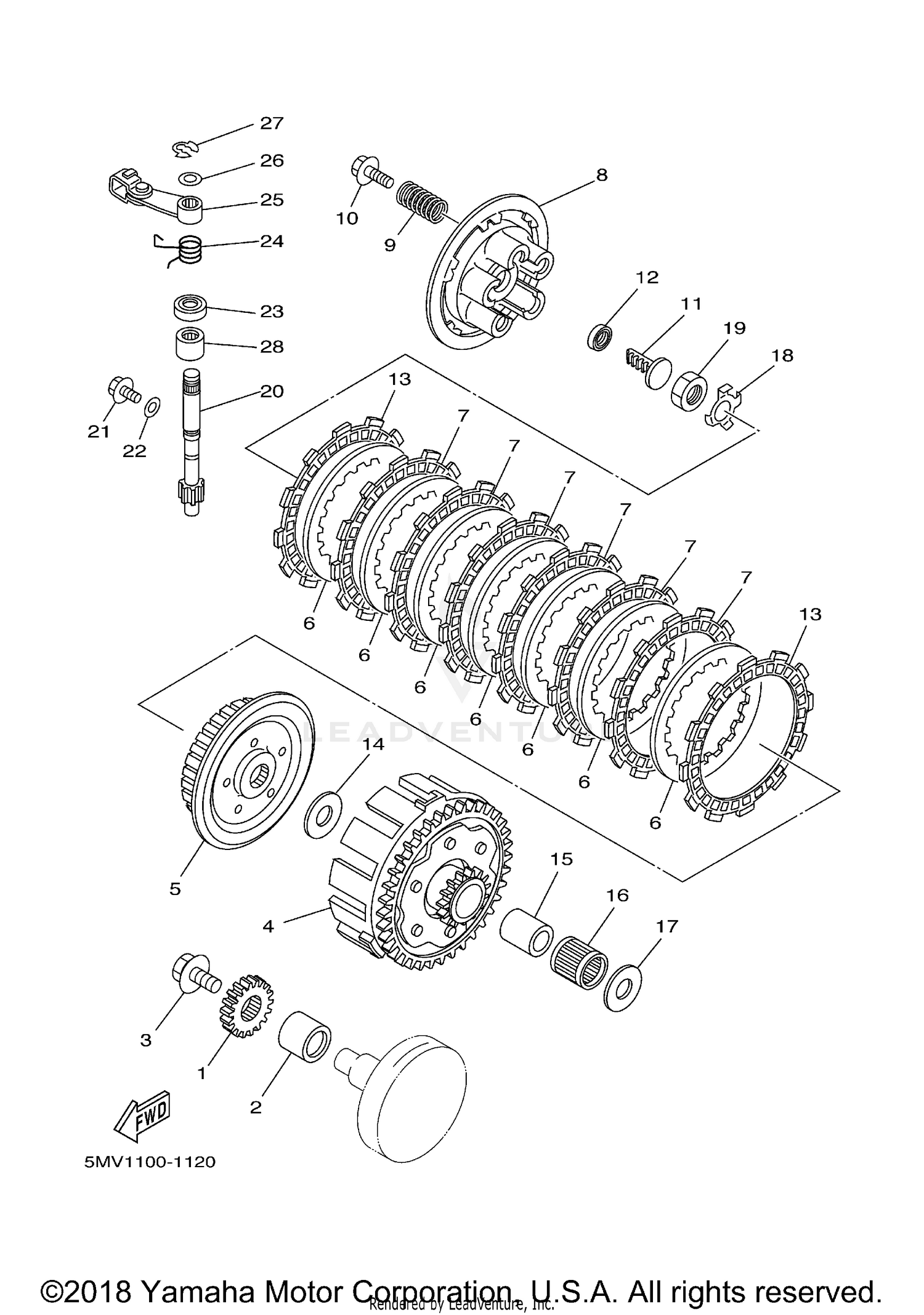

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
3XJ-16111-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-20007-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WASHER BASED
90105-10445-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PRIMARY DRIVEN GEAR COMP.
4JY-16150-02-00
Superseded by 5NY-16150-00-00
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOSS, CLUTCH
4EX-16371-00-00
Superseded by 5NY-16371-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH 1
3XJ-16324-00-00
Superseded by 3XJ-16324-10-00
|
$12.99 | ||
|
Unavailable |
|||
|
#7
PLATE, FRICTION
5DH-16321-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, PRESSURE 1
5HD-16351-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-23598-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, WITH WASHER
90159-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, PUSH 1
3SB-16356-10-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93340-21008-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, FRICTION
3XJ-16321-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-20611-00
Superseded by 90201-204K8-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER 1
3XJ-16181-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93310-225N0-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-20611-00
Superseded by 90201-204K8-00
|
$9.49 | ||
|
Unavailable |
|||
|
#18
WASHER, LOCK
90215-16289-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90170-16326-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
AXLE, PUSH LEVER
4EX-16382-10-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-06418-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93102-12224-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, TORSION
90508-141B4-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PUSH LEVER ASSY
4XV-16340-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
90201-08759-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
93430-08053-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING
93315-11206-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
