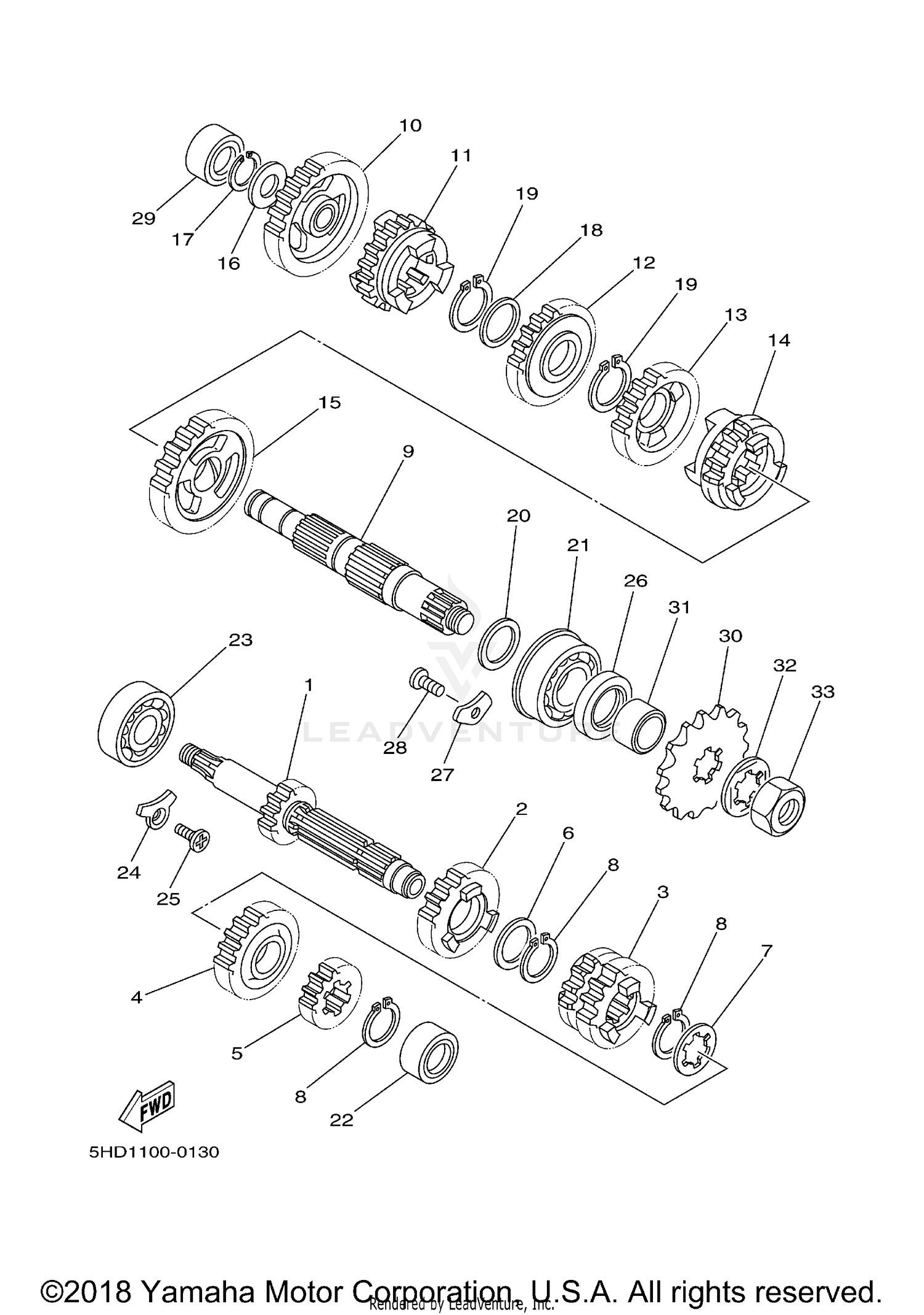

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
4XM-17411-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 5TH PINION (23T)
4EX-17151-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD PINION (21T17T)
4EX-17131-01-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 6TH PINION (24T)
4XM-17161-00-00
|
$80.99 | ||
|
Unavailable |
|||
|
#5
GEAR, 2ND PINION (15T)
4XM-17121-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-18135-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
AXLE, DRIVE
5HD-17421-00-00
|
$157.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, 1ST WHEEL (30T)
4XM-17211-01-00
|
$99.99 | ||
|
Unavailable |
|||
|
#11
GEAR, 5TH WHEEL (26T)
5HD-17251-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, 3RD WHEEL
3SR-17231-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 4TH WHEEL (27T)
4EX-17241-00-00
|
$91.99 | ||
|
Unavailable |
|||
|
#14
GEAR, 6TH WHEEL (24T)
5HD-17261-00-00
|
$85.99 | ||
|
Unavailable |
|||
|
#15
GEAR, 2ND WHEEL (28T)
4XM-17221-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE (T=1.0)
90201-15700-00
Superseded by 90201-154E8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP, OUTER
93440-15012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
90209-20008-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-20611-00
Superseded by 90201-204K8-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING (B6304)
93306-30411-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93311-41530-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93306-20431-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, BEARING COVER
1LX-15383-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, FLAT HEAD
90151-06037-00
Superseded by 98707-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93102-26042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, BEARING COVER
4XM-15383-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, FLAT HEAD
90151-06037-00
Superseded by 98707-06012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#29
BEARING, CYLINDRICAL
93311-31515-00
Superseded by 93311-31567-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPROCKET, DRIVE (12T)
9383A-12017-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPROCKET, DRIVE (14T)
9383A-14054-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPROCKET, DRIVE (13T)
9383A-13031-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-202A0-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, LOCK
90215-20261-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
90179-16226-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
