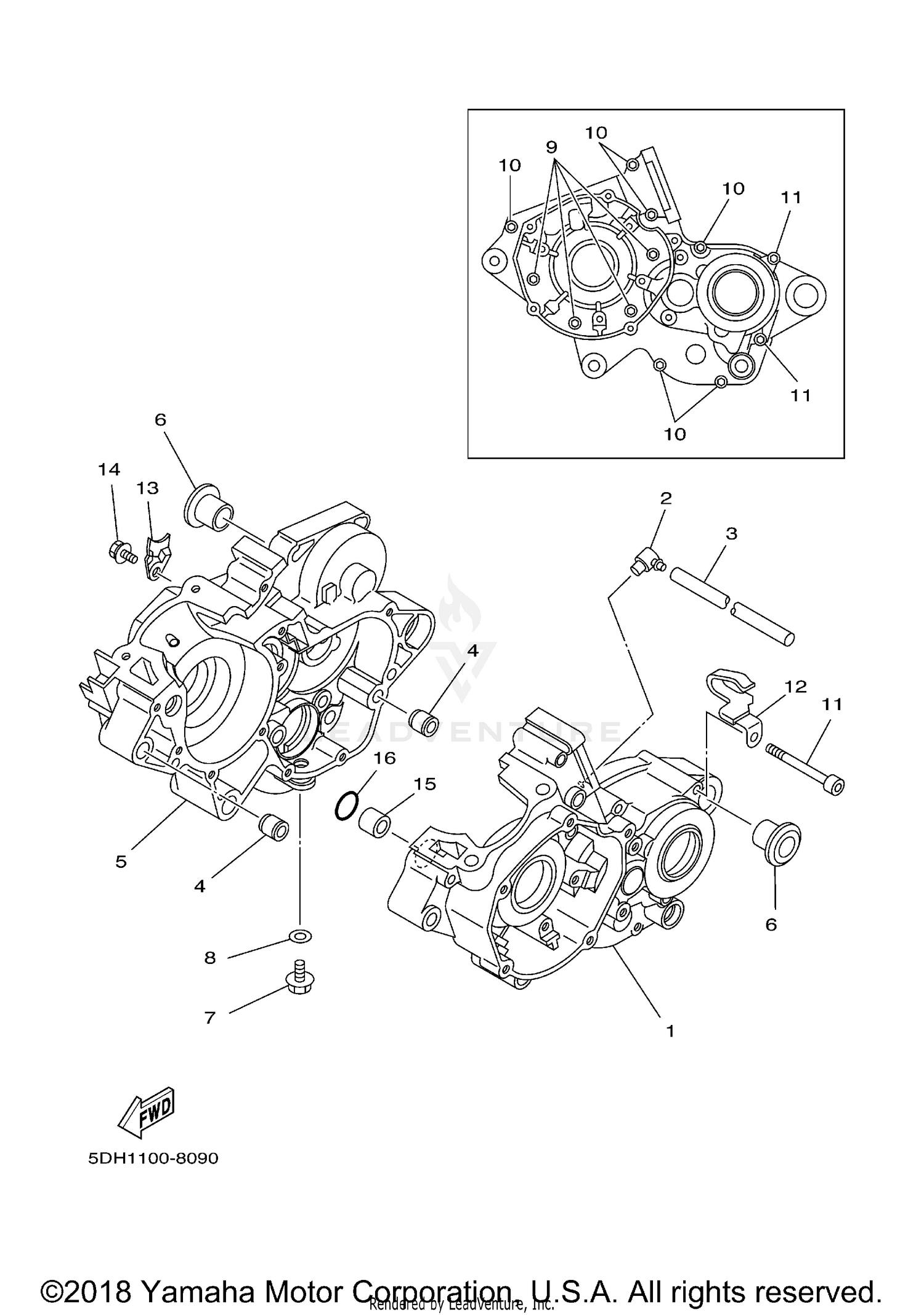

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
5MV-15111-00-00
|
$656.99 | ||
|
Unavailable |
|||
|
#2
CONNECTOR, SUCTION PIPE
353-13115-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE
90445-08605-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93612-16254-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKCASE 2
5MV-15121-00-00
|
$1,033.57 | ||
|
Unavailable |
|||
|
#6
COLLAR
90387-1712Y-00
|
$23.99 | ||
|
Unavailable |
|||
|
#7
PLUG, STRAIGHT SCREW
90340-12059-00
Superseded by 90340-12006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-12227-00
Superseded by 90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91317-06055-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. SOCKET HEAD
91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90461-10136-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER
3R4-15118-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-06556-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL
99590-17016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-16314-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
