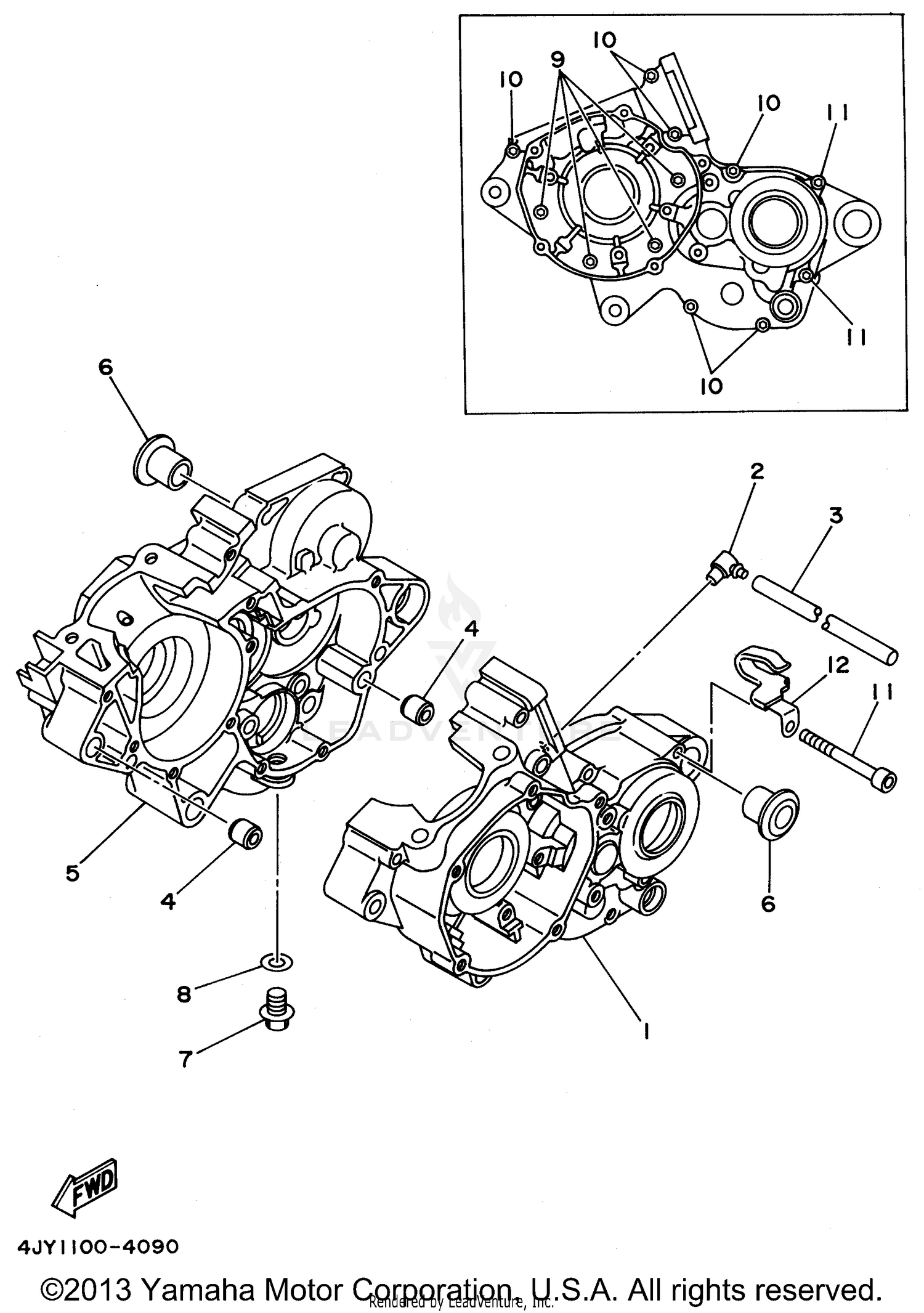

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRNKCS 1
4SS-15111-00-00
Superseded by 4SS-15111-01-00
|
$651.99 | ||
|
Unavailable |
|||
|
#2
CONNECTOR, SUCTION PIPE
353-13115-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE
90445-08605-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANK CASE 2
4SS-15121-00-00
Superseded by 4SS-15121-01-00
|
$803.99 | ||
|
Unavailable |
|||
|
#6
COLLAR
90387-160H4-00
|
$17.49 | ||
|
Unavailable |
|||
|
#7
PLUG, STRAIGHT SCREW
90340-12097-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-12227-00
Superseded by 90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91317-06055-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90465-08336-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
