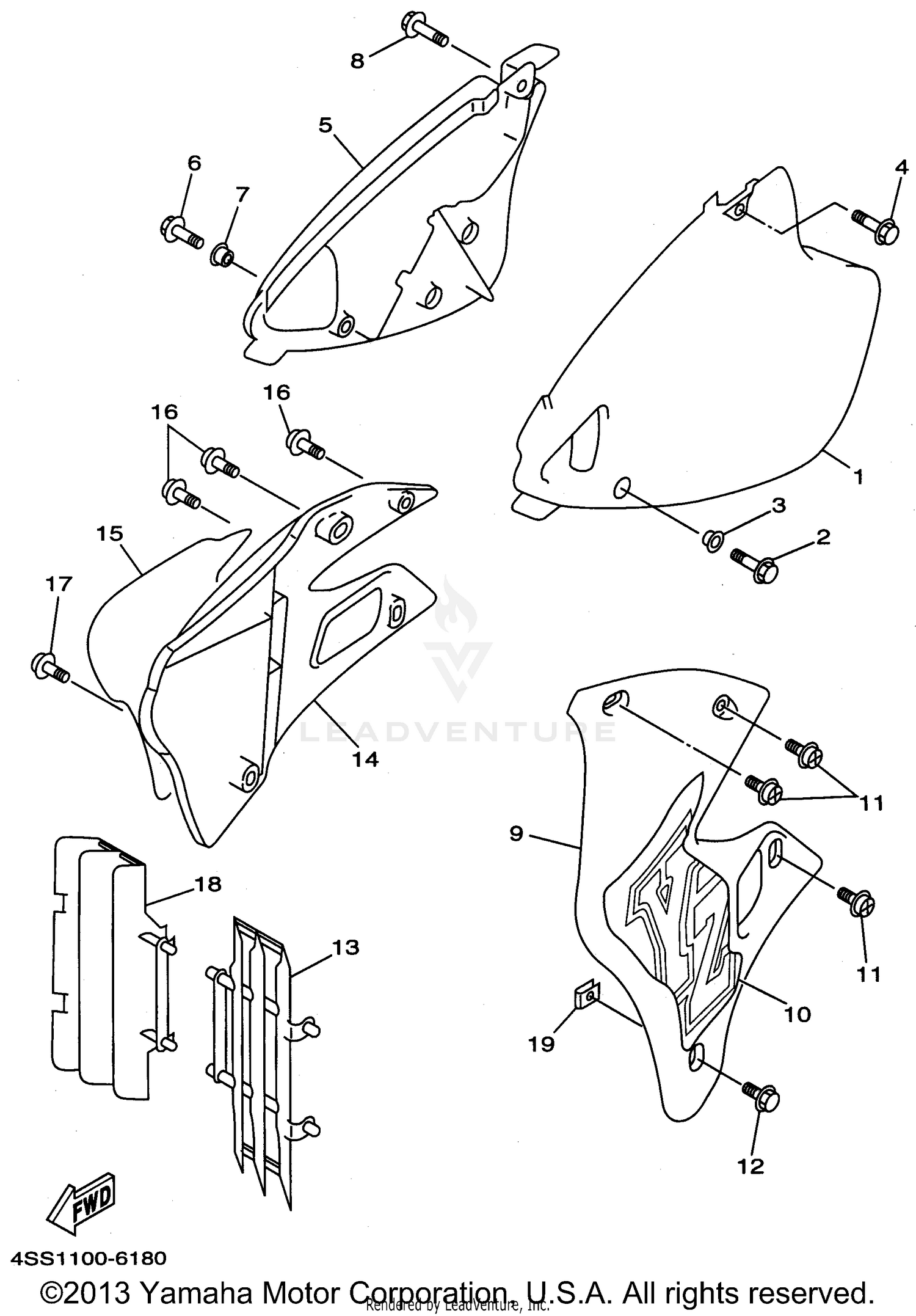

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
4SS-21711-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-0600F-00
Superseded by 90387-06009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95817-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#5
COVER, SIDE 2
4SS-21721-00-00
|
$45.35 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
95817-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#7
COLLAR
90387-0600F-00
Superseded by 90387-06009-00
|
$9.49 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
95817-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#9
SIDE COVER ASSY 3
4SS-21731-00-00
Superseded by 99999-04073-00
|
$22.00 | ||
|
Unavailable |
|||
|
#10
EMBLEM 3
4SS-21783-01-00
|
$67.99 | ||
|
Unavailable |
|||
|
#11
SCREW, WITH WASHER
90159-06182-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, WITH WASHER
90159-06078-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PANEL 1
4EW-2172A-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SIDE COVER ASSY 4
4SS-21741-00-00
Superseded by 99999-04075-00
|
$28.99 | ||
|
Unavailable |
|||
|
#15
EMBLEM 4
4SS-21784-01-00
|
$68.99 | ||
|
Unavailable |
|||
|
#16
SCREW, WITH WASHER
90159-06182-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
SCREW, WITH WASHER
90159-06078-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
PANEL 1
4EW-2172A-10-00
|
$28.99 | ||
|
Unavailable |
|||
|
#19
NUT, SPRING
90183-06069-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
