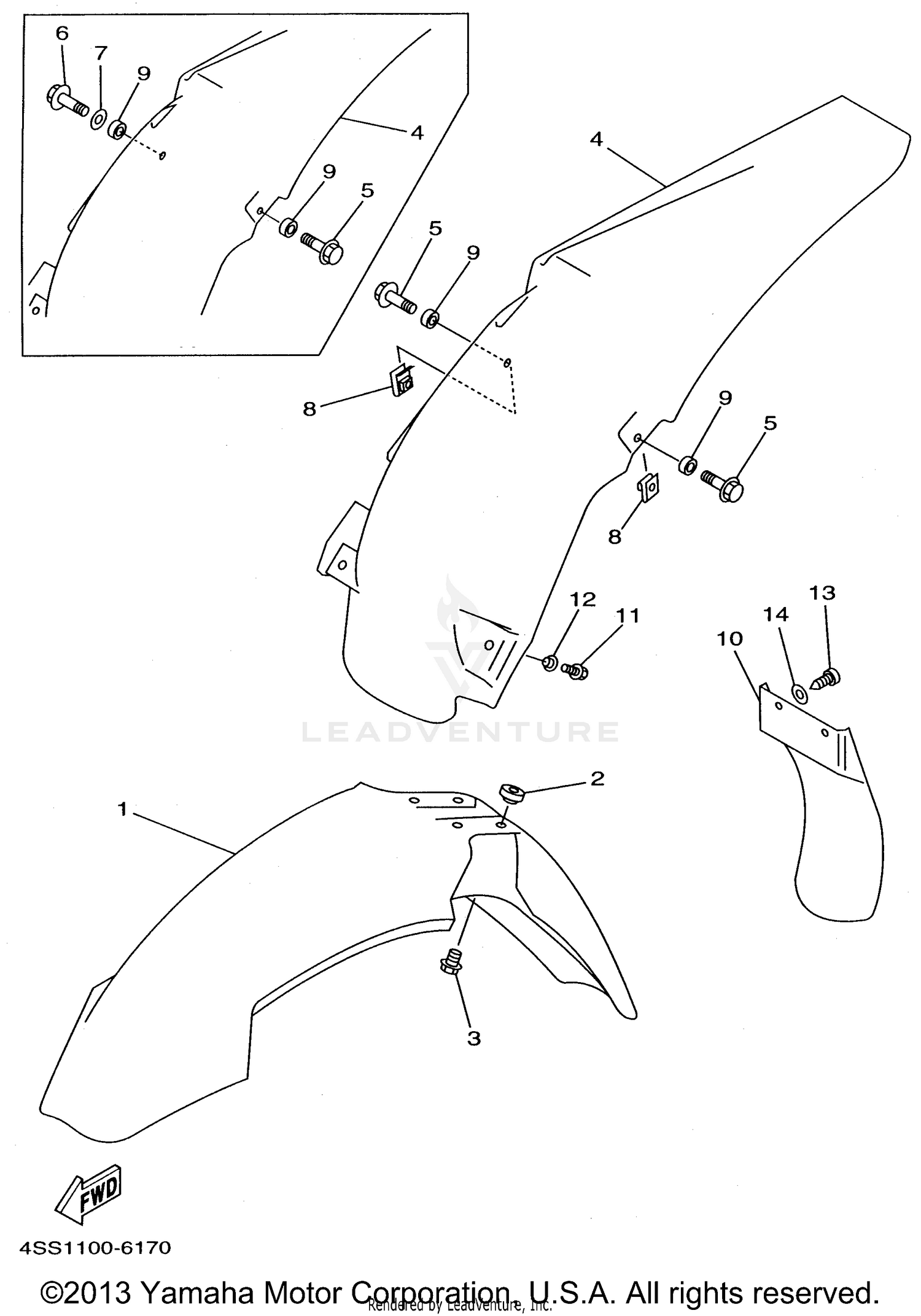

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
4DA-21511-00-00
|
$56.25 | ||
|
Unavailable |
|||
|
#2
COLLAR
3JD-21748-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06096-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER,REAR
4SS-21611-00-00
Superseded by 5BE-21611-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPRING
90183-06023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-0701A-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUARD, FLAP
4ES-21642-00-00
Superseded by 4ES-21642-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-0600F-00
Superseded by 90387-06009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, TAPPING
97707-60016-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
