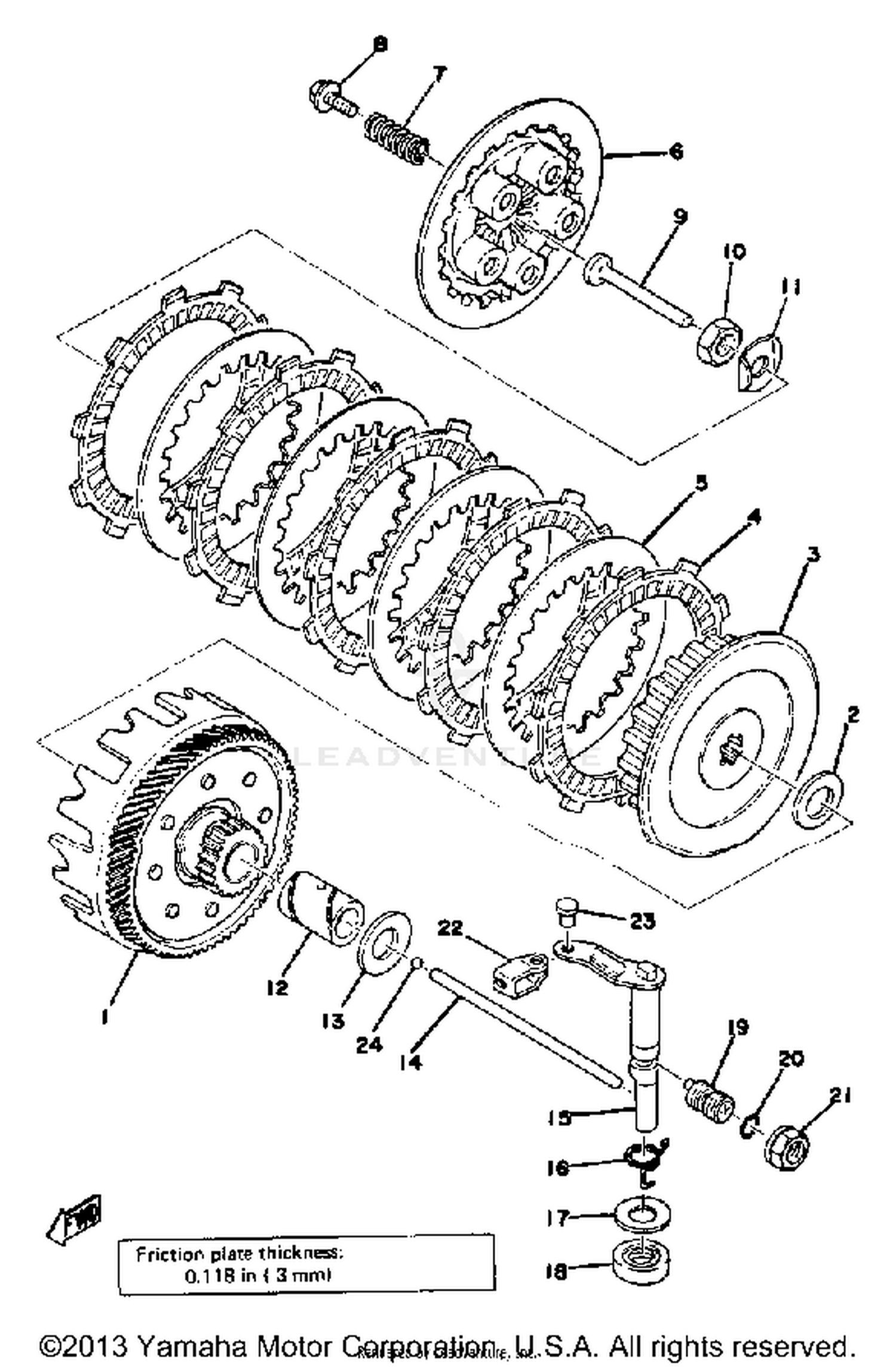

Clutch Yz125c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
537-16301-03-00
|
$100.99 | ||
|
Unavailable |
|||
|
#
PRI DRVN GEAR
537-16150-02-00
|
$225.99 | ||
|
Unavailable |
|||
|
#2
PLATE, THRUST 2
122-16164-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, CLUTCH
525-16371-02-00
|
$105.99 | ||
|
Unavailable |
|||
|
#4
PLATE, FRICTION
537-16321-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH 2
137-16325-70-00
Superseded by 137-16325-80-00
|
$15.99 | ||
|
Unavailable |
|||
|
#6
PLATE, PRESSURE 1
525-16351-00-00
|
$21.78 | ||
|
Unavailable |
|||
|
#
PLATE, PRESSURE 1 000
537-16351-00-00
|
$10.60 | ||
|
Unavailable |
|||
|
#7
SPRING, COMPRESSION
90501-20361-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WITH WASHER
90119-05001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD, PUSH 1
137-16356-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90170-12060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, LOCK
90215-12211-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
90560-17147-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-17543-00
Superseded by 90201-180P2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#
ROD, PUSH 2
1W1-16357-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#
PUSH ROD ASSEMBLY
99999-00910-00
|
$17.49 | ||
|
Unavailable |
|||
|
#15
PUSH LEVER ASSEMBLY
525-16380-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#16
SPRING, TORSION
90508-14132-00
|
$4.85 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-14217-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
93104-14059-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
90149-12097-00
|
$8.99 | ||
|
Unavailable |
|||
|
#20
O-RING
93210-10096-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90179-12197-00
|
$2.70 | ||
|
Unavailable |
|||
|
#22
JOINT
214-16389-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Unavailable |
|||
