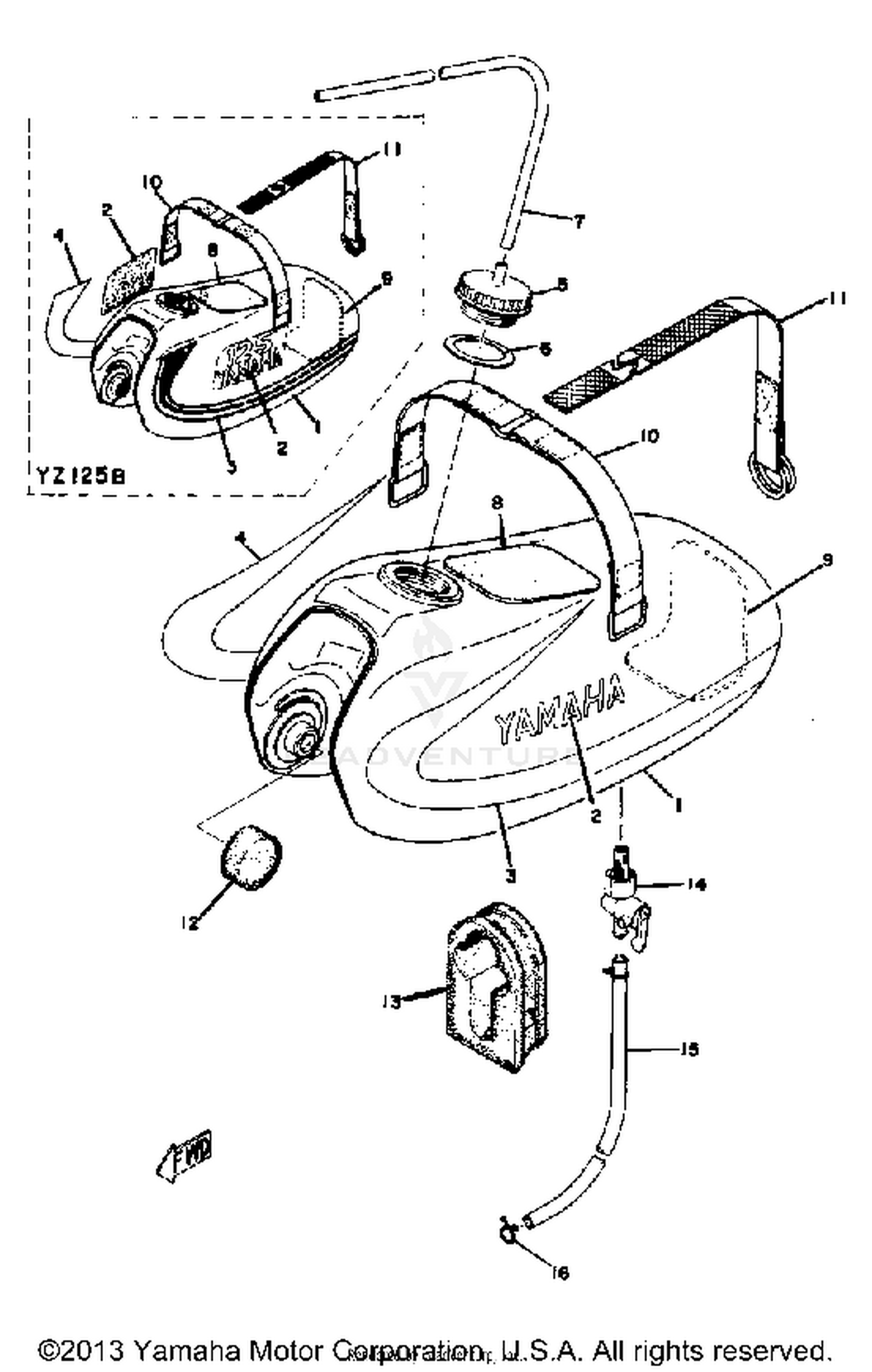

Fuel Tank Yz125a - B Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
453-24110-00-01
|
$281.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
453-24110-00-03
|
$243.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
322-24161-00-00
Superseded by 99221-00140-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM 1
453-24161-01-00
|
$4.60 | ||
|
Unavailable |
|||
|
#
EMBLEM 2
453-24162-01-00
|
$4.65 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 1
453-24244-00-00
|
$16.32 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 1
453-24244-20-00
|
$18.66 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 2
453-24245-00-00
|
$13.98 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 2
453-24245-20-00
|
$19.72 | ||
|
Unavailable |
|||
|
#5
BODY, CAP
322-24611-02-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET (322-24612-00)
90430-37052-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE (L675)
90445-09111-00
Superseded by 90445-090F6-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER, LOCATING 2
431-24182-00-00
|
$8.46 | ||
|
Unavailable |
|||
|
#9
DAMPER, LOCATING 3
431-24183-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#10
BAND, TNK FITTING 2
431-24199-00-00
|
$19.28 | ||
|
Unavailable |
|||
|
#
BAND, TNK FITTING 2
453-24199-00-00
|
$15.68 | ||
|
Unavailable |
|||
|
#11
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BAND, TNK FITTING 1
453-24173-01-00
|
$19.82 | ||
|
Unavailable |
|||
|
#12
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 3
401-24183-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#14
FUEL COCK ASSEMBLY 1 (322-24500
322-24500-02-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE
90445-11149-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
