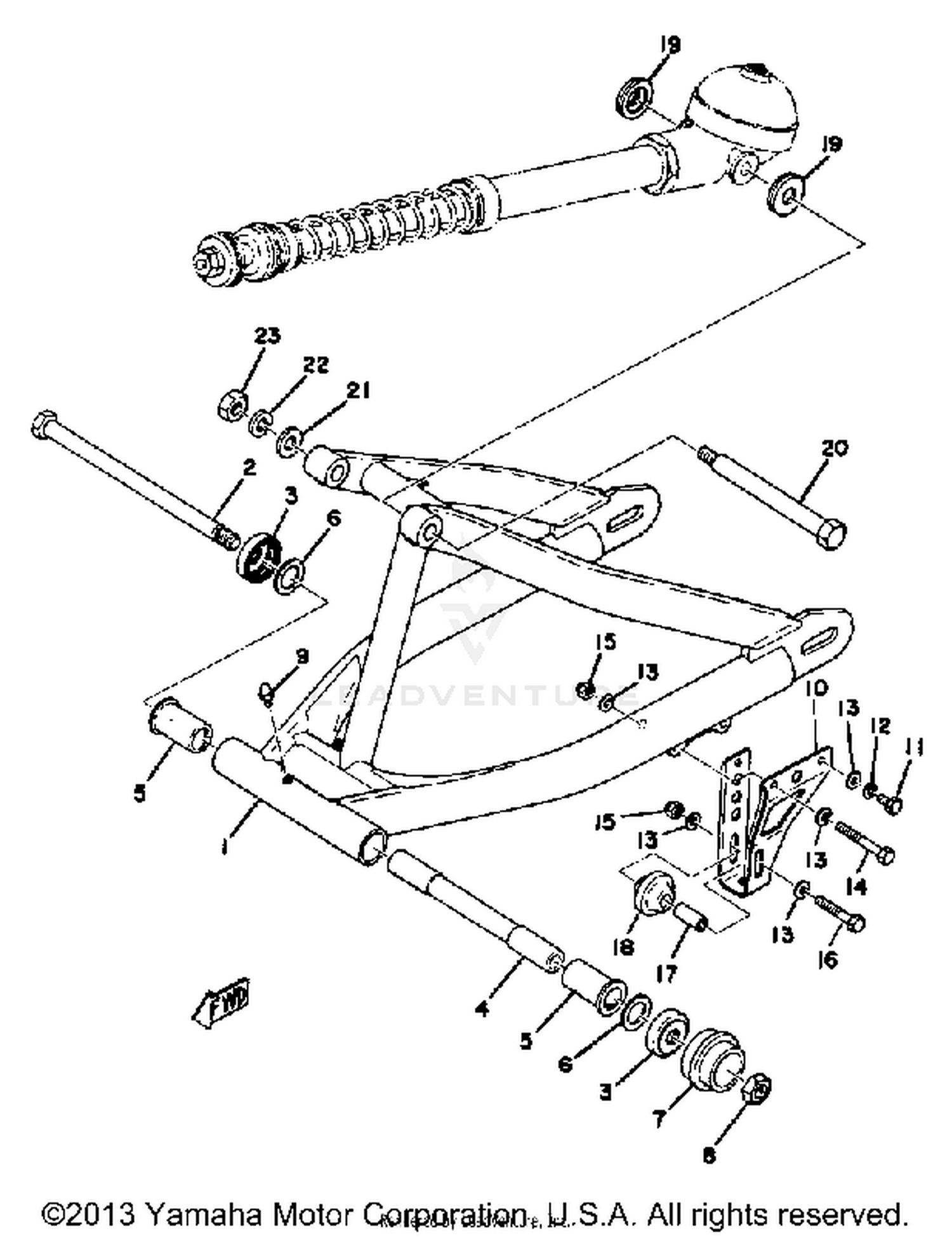

1976 Yamaha YZ 125 REAR ARM YZ125C OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
537-22110-00-33
|
$138.99 | ||
|
Unavailable |
|||
|
#2
SHAFT, PIVOT
537-22141-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#3
COVER, THRUST 1
401-22128-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH 2
18G-22124-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH
90386-18028-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM
401-22127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, GUARD
537-22151-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#8
NUT, SELF-LOCKING
90185-12046-00
Superseded by 90185-12134-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NIPPLE, GREASE
93700-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUARD, CHAIN
401-22153-00-33
|
$48.21 | ||
|
Unavailable |
|||
|
#11
BOLT
97013-06012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON W/W
97313-06055-00
Superseded by 97E95-06555-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (682)
97313-06040-00
Superseded by 97095-06040-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER (322-22137-00)
90560-06003-00
|
$5.99 | ||
|
Unavailable |
|||
|
#18
TENSIONER
322-22178-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#19
COVER, THRUST 1
483-22128-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#20
BOLT
90109-08300-00
|
$13.99 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-08439-00
Superseded by 90201-087A9-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95333-08600-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
