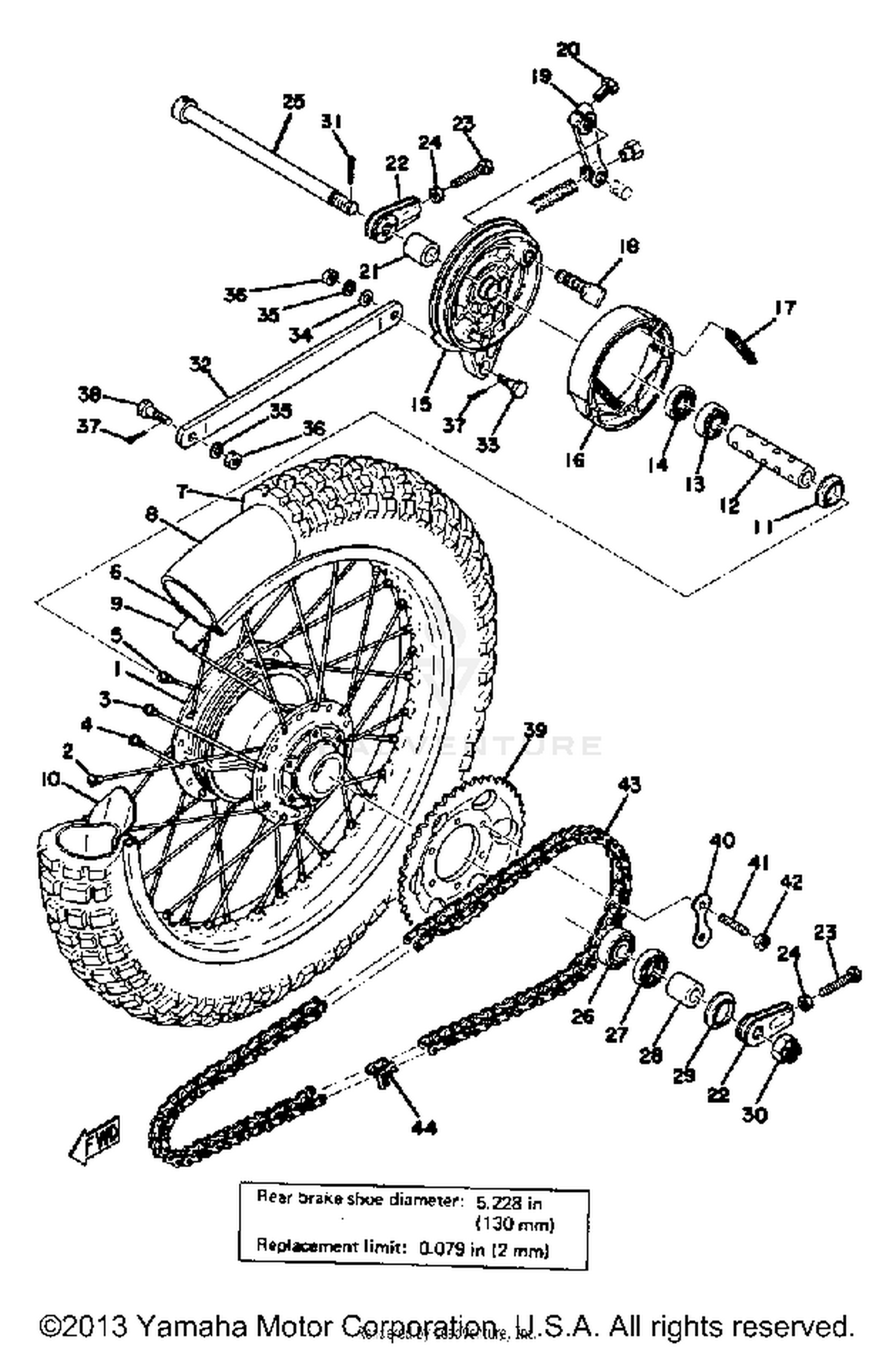

Rear Wheel Yz125c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET, REAR
537-25304-01-00
|
$131.99 | ||
|
Unavailable |
|||
|
#
HUB, REAR
537-25311-01-98
|
$104.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, INNER 2
537-25396-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#3
SPOKE SET, OUTER 2
537-25397-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, INNER 1
537-25391-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, OUTER 1
537-25392-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#6
RIM 1.85X18
94418-18245-00
|
$274.99 | ||
|
Unavailable |
|||
|
#7
410X18 DUN SR SPRT
94141-18171-00
|
$65.82 | ||
|
Unavailable |
|||
|
#8
TUBE (2.75-18)
94235-18085-00
Superseded by 94232-18113-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, BEAD
2X3-25394-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#11
FLANGE, SPACER
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
90560-15312-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-20204-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, BRAKE SHOE
401-25321-00-98
|
$81.99 | ||
|
Unavailable |
|||
|
#16
BRAKE SHOE SET
183-W2536-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#17
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAMSHAFT
401-25351-00-00
Superseded by 26A-25351-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#19
LEVER, CAMSHAFT (168-25355-00)
4V5-25355-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#20
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-15115-00
|
$13.99 | ||
|
Unavailable |
|||
|
#22
PULLER, CHAIN 1
248-25388-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
AXLE, WHEEL
537-25381-00-00
|
$27.71 | ||
|
Unavailable |
|||
|
#26
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR (401-25377-00)
90387-15424-00
|
$5.99 | ||
|
Unavailable |
|||
|
#29
UNAVAILABLE IN PRICE BOOK
401-25867-00-00
|
|||
|
Unavailable |
|||
|
#30
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BAR, TENSION
537-25371-00-00
|
$22.86 | ||
|
Unavailable |
|||
|
#33
BOLT
90109-08406-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#37
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
90109-08063-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPROCKET, DRIVN 45T
537-25445-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 47T
537-25447-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 49T
537-25449-00-00
|
$66.58 | ||
|
Unavailable |
|||
|
#40
WASHER
537-25412-00-00
|
$4.75 | ||
|
Unavailable |
|||
|
#41
BOLT, STUD
90116-10221-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#43
428HD 110L
94574-28110-00
|
$38.99 | ||
|
Unavailable |
|||
|
#44
CHAIN JOINT
94680-06031-00
|
$3.95 | ||
|
Unavailable |
|||
