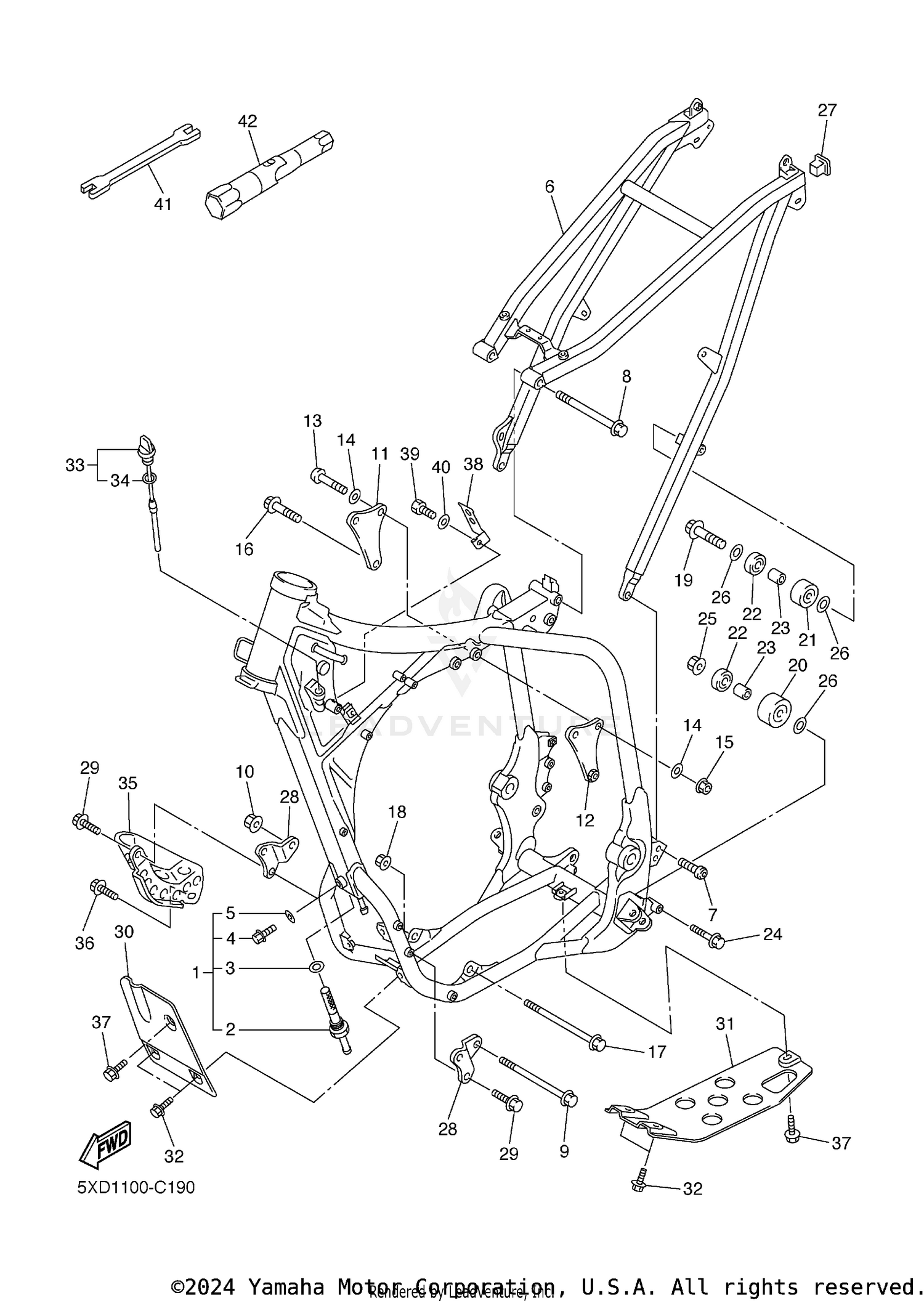

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
5XD-21101-00-00
|
$1,817.63 | ||
|
Unavailable |
|||
|
#2
NET, FILTER
5TA-21756-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-145M4-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95827-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-08119-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FRAME COMP.
5XD-21190-00-00
Superseded by 99999-03865-00
|
$571.99 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-08096-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WASHER BASED (90105-08022
90105-08120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95817-10160-00
|
$5.99 | ||
|
Unavailable |
|||
|
#10
NUT
90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, REAR UPPER 1
5XD-21425-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, REAR UPPER 1
5XD-21425-10-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, BUTTON HEAD
92017-10060-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-104R2-00
Superseded by 90201-08759-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
95817-10055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-10733-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
95027-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
TENSIONER
3JD-22178-10-00
Superseded by 3JD-22178-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
TENSIONER
4EW-22178-00-00
Superseded by 4EW-22178-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95027-08065-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG
90338-18176-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET, FRONT LOWER 1
5TA-21417-00-00
Superseded by 5XD-21417-50-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT,FLANGE (JN5)
95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PROTECTOR, ENGINE
5TA-21471-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GUARD, ENGINE 2
5TA-2147E-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLUG, OIL LEVEL
5TA-15362-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING
93210-08001-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
GUARD, ENGINE 1
5TA-2147A-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#37
BOLT, WITH WASHER
90119-06001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BRACKET, C.D.I. UNIT
5XD-21274-00-00
|
$4.00 | ||
|
Unavailable |
|||
|
#39
BOLT
97027-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#41
WRENCH, HEXAGON
5ET-28166-00-00
Superseded by 5ET-28166-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOX, SPARK PLUG
5TA-2814F-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
