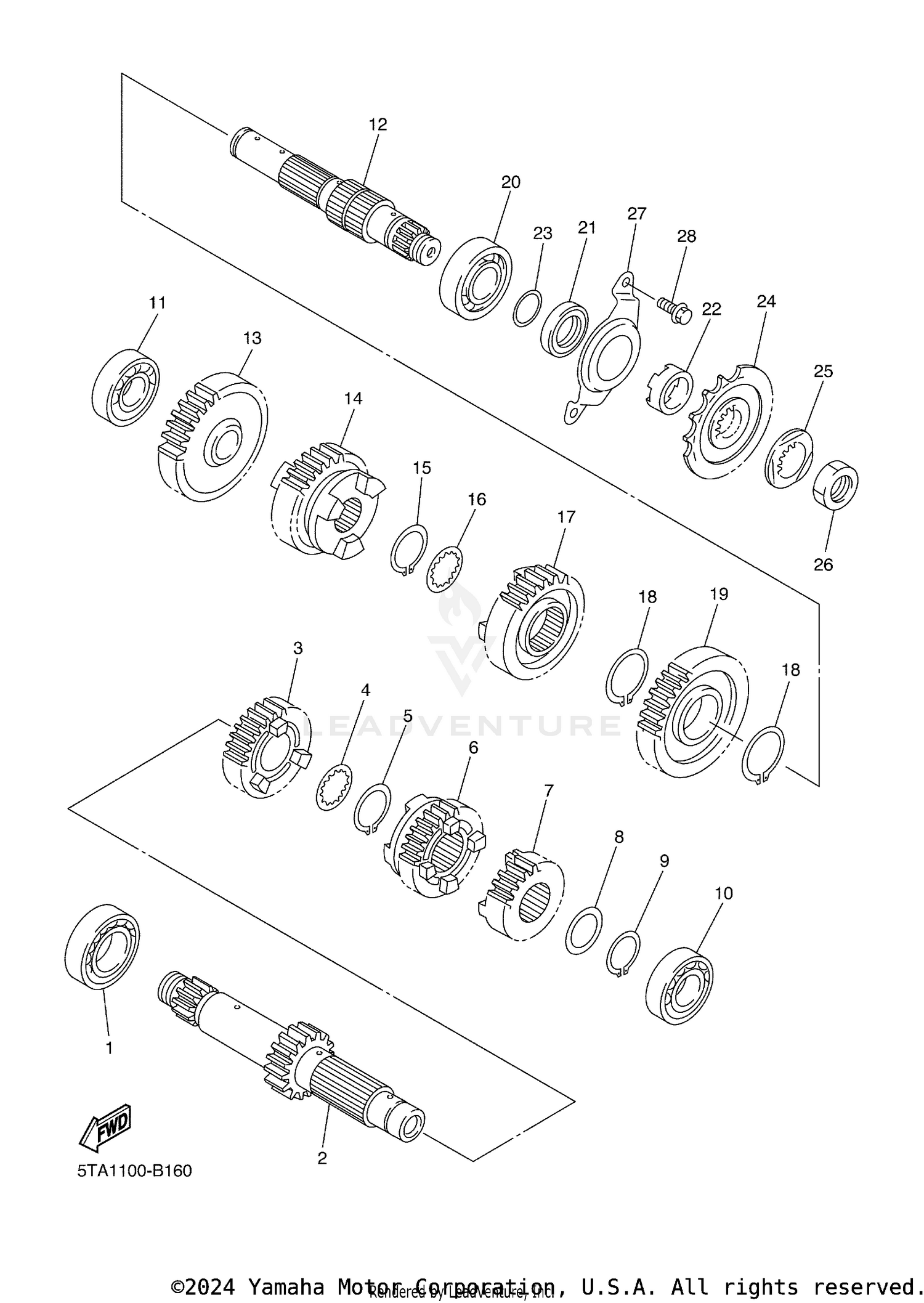

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93306-20532-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE, MAIN (14T)
5TA-17411-10-00
Superseded by 5TA-17411-20-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 4TH PINION (20T)
5TA-17141-10-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-21332-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (18T)
5TA-17131-10-00
Superseded by 5TA-17131-20-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 2ND PINION (16T)
5TA-17121-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-206L6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-00431-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-00426-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DRIVE AXLE ASSY
5TA-17402-00-00
Superseded by 5TA-17402-10-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 1ST WHEEL (27T)
5TA-17211-10-00
|
$96.99 | ||
|
Unavailable |
|||
|
#14
GEAR, 4TH WHEEL (21T)
5TA-17241-10-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
WASHER
90209-21332-00
|
$6.49 | ||
|
Unavailable |
|||
|
#17
GEAR, 3RD WHEEL (23T)
5TA-17231-00-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
93440-30077-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 2ND WHEEL (25T)
5TA-17221-10-00
|
$73.99 | ||
|
Unavailable |
|||
|
#20
BEARING
93306-20593-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93102-32480-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-2513F-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-22164-00
Superseded by 93210-22298-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPROCKET, DRIVE (14T)
9383E-14215-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, LOCK
90215-21001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-20001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, COVER
5GR-17471-00-00
Superseded by 5GR-17471-10-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
90105-06553-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
