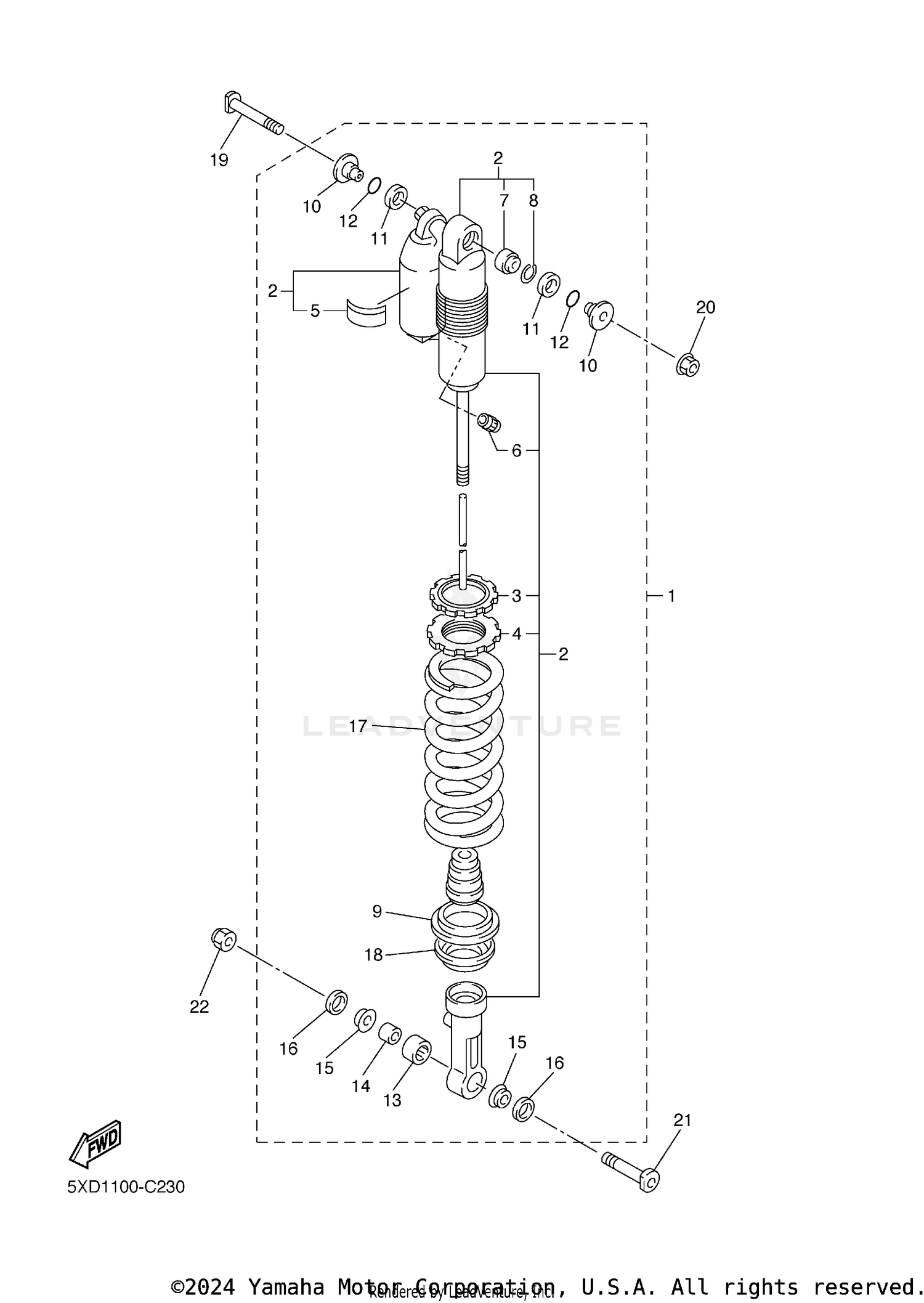

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
5XD-22210-00-00
|
$1,158.99 | ||
|
Unavailable |
|||
|
#2
DAMPER SUB ASSY
5XD-22201-00-00
|
$1,326.99 | ||
|
Unavailable |
|||
|
#3
GUIDE, SPRING 3
3SP-22234-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING UPPER
3SP-22213-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, WARNING
4AA-22259-80-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, AIR VALVE
509-23184-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, SHOCK ABSORBER LOWER
4JX-22226-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
5DH-23183-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, SPRING 2
5MV-22224-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, DISTANCE
5DH-22253-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#11
SEAL, DUST
3JE-22475-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, RING
4EW-22474-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
5UN-22176-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH
5MV-22184-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, DISTANCE
5MV-22253-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, DUST
5NY-22475-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING (K=52N/MM)
5UN-22212-50-00
|
$394.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, SPRING 1
5XE-22214-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT 2
5XE-22242-00-00
Superseded by 5XE-22242-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT 1
5NY-22241-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
