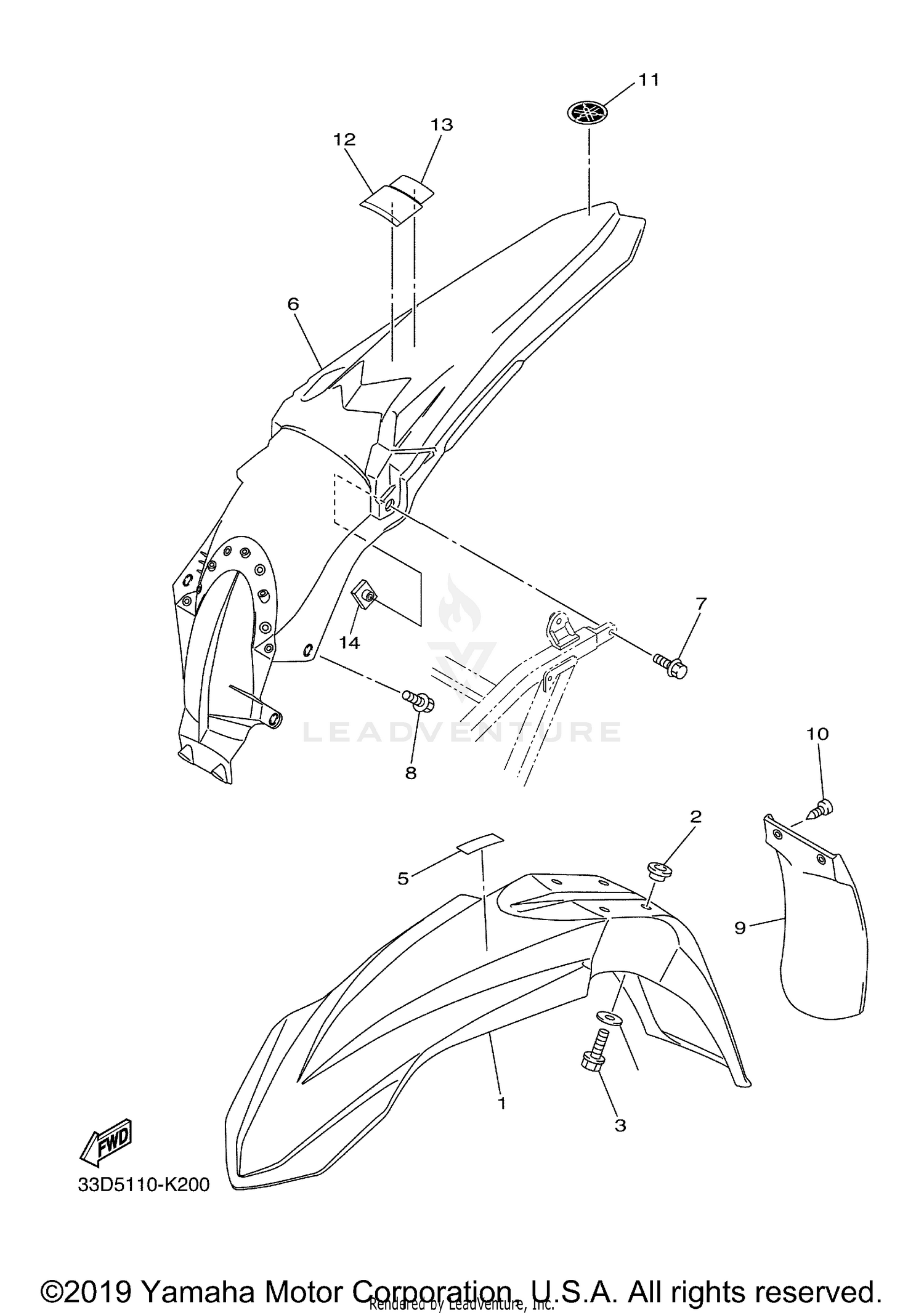

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
17D-21511-50-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT
17D-21511-60-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06259-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06127-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-06108-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, CAUTION
3FB-2415E-02-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP.
33D-21610-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP.
33D-21610-50-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-06100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-06170-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUARD, FLAP
33D-21642-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING
97702-60016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM
3C5-2411B-20-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
LABEL, CAUTION
5PA-2118K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, COMPETITION USA
17D-2812P-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, REAR FENDER
5XE-21635-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
