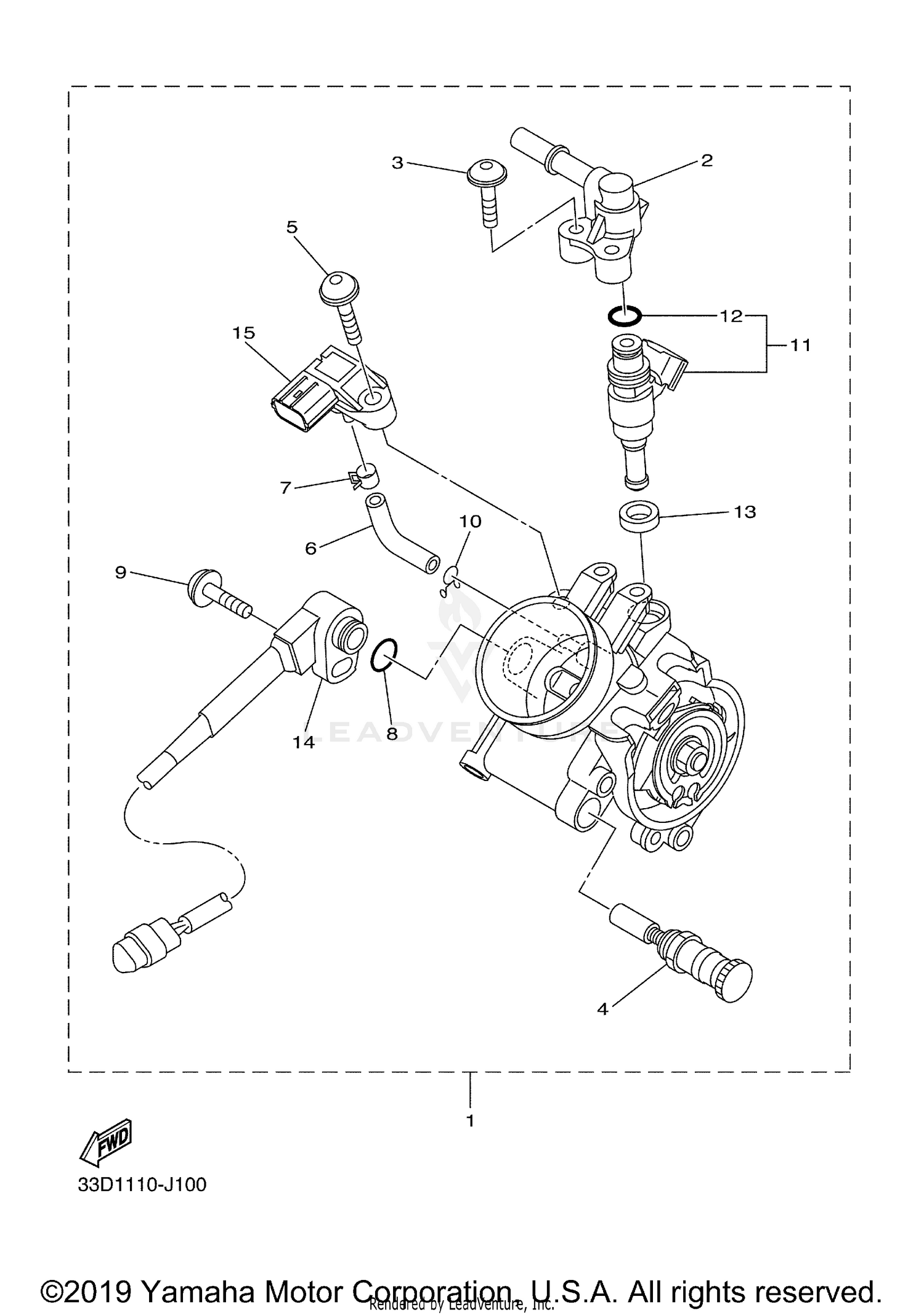

Intake 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY ASSY
33D-13750-00-00
Superseded by 33D-13750-02-00
|
$620.99 | ||
|
Unavailable |
|||
|
#2
PIPE
33D-13938-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, ROD
33D-14486-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUNGER, STARTER
33D-14171-00-00
Superseded by 33D-14171-01-00
|
$105.99 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
33D-14325-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE 1
33D-14348-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
33D-13577-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
33D-14562-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
33D-14216-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
3TJ-14137-40-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
INJECTOR
3B4-13761-00-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
5PS-14147-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-09002-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
THROTTLE SENSOR ASSY
33D-85885-00-00
Superseded by 33D-85885-02-00
|
$220.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR, PRESSURE
2C0-82380-00-00
Superseded by 1WS-82380-00-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
