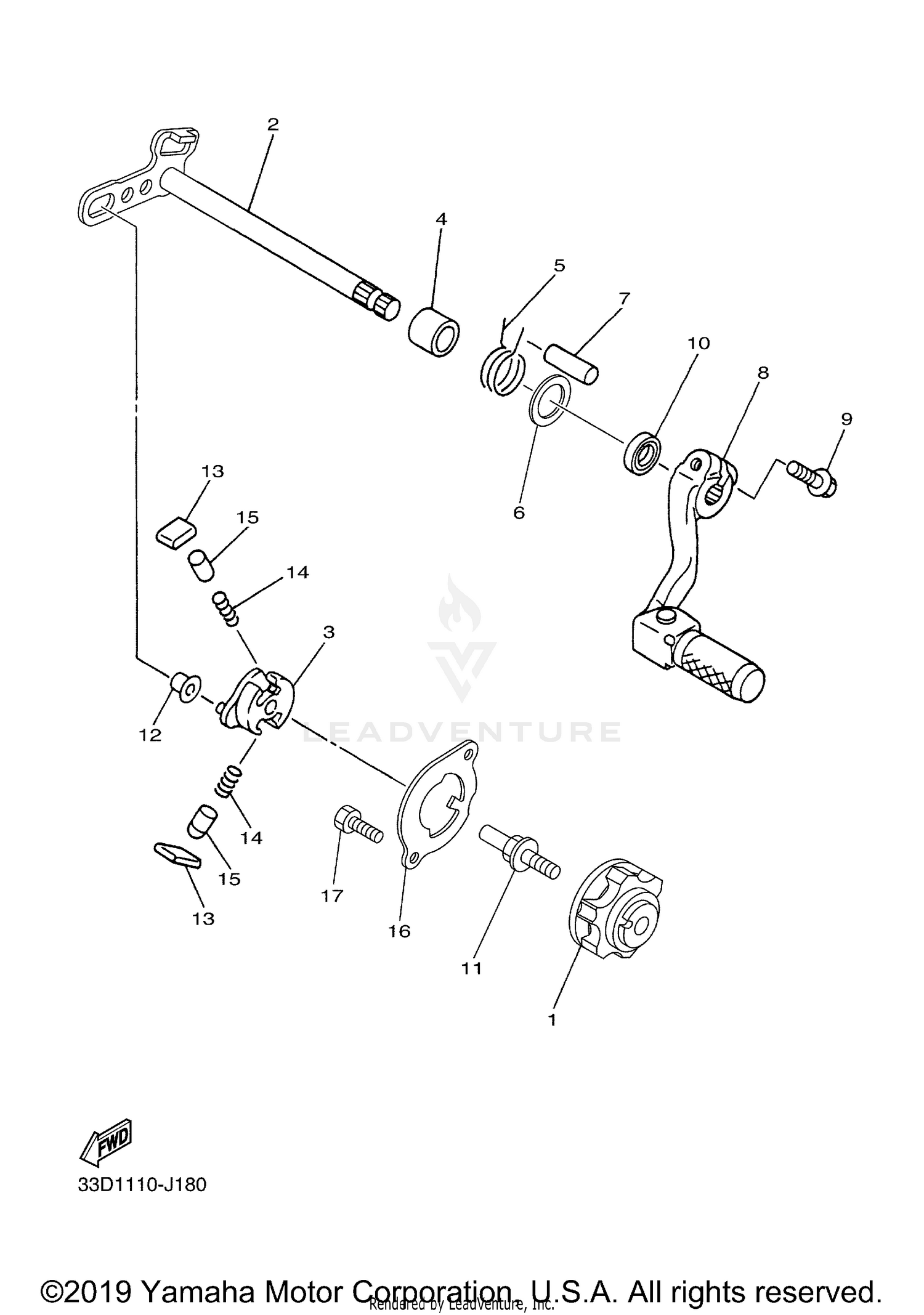

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEGMENT
1C3-18185-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHIFT SHAFT ASSY
33D-18101-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER, SHIFT 2
18P-18122-00-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-124F4-00
Superseded by 90387-12033-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-29021-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-127E1-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
93608-33002-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIFT PEDAL ASSY
2S2-18110-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-06127-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93102-12224-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, SHIFT
3XJ-18173-10-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROLLER, SHIFT LEVER
3XJ-18178-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAWL, SHIFTER
3XJ-18182-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, COMPRESSION
90501-052G5-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, PAWL
3XJ-18184-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE, SHIFT
5TJ-18172-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90101-06041-00
Superseded by 90101-06042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
