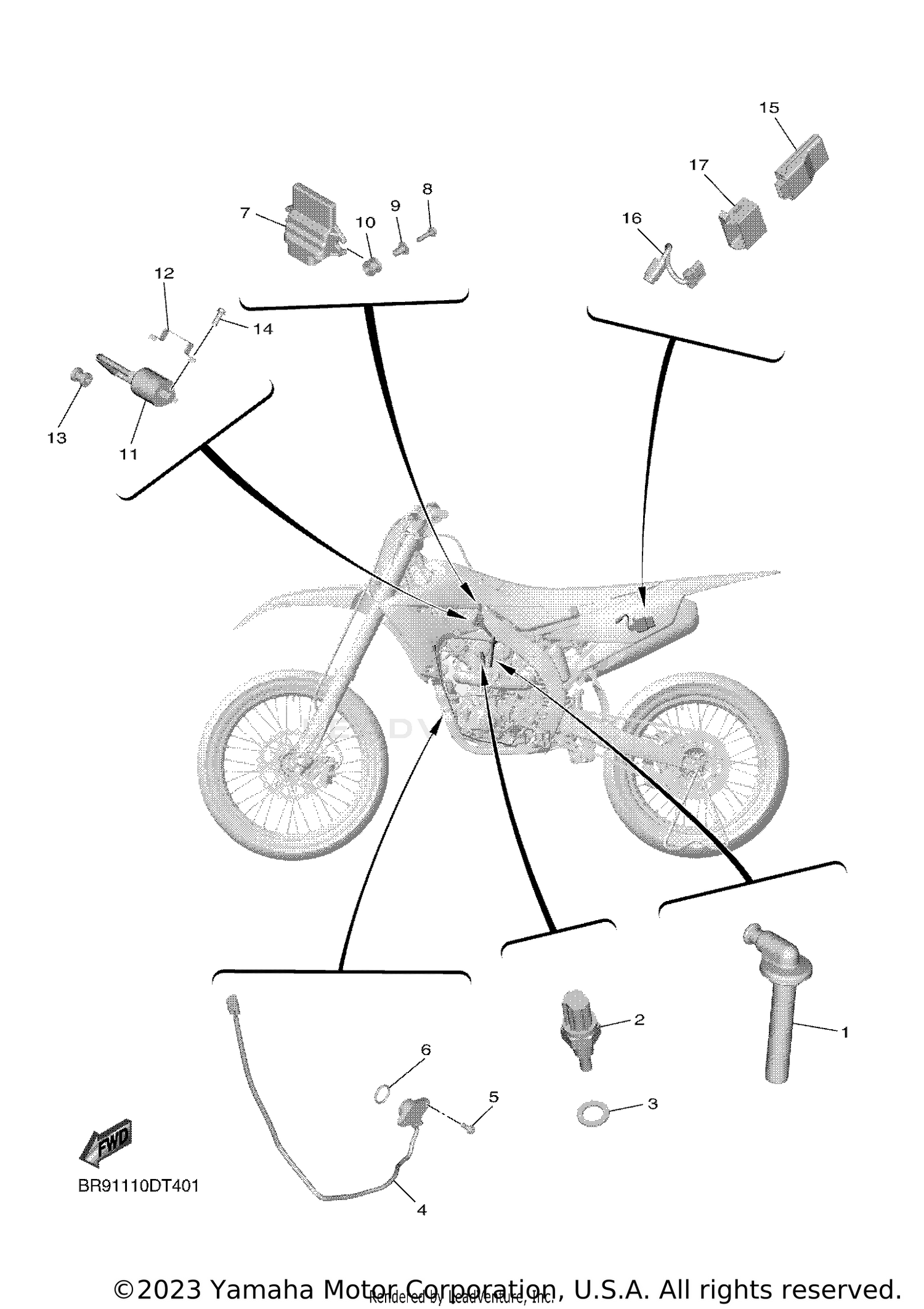

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLUG CAP ASSY
33D-82370-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
90430-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEUTRAL SWITCH ASSY
B11-82540-00-00
Superseded by B11-82540-01-00
|
$55.99 | ||
|
Unavailable |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-05062-00
Superseded by 90110-05028-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-21001-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
ENGINE CONTROL UNIT ASSY
BR9-8591A-00-00
|
$553.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-05005-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-05048-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-13029-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
IGNITION COIL ASSY
BR9-82310-00-00
Superseded by BR9-82310-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CORE, SIDE
BR9-B231U-00-00
|
|||
|
Unavailable |
|||
|
#13
GROMMET
90480-11015-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
COMMUNICATION CONT. UNIT ASSY
BR9-85810-00-00
Superseded by BR9-85810-02-00
|
$1,067.99 | ||
|
Unavailable |
|||
|
#16
WIRE, LEAD
BR9-85721-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND
BR9-85546-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
