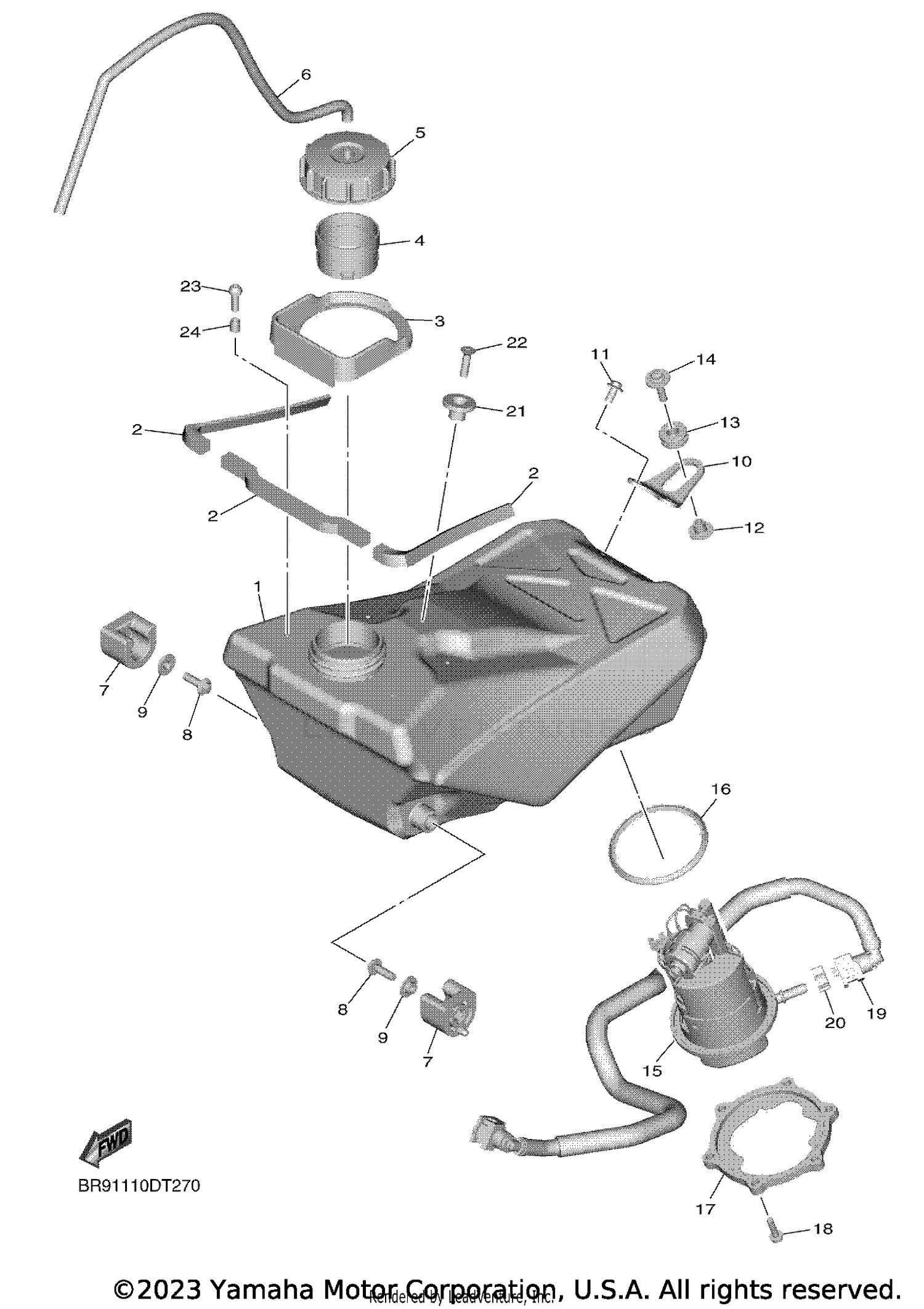

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
BR9-24110-00-00
|
$332.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, PLATE 6
2D1-2414R-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
MOLD, FUEL TANK
BR9-24188-00-00
Superseded by BR9-24188-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, FILLER
BR9-24114-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP ASSY
BR9-24610-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE (L580)
90445-09008-00
Superseded by 90445-098B3-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, FUEL TANK 1
BR9-24191-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-06203-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-06170-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER
BR9-2419A-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-06064-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-066Y6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-10289-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06271-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUEL PUMP COMP.
33D-13907-01-00
Superseded by 33D-13907-02-00
|
$515.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
33D-24486-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, FUEL PUMP
BR9-24491-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
90110-05058-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE, FUEL 1
BR9-13971-00-00
Superseded by BR9-13971-01-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP 1
33D-24135-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, SEAT
4EW-2412F-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, COUNTERSUNK
90151-06005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEX. SOCKET BUTTON
90111-06171-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-06284-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
