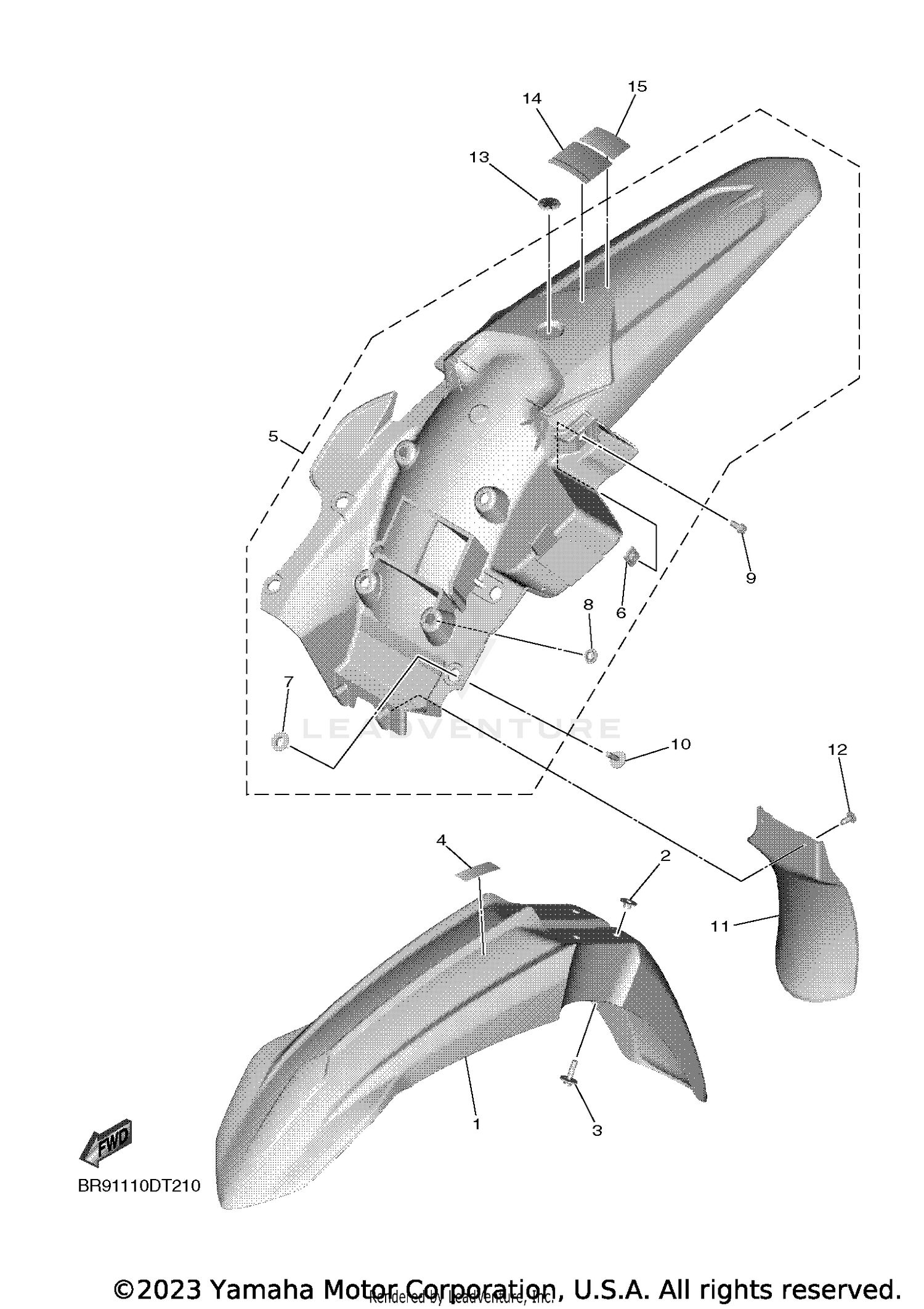

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
BR9-21511-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT
BR9-21511-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06259-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06268-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
LABEL, CAUTION
3FB-2415E-02-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
REAR FENDER COMP.
BR9-21610-10-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
REAR FENDER COMP.
BR9-21610-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, REAR FENDER
5XE-21635-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
5BE-21749-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-08086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-06100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06268-00
|
$2.15 | ||
|
Unavailable |
|||
|
#11
GUARD, FLAP
3D7-21642-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING
97702-60016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUNING FORK MARK
5FK-2175C-30-00
Superseded by 5FK-2175C-31-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, CAUTION
5PA-2118K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, COMPETITION USA
17D-2812P-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
