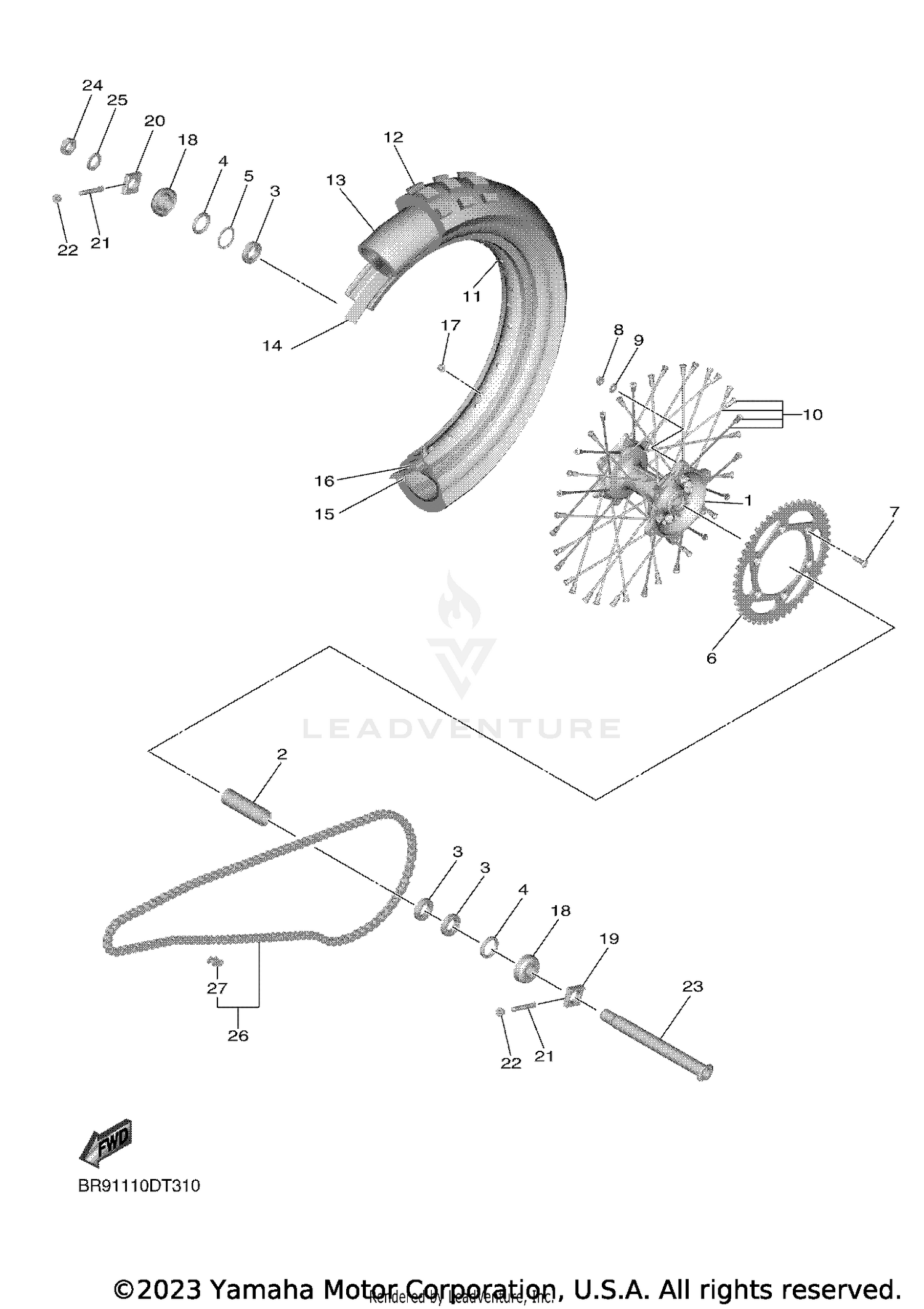

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
17D-25311-00-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, BEARING
17D-25317-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-90510-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-32337-00
Superseded by 93102-32M07-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
99009-42700-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPROCKET, DRIVEN (49T)
17D-25449-50-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPROCKET, DRIVEN (47T)
17D-25447-50-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPROCKET, DRIVEN (48T)
17D-25448-50-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPROCKET, DRIVEN (51T)
17D-25451-50-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPROCKET, DRIVEN (52T)
17D-25452-50-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPROCKET, DRIVEN (50T)
17D-25450-50-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
90109-081G1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-08008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-08043-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPOKE SET, REAR
34P-25304-00-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RIM (2.15-19)
94421-19018-00
|
$351.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RIM (2.15-19)
94421-19016-00
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
TIRE (120/80-19 63M MX3S)
94112-19012-00
|
$268.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE (110/90 110/100-19TR4)
94211-19273-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, RIM (110/90 110/100-19)
94311-19155-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER, BEAD
3JE-25394-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
4XM-25364-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-08608-00
Superseded by 90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR ASSY
17D-2530S-00-00
Superseded by 17D-2530S-01-00
|
$32.99 | ||
|
Unavailable |
|||
|
#19
PULLER, CHAIN 1
1SL-25388-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PULLER, CHAIN 2
1SL-25389-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90101-08006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-08019-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
AXLE, WHEEL
17D-25381-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SELF-LOCKING
90185-22011-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-22023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CHAIN(DID 520DMA4
94A40-04114-00
Superseded by 9Y582-36113-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
JOINT, CHAIN (DID520DM G&B-RJ
94682-28001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
