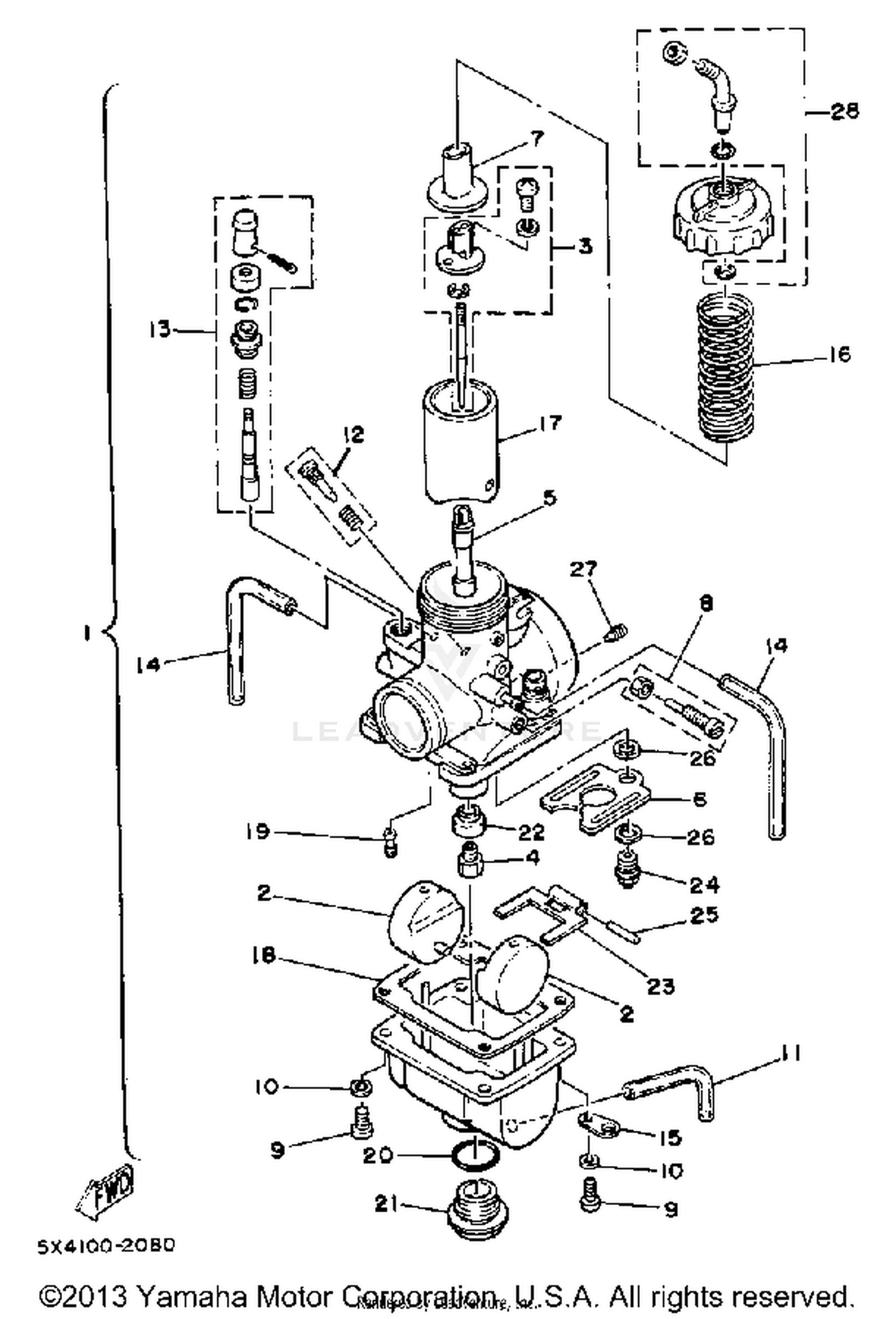

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
5X4-14101-00-00
|
$244.99 | ||
|
Unavailable |
|||
|
#2
FLOAT
310-14185-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET (6F21)
239-W1418-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#4
JET, MAIN (#260)
137-14143-52-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#270)
137-14143-54-A1
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#280)
137-14143-56-A0
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NOZZLE, MAIN Q-0
239-14141-50-00
|
$18.90 | ||
|
Unavailable |
|||
|
#6
PLATE
483-14146-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING
509-14136-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#8
THROTTLE SCREW SET
204-W1411-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE
2J2-14196-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
AIR SCREW SET
23X-14104-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STARTER PLNGR SET
737-W1414-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#14
HOSE
310-14197-00-00
Superseded by 89A-14987-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE
313-14146-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#16
SPRING, THROTTLE VALVE
363-14131-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#17
VALVE, THROTTLE 1
3R6-14112-25-00
|
$75.66 | ||
|
Unavailable |
|||
|
#18
GASKET, FLOAT CHAMBER
483-14184-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, PILOT ( 80)
193-14142-80-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
2K6-14147-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, SCREW
2K6-14115-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#22
WASHER, MAIN JET
3R3-14153-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#23
ARM, FLOAT
310-14187-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#24
NEEDLE VALVE SET (#3.3)
24X-14107-33-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, FLOAT
537-14186-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, NEEDLE VALVE
239-14195-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PILOT JET, AIR (2.0)
239-14172-20-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
ADJUSTER SET
3R3-W1415-00-00
|
$16.96 | ||
|
Unavailable |
|||
