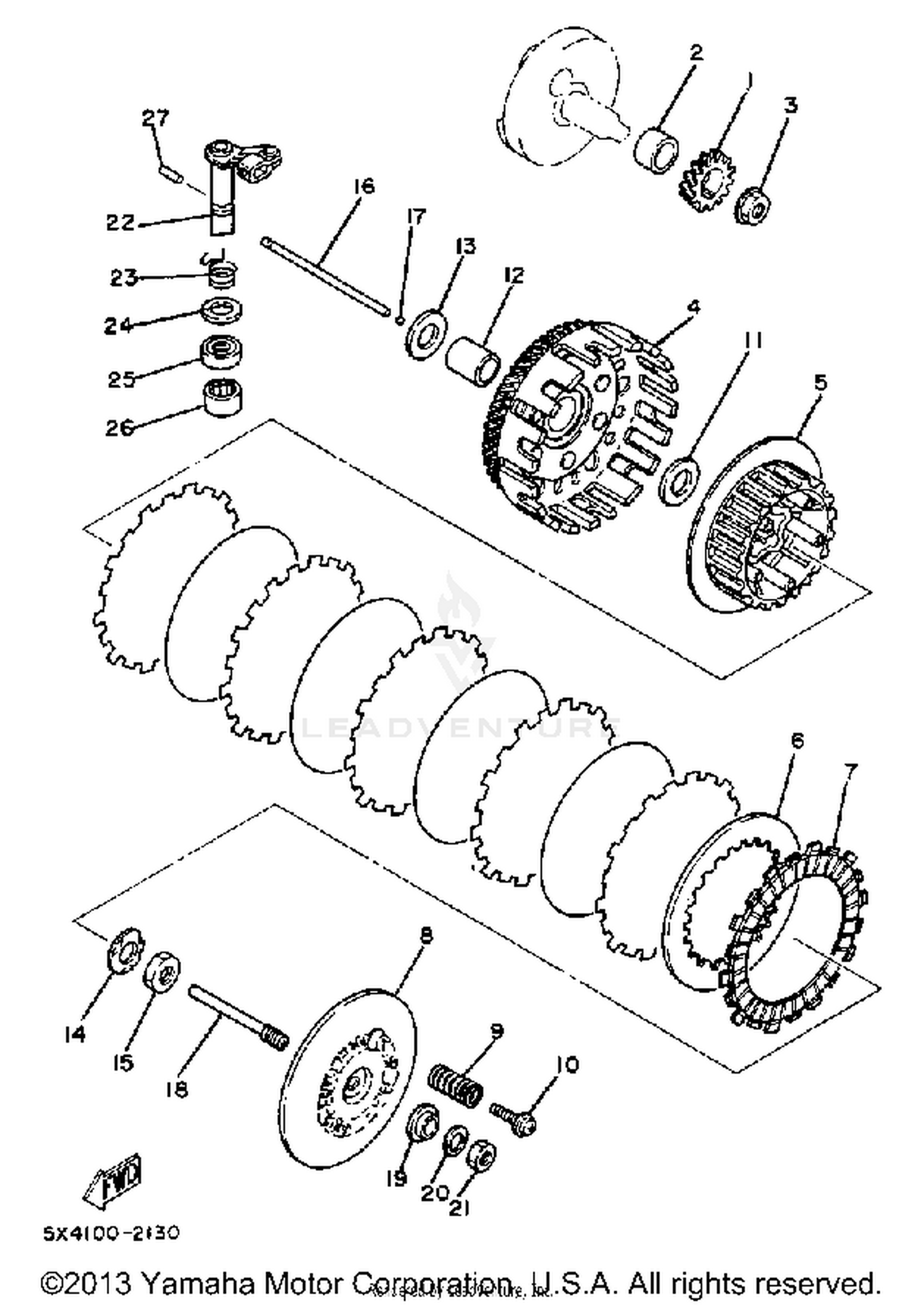

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRI DRIVE
5X4-16111-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-202F0-00
|
$20.99 | ||
|
Unavailable |
|||
|
#3
NUT, SPEC''L SHAPE
90179-12373-00
|
$9.99 | ||
|
Unavailable |
|||
|
#4
PRI DRVN GEAR
5X4-16150-00-00
|
$168.99 | ||
|
Unavailable |
|||
|
#5
BOSS, CLUTCH
5X4-16371-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH 1
5X4-16324-00-00
Superseded by 336-16324-10-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
PLATE, FRICTION
5X4-16321-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#8
PLATE, PRESSURE 1
1W1-16351-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#9
SPRING, COMPRESSION
90501-20361-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, WITH WASHER
90159-05011-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-174E1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
90560-17214-00
|
$7.99 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-174E1-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
WASHER, LOCK
90215-14204-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90170-14171-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, PUSH 2
353-16357-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD, PUSH 1
1W1-16356-02-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, PUSH
30X-16358-00-00
Superseded by 1W1-16358-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
PUSH LEVER ASSEMBLY
3R3-16380-02-00
|
$84.99 | ||
|
Unavailable |
|||
|
#23
SPRING, TORSION
90508-14426-00
|
$7.99 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-14217-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93104-14059-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING
93315-21429-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, DOWEL
93604-16092-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
