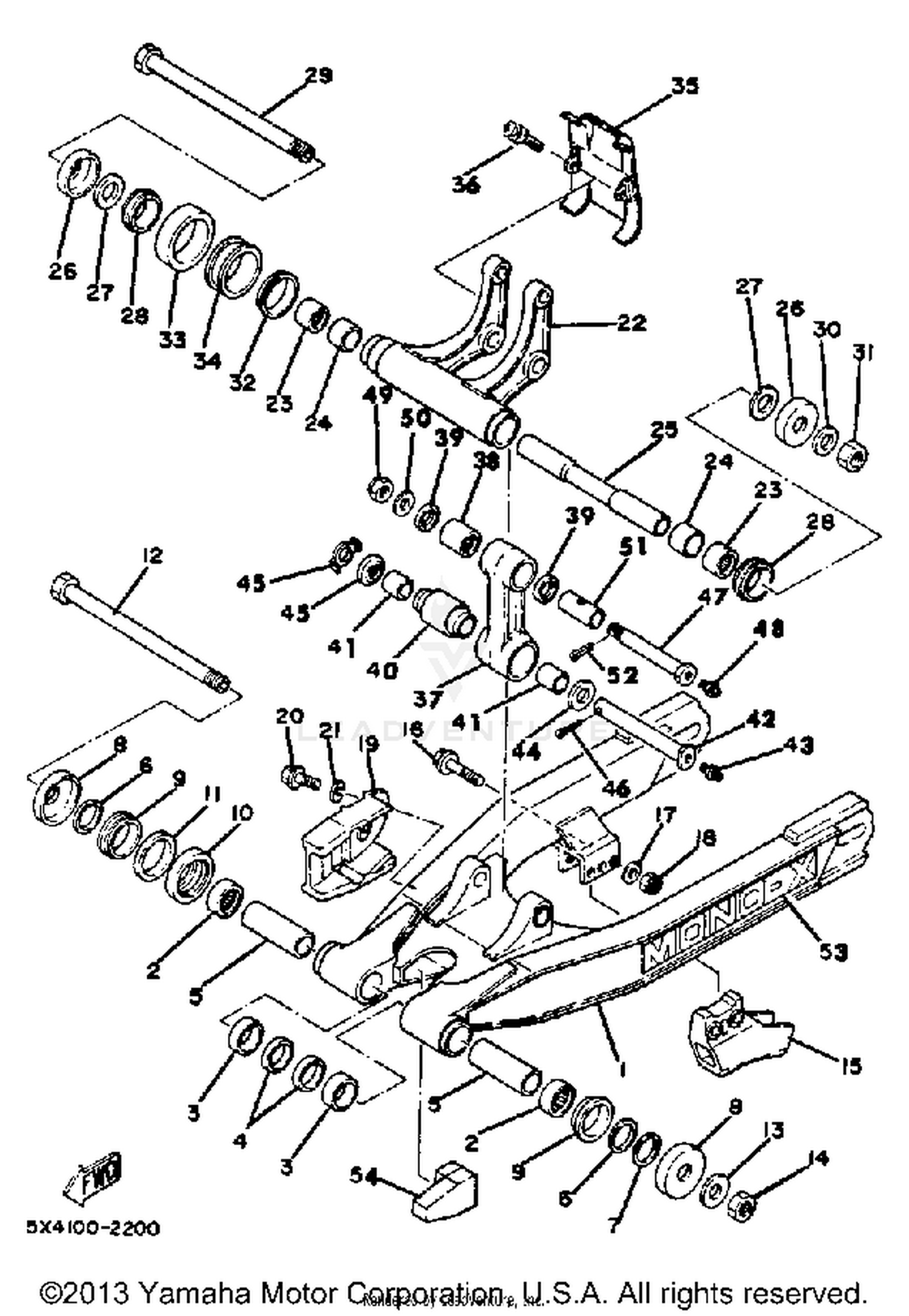

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
5X4-22110-00-35
|
$437.99 | ||
|
Unavailable |
|||
|
#2
BEARING, CYLINDER.#17
93317-22208-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, SPEC''L NYLON
90386-22097-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL, SDO-TYPE
93109-22018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, SOLID
90380-16077-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-22680-00
|
$4.40 | ||
|
Unavailable |
|||
|
#7
SHIM (0.3T)
240-22127-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, THRUST 1
2K6-22128-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL (35-41-8)
93108-35004-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, GUARD
5X6-22151-10-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-440G3-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, PIVOT
5X4-22141-01-00
|
$116.99 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-160F6-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#15
SUPPORT, CHAIN
5X4-22199-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95811-08045-00
Superseded by 95814-08045-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PROTECTOR, CHAIN
5X6-22147-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95811-06020-00
Superseded by 95817-06020-00
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
ARM, RELAY
5X4-2217A-00-00
|
$174.99 | ||
|
Unavailable |
|||
|
#23
BEARING, CYLINDER.#17
93317-22208-00
|
$45.99 | ||
|
Unavailable |
|||
|
#24
BUSH, SPEC''L NYLON
90386-22097-00
|
$22.99 | ||
|
Unavailable |
|||
|
#25
COLLAR
90387-163F6-00
|
$24.99 | ||
|
Unavailable |
|||
|
#26
COVER, THRUST 1
2K6-22128-01-00
|
$31.99 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
90201-22680-00
|
$4.40 | ||
|
Unavailable |
|||
|
#28
OIL SEAL (35-41-8)
93108-35004-00
|
$15.49 | ||
|
Unavailable |
|||
|
#29
SHAFT, PIVOT
5X4-22141-01-00
|
$116.99 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-160F6-00
|
$7.99 | ||
|
Unavailable |
|||
|
#31
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING LWR
5X6-22159-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#33
SEAL, GUARD
5X6-22151-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#34
SEAL, GUARD
5X6-22152-00-00
|
$7.72 | ||
|
Unavailable |
|||
|
#35
PROTECTOR
5X4-21652-00-00
|
$12.50 | ||
|
Unavailable |
|||
|
#36
SCREW, WITH WASHER
90159-05018-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
ROD, CONNECTING 1
5X4-2217F-00-00
|
$32.45 | ||
|
Unavailable |
|||
|
#38
BEARING, CYLINDER #15
93315-22046-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
OIL SEAL
93109-20029-00
Superseded by 93109-20076-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BUSH 1
5X6-22123-00-00
|
$19.14 | ||
|
Unavailable |
|||
|
#41
BUSH, BIMETAL FORM
90384-16156-00
|
$5.99 | ||
|
Unavailable |
|||
|
#42
PIN, SPEC''L SHAPE
90249-16153-00
|
$14.99 | ||
|
Unavailable |
|||
|
#43
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#44
COVER, DUST
5X6-2217H-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#45
WASHER, LOCK
90215-16198-00
|
$3.18 | ||
|
Unavailable |
|||
|
#46
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT
90109-12646-00
|
$21.99 | ||
|
Unavailable |
|||
|
#48
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Unavailable |
|||
|
#49
NUT, SELF-LOCKING
90185-12119-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BUSH, SOLID
90380-14095-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#53
EMBLEM, REAR ARM
5X6-2218A-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#54
DAMPER 1
5X4-2214F-00-00
|
$6.49 | ||
|
Unavailable |
|||
