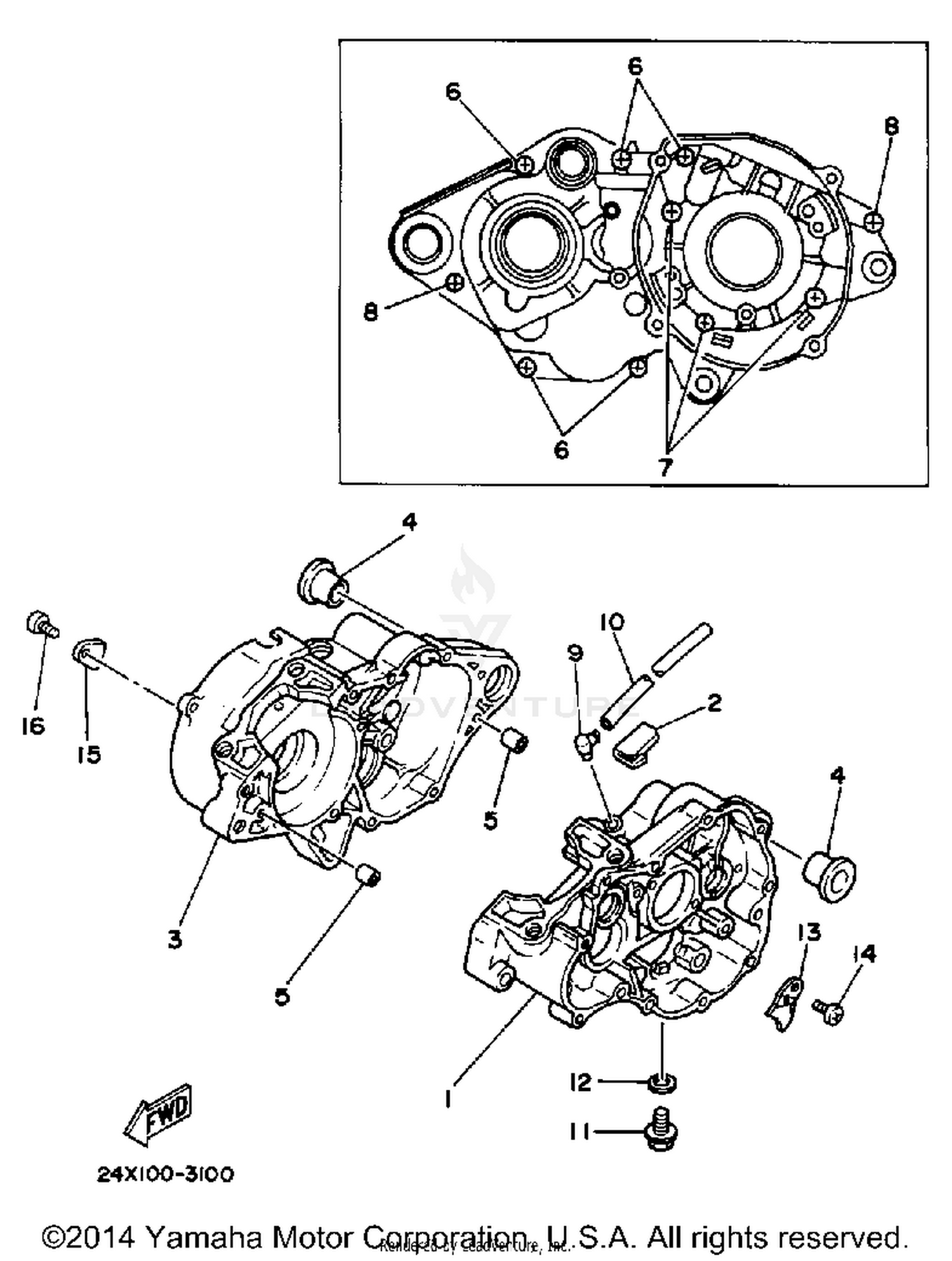

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
24X-15111-00-00
|
$286.99 | ||
|
Unavailable |
|||
|
#2
SEAL, CRANKCASE
5X4-15379-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#3
CRANKCASE 2
24X-15121-00-00
|
$441.99 | ||
|
Unavailable |
|||
|
#4
COLLAR
90387-16781-00
|
$14.49 | ||
|
Unavailable |
|||
|
#5
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
91316-06035-00
Superseded by 91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91316-06040-00
Superseded by 91317-06040-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91316-06050-00
Superseded by 91317-06050-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTOR, SUCTION PIPE
353-13115-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE
90445-08376-00
Superseded by 90445-08684-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, STRAIGHT SCREW
90340-12097-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER
3R3-15128-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
92501-08010-00
Superseded by 98507-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER
4V4-15118-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
