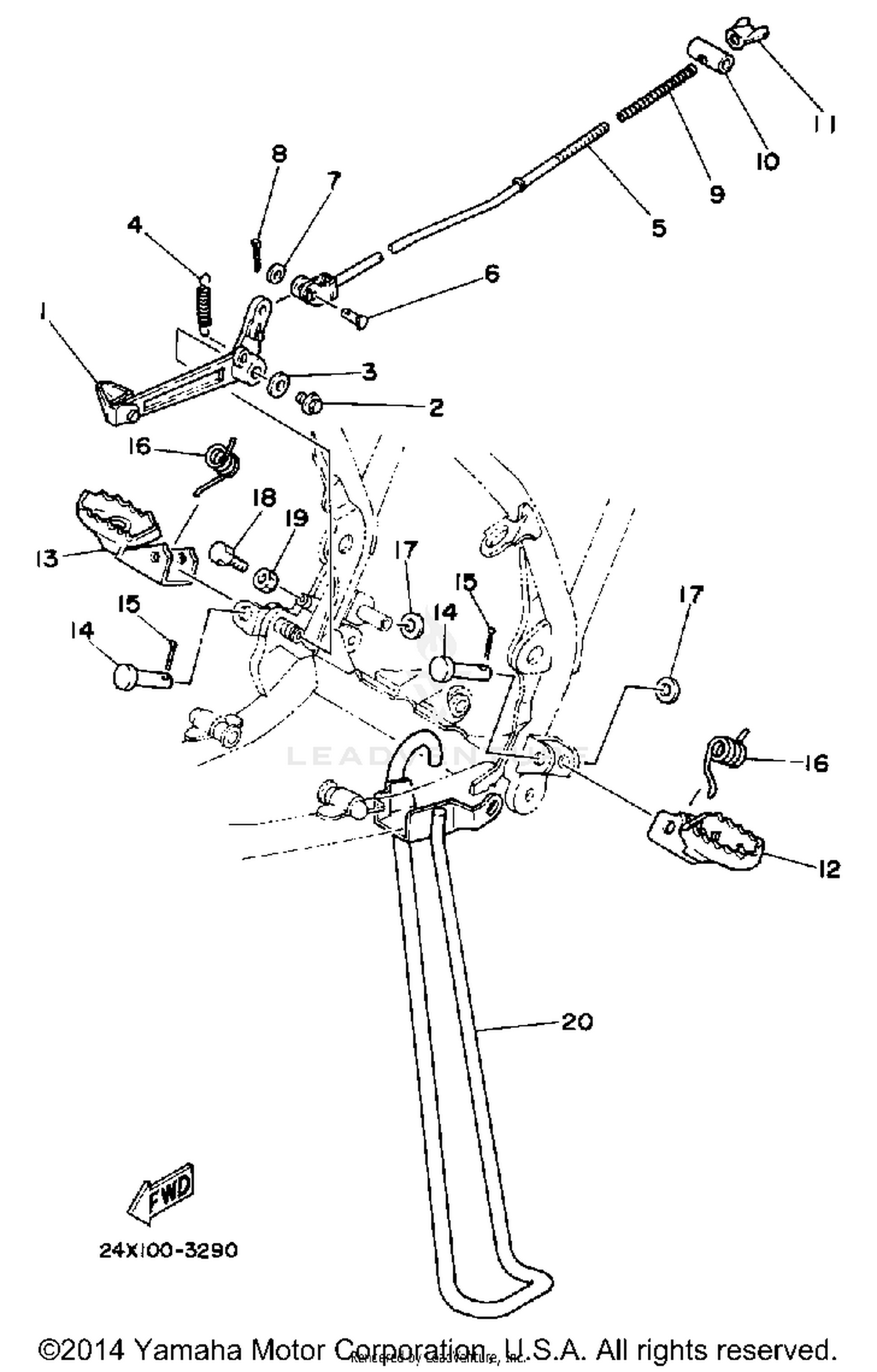

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
24X-27200-00-00
|
$45.40 | ||
|
Unavailable |
|||
|
#
PEDAL, BRAKE
55Y-27200-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-20192-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, BRAKE
24X-27231-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#
ROD, BRAKE
39W-27231-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#6
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, WING
90175-06016-00
Superseded by 90175-06013-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
FOOTREST 1
23X-27411-02-00
Superseded by 23X-27411-03-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FOOTREST 2
23X-27421-03-00
Superseded by 23X-27421-04-00
|
$37.99 | ||
|
Unavailable |
|||
|
#14
PIN, CLEVIS
90240-10101-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, TORSION
90508-20583-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-10119-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90101-06288-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT
90101-06478-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAND, SIDE
39W-27311-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#
STAND, SIDE
24X-27311-00-00
|
$56.99 | ||
|
Unavailable |
|||
