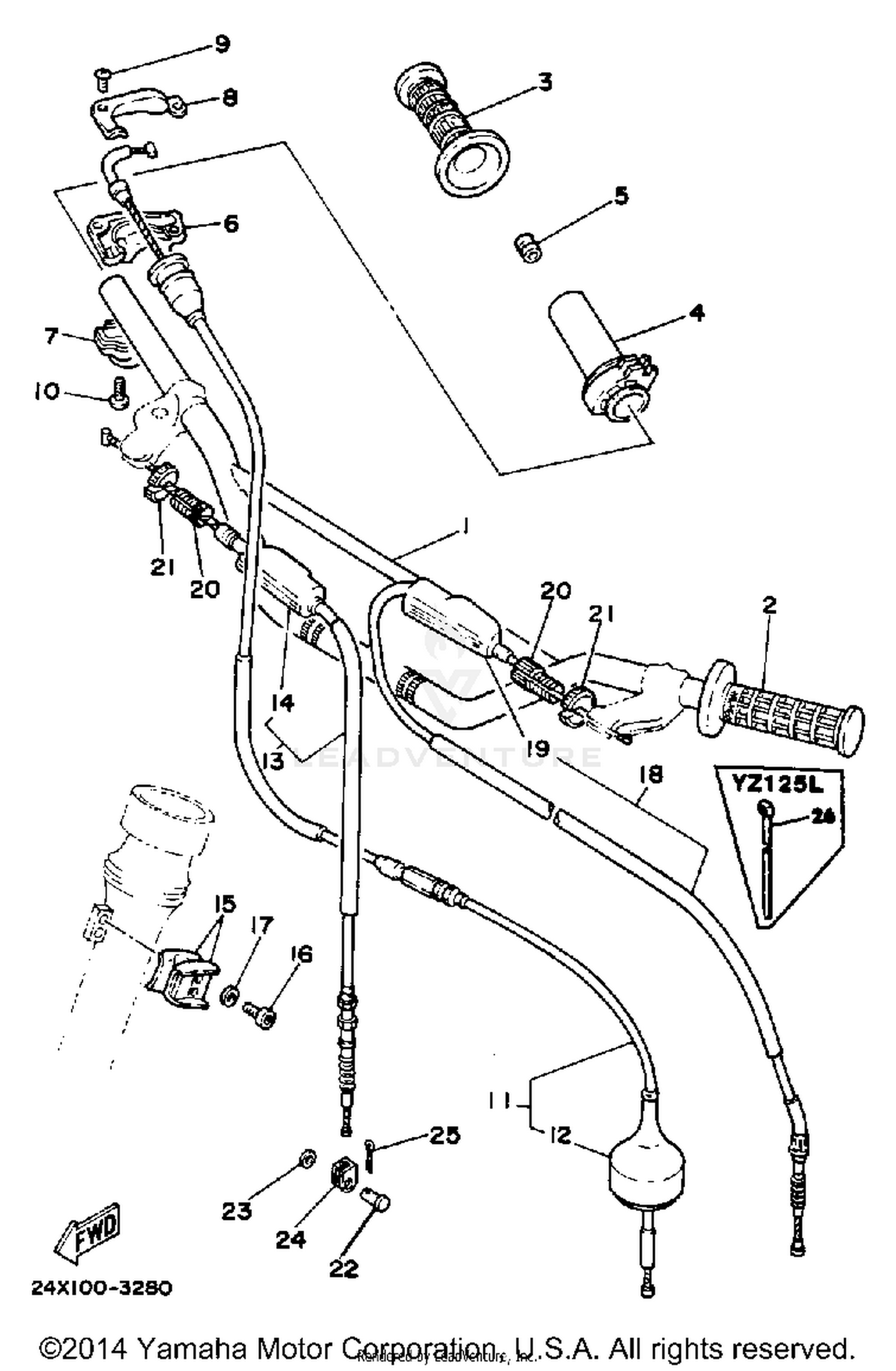

Handlebar Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
23X-26111-00-00
Superseded by 1LN-26111-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#2
GRIP (LEFT)
4V4-26241-01-00
Superseded by 1LX-26241-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP (RIGHT)
1LX-26242-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, THROTTLE GUIDE
23X-26243-00-00
Superseded by 23X-26243-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG
90338-12192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, GRIP UPPER
23X-26281-00-00
Superseded by 23X-26281-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, GRIP UNDER
431-26282-01-98
Superseded by 431-26282-03-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, WIRE
5X2-2628H-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98586-05016-00
Superseded by 90157-05M19-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE, THROTTLE 1
24X-26311-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#
CABLE, THROTTLE 1
23X-26311-01-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE, BRAKE
24X-26341-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#
CABLE, BRAKE
5X6-26341-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90465-16258-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91311-06016-00
Superseded by 91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE, CLUTCH
39W-26335-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#
CABLE, CLUTCH
24X-26335-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#19
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#20
BOLT
90123-08090-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90179-08401-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PIN
91701-06018-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
JOINT, CABLE
156-26347-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-14117-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
