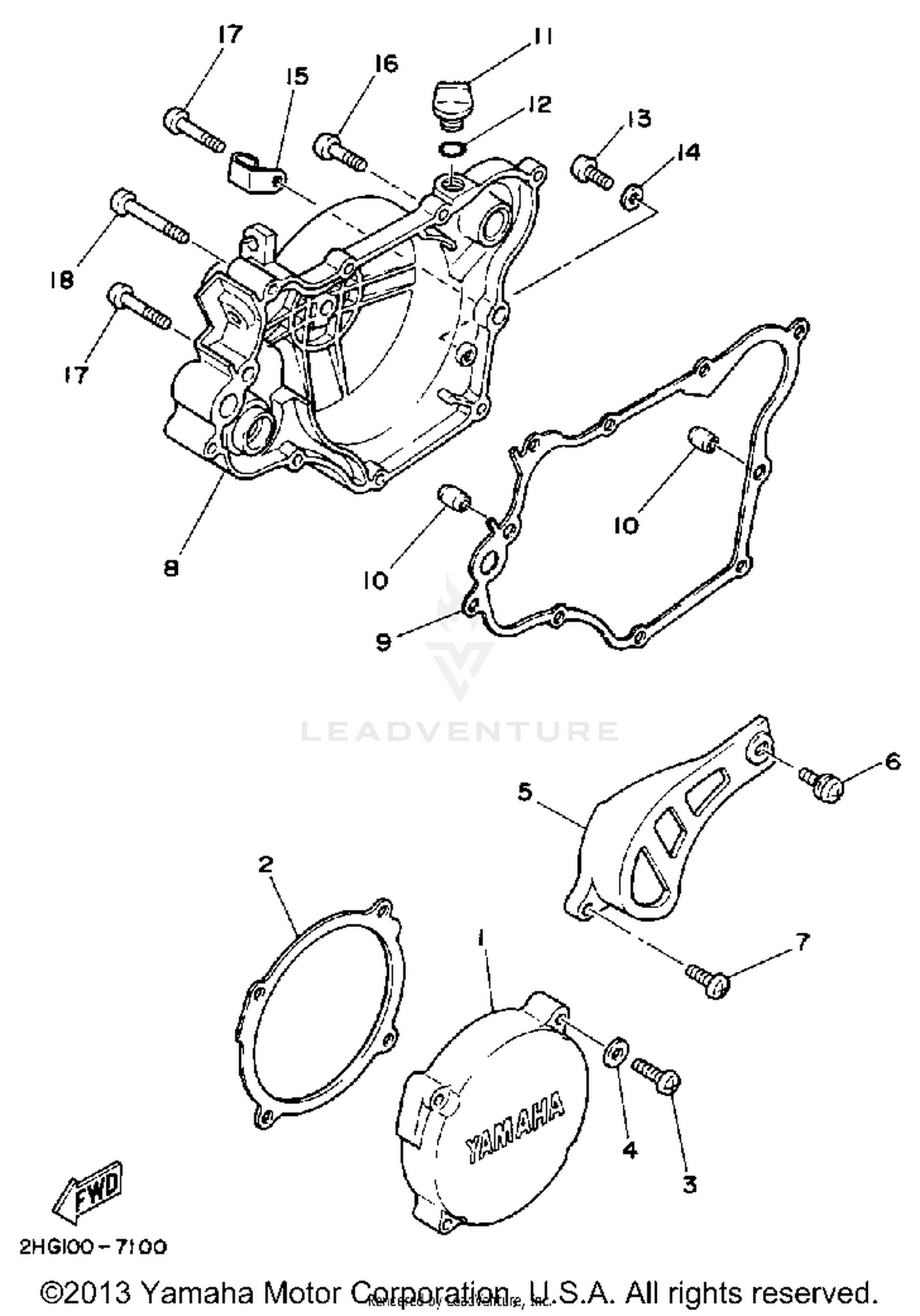

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
1LX-15411-00-00
|
$43.24 | ||
|
Unavailable |
|||
|
#2
GASKET, CRCS COVERCOVER 1
1LX-15451-01-00
Superseded by 1LX-15451-11-00
|
$11.99 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
98516-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CRANKCASE R
1LX-15421-01-00
|
$40.99 | ||
|
Unavailable |
|||
|
#6
SCREW, WITH WASHER
90159-06084-00
Superseded by 90159-06082-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CRANKCASE 3
1LX-15431-00-00
|
$209.99 | ||
|
Unavailable |
|||
|
#9
GASKET, CRANKCASE COVER 3
1LX-15462-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, OIL LEVEL
1G8-15362-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
98506-06008-00
Superseded by 98517-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
90430-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER
1LX-15378-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98506-06035-00
Superseded by 98507-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98506-06045-00
Superseded by 98507-06045-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
