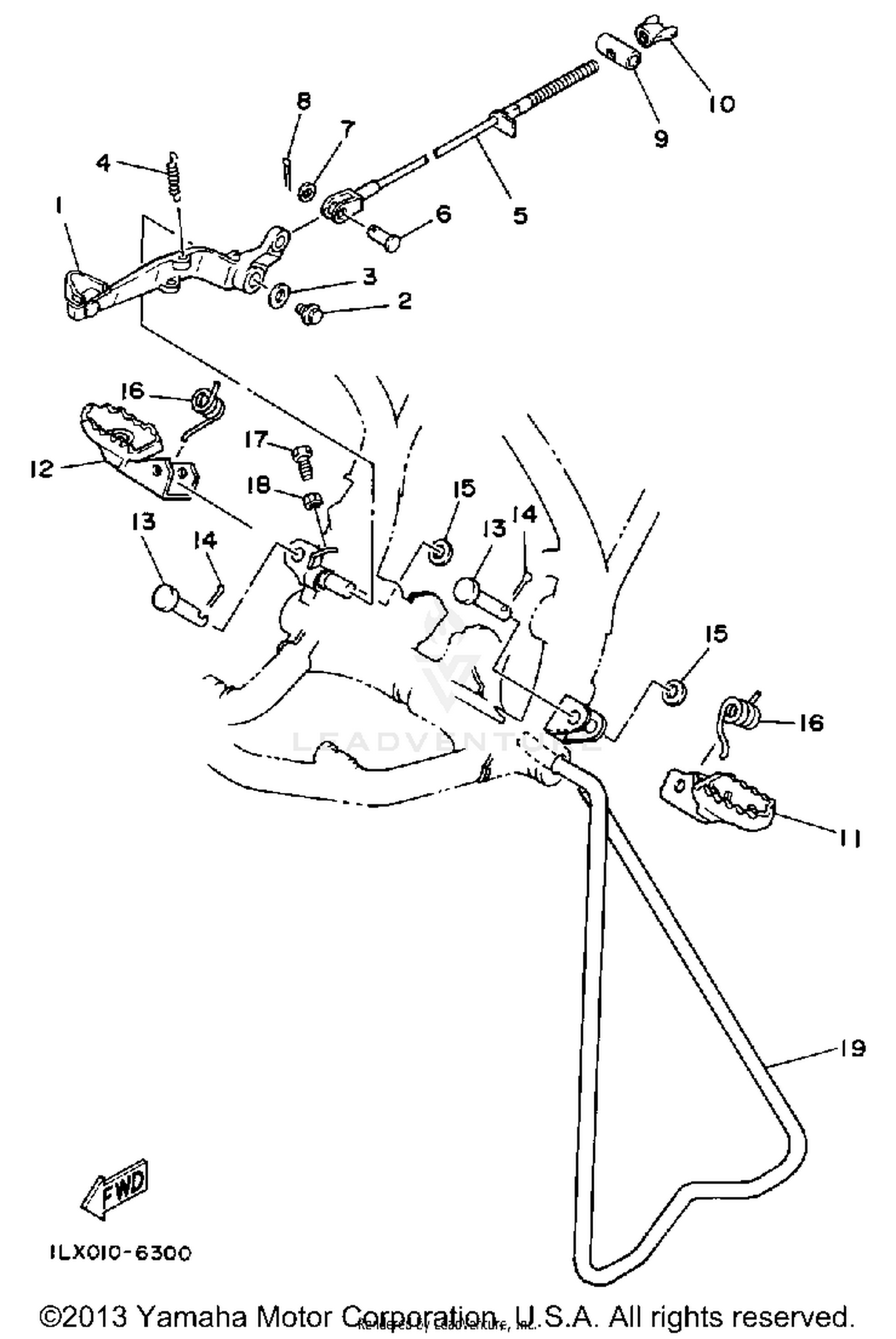

Stand-footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
1LX-27200-01-00
|
$90.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLG.(SMALL HEAD)
95023-08012-00
Superseded by 95024-08012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-16391-00
|
$3.70 | ||
|
Unavailable |
|||
|
#5
CABLE, BRAKE
39X-26351-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#6
PIN, CLEVIS
91790-08021-00
|
$3.40 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
90249-12008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, WING
90175-06016-00
Superseded by 90175-06013-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
FOOTREST 1
23X-27411-02-00
Superseded by 23X-27411-03-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FOOTREST 2
23X-27421-03-00
Superseded by 23X-27421-04-00
|
$37.99 | ||
|
Unavailable |
|||
|
#13
PIN, CLEVIS
90240-10117-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-10119-00
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, TORSION
90508-20583-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, HEXAGON
90153-06038-00
Superseded by 90153-06008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
95316-06700-00
Superseded by 95317-06700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAND, SIDE
1LX-27311-00-00
Superseded by 4LB-27311-00-00
|
$62.99 | ||
|
Unavailable |
|||
