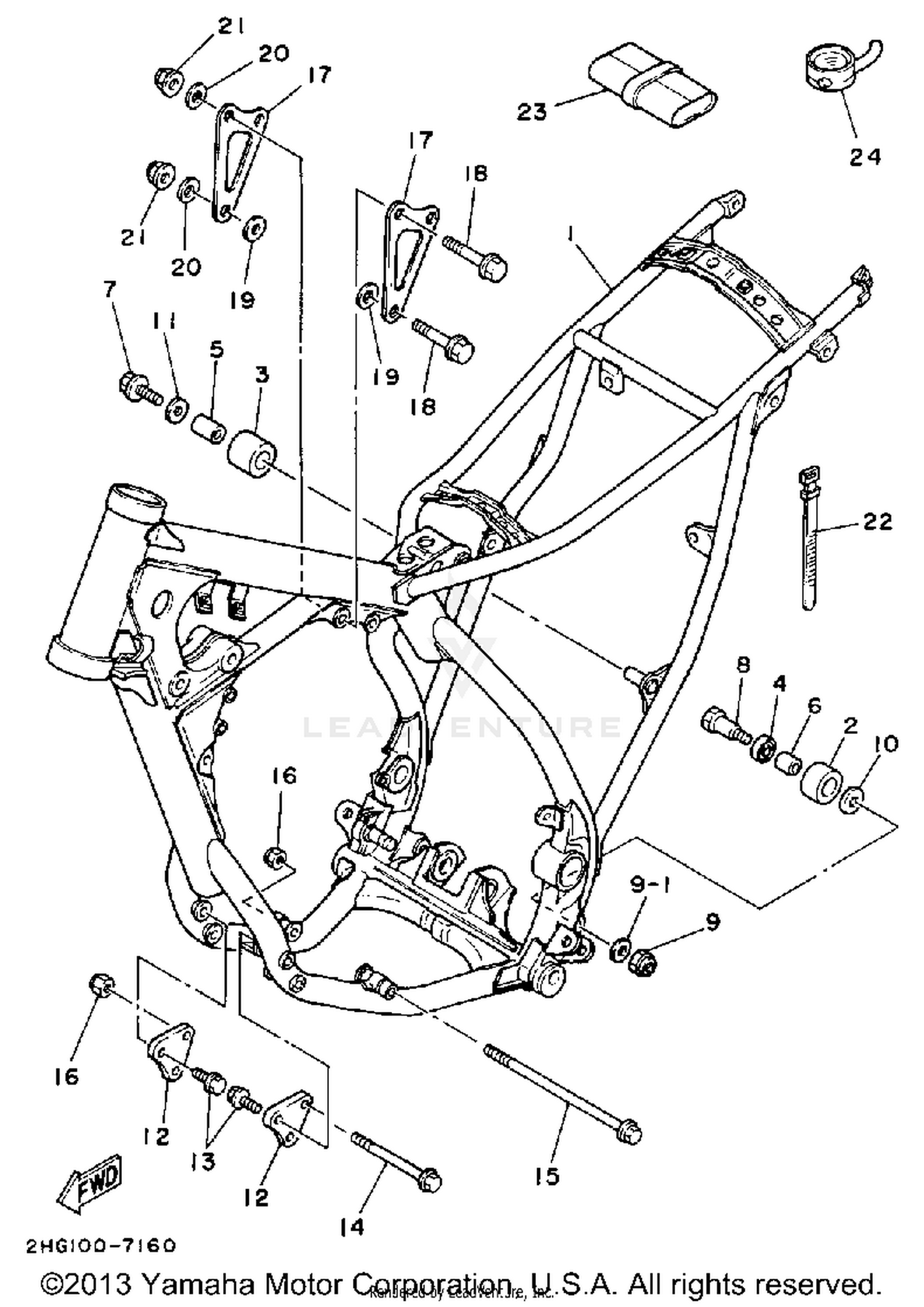

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, PLATE
90201-08452-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
FRAME
2HG-21110-00-UJ
|
$1,047.99 | ||
|
Unavailable |
|||
|
#2
TENSIONER
2HH-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER
30X-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95023-08045-00
Superseded by 95024-08045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-081A6-00
Superseded by 90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, ENGINE 2
1LX-21419-01-00
|
$45.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
95811-08040-00
Superseded by 95817-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95811-08095-00
Superseded by 95817-08095-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,FLANGE
95811-08185-00
Superseded by 95817-08185-00
|
$6.99 | ||
|
Unavailable |
|||
|
#16
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
BRACKET, REAR UPR 1
1LX-21425-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90202-08022-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-085E6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
TOOL KIT (1LU-28100-00)
1LX-28100-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#24
GAUGE, AIR
2X4-2811A-01-00
|
$83.99 | ||
|
Unavailable |
|||
