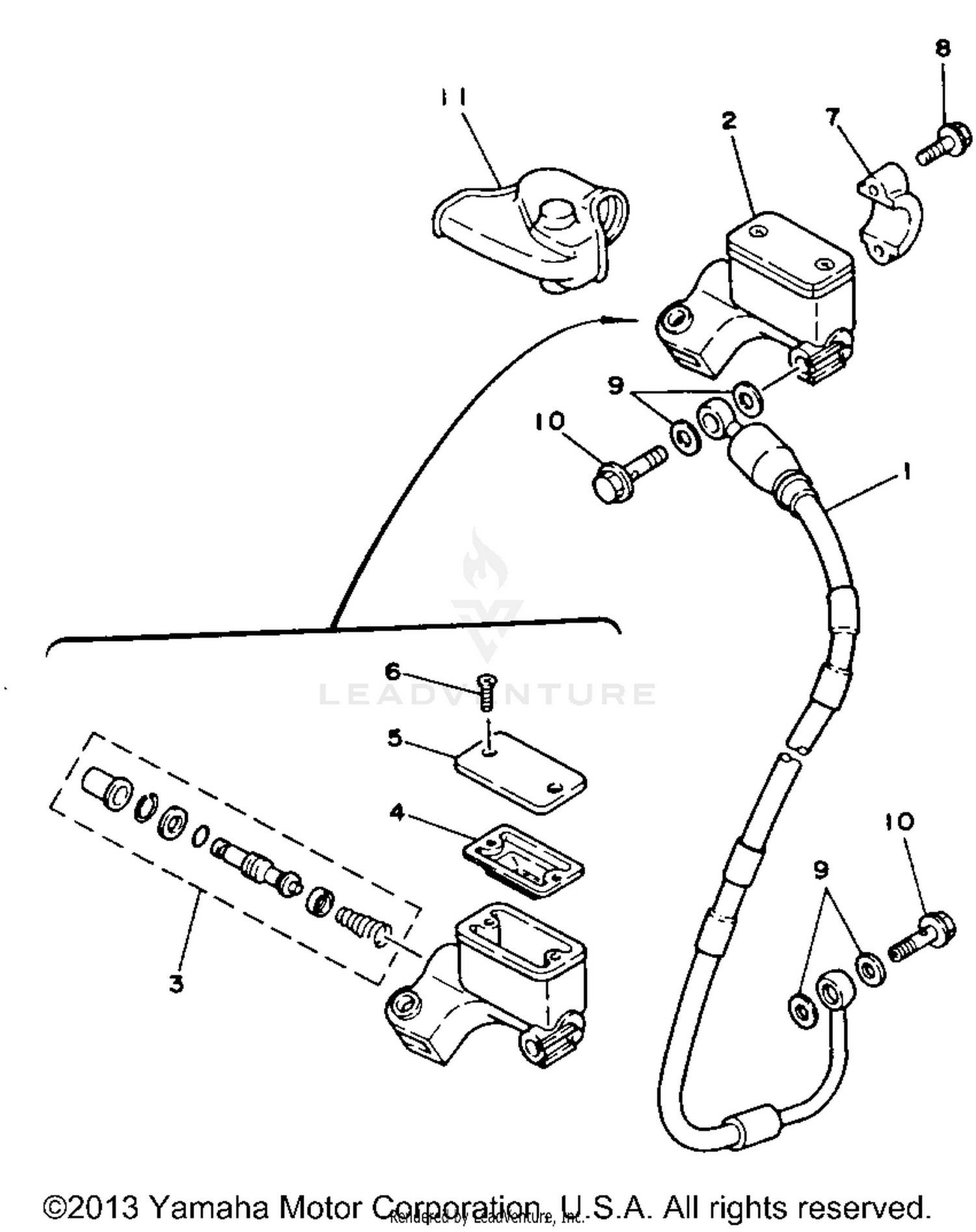

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, BRAKE 1
3JD-25872-00-00
|
$398.99 | ||
|
Unavailable |
|||
|
#2
MASTER CYL.SUB ASY
3JD-25870-00-00
Superseded by 3JD-25870-01-00
|
$212.99 | ||
|
Unavailable |
|||
|
#3
CYLINDER KIT, MASTER
56A-W0041-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, DIAPHRAGM
56A-25854-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, RESERVOIR
2VN-25852-01-00
Superseded by 2VN-25852-02-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95026-06025-00
Superseded by 95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, HANDLE LEVER 1
56A-26372-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
