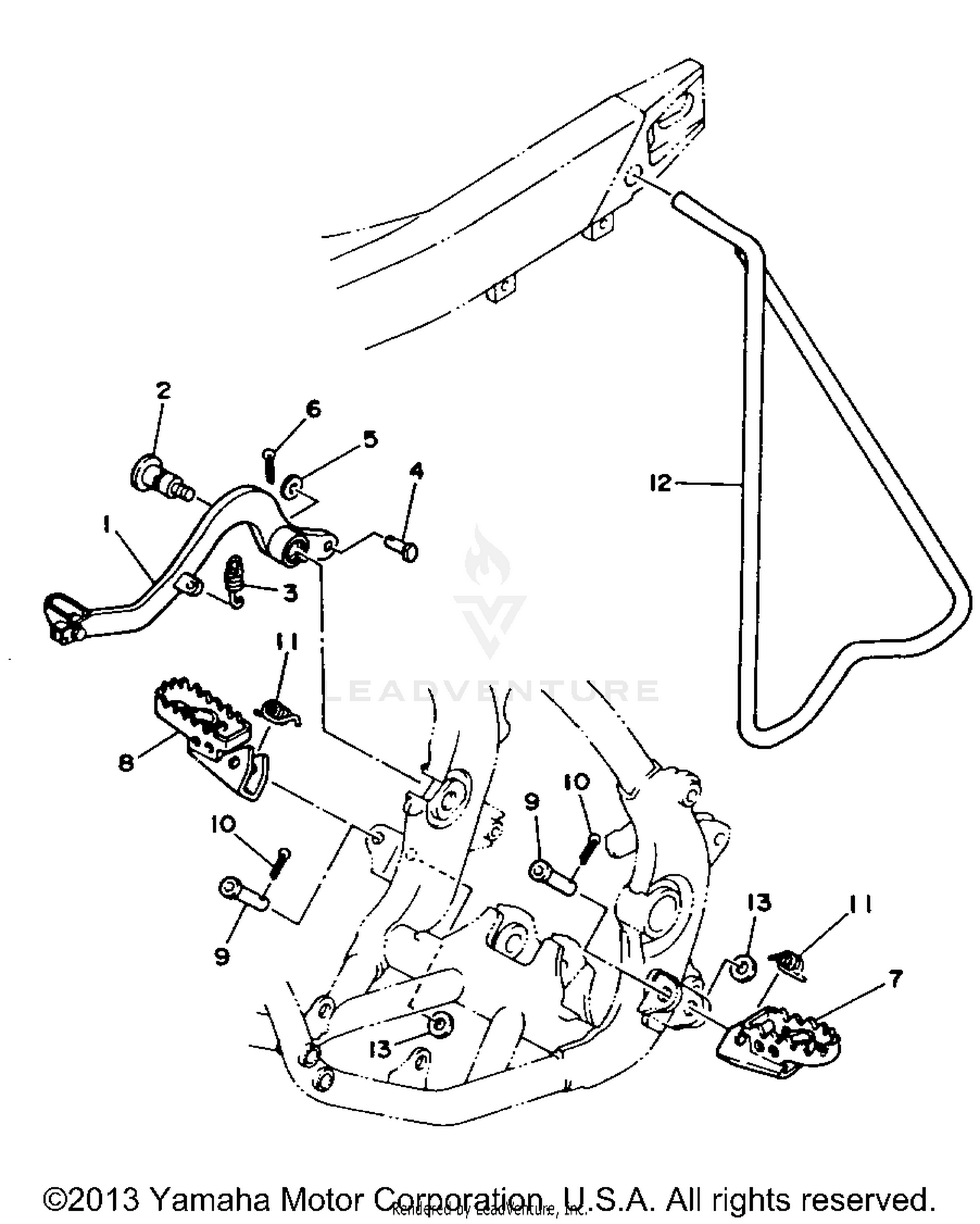

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
3JD-27200-01-00
|
$130.99 | ||
|
Unavailable |
|||
|
#2
BOLT
4AA-27217-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#3
SPRING, TENSION
90506-14449-00
Superseded by 90506-14410-00
|
$6.49 | ||
|
Unavailable |
|||
|
#4
PIN, CLEVIS
90240-08120-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
FOOTREST 1
2VN-27411-00-00
Superseded by 3LD-27411-10-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FOOTREST 2
2VN-27421-00-00
Superseded by 3LD-27421-10-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, CLEVIS
90240-10117-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#11
SPRING, TORSION
90508-28777-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAND, SIDE
1LX-27311-00-00
Superseded by 4LB-27311-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-10119-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
