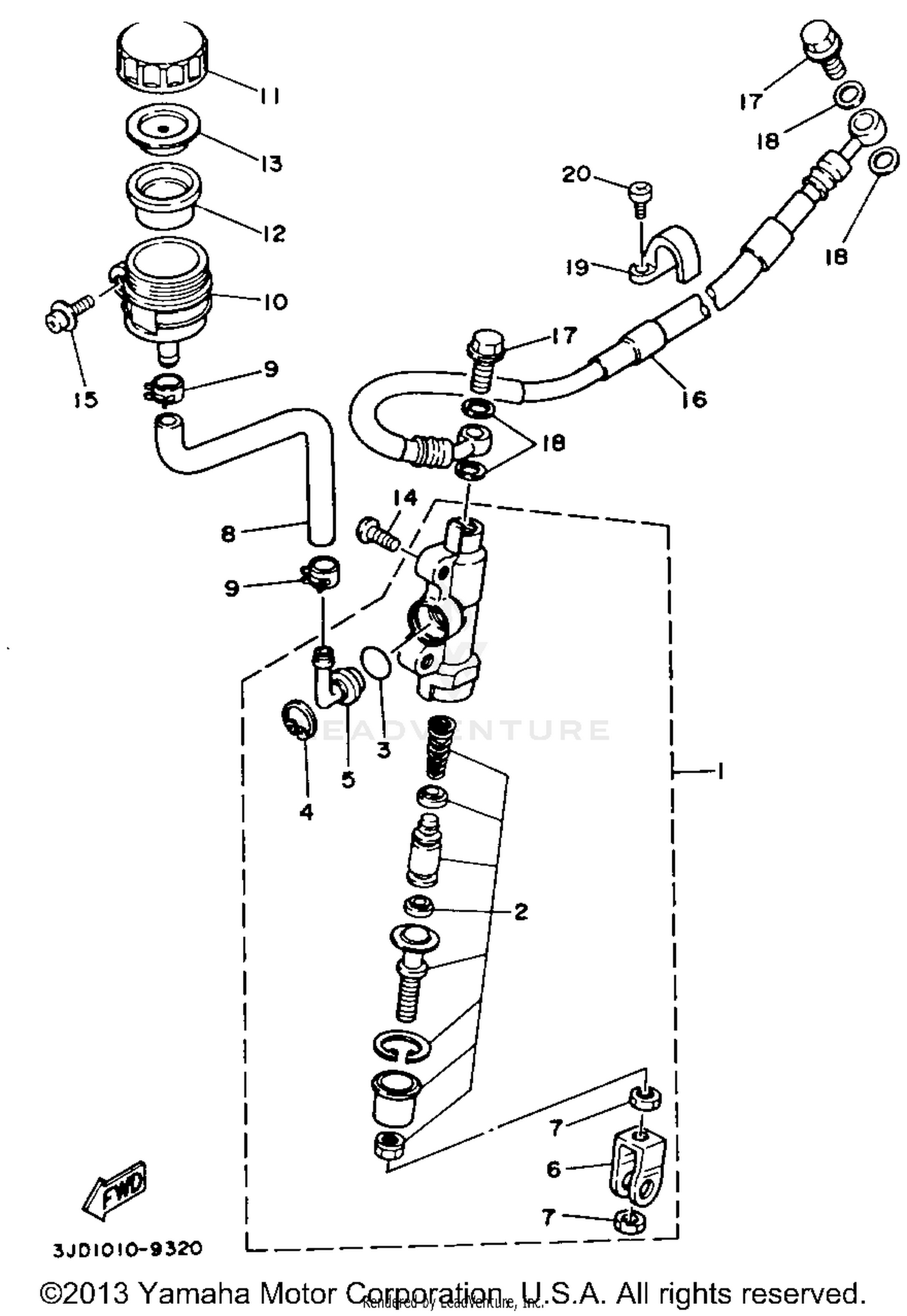

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MSTR CYLINDER ASSEMBLY
2VN-25850-50-00
|
$310.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
1FK-W0042-50-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
2VN-25866-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT
2VN-2582A-50-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT
2VN-27222-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#7
NUT
95303-08600-00
Superseded by 95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, RESERVOIR
3JD-25895-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#9
CLIP
90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
TANK, RESERVOIR
2VN-25894-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, RESERVOIR
2VN-25852-50-00
Superseded by 3XP-25852-50-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, DIAPHRAGM
2VN-25854-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSH,DIAPHRAGM
2VN-25855-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92013-06016-00
Superseded by 92014-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, WITH WASHER
90159-06056-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, BRAKE 2
3JD-25873-10-00
Superseded by 99999-03022-00
|
$149.99 | ||
|
Unavailable |
|||
|
#17
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, BRAKE HOSE 2
2VM-25876-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
