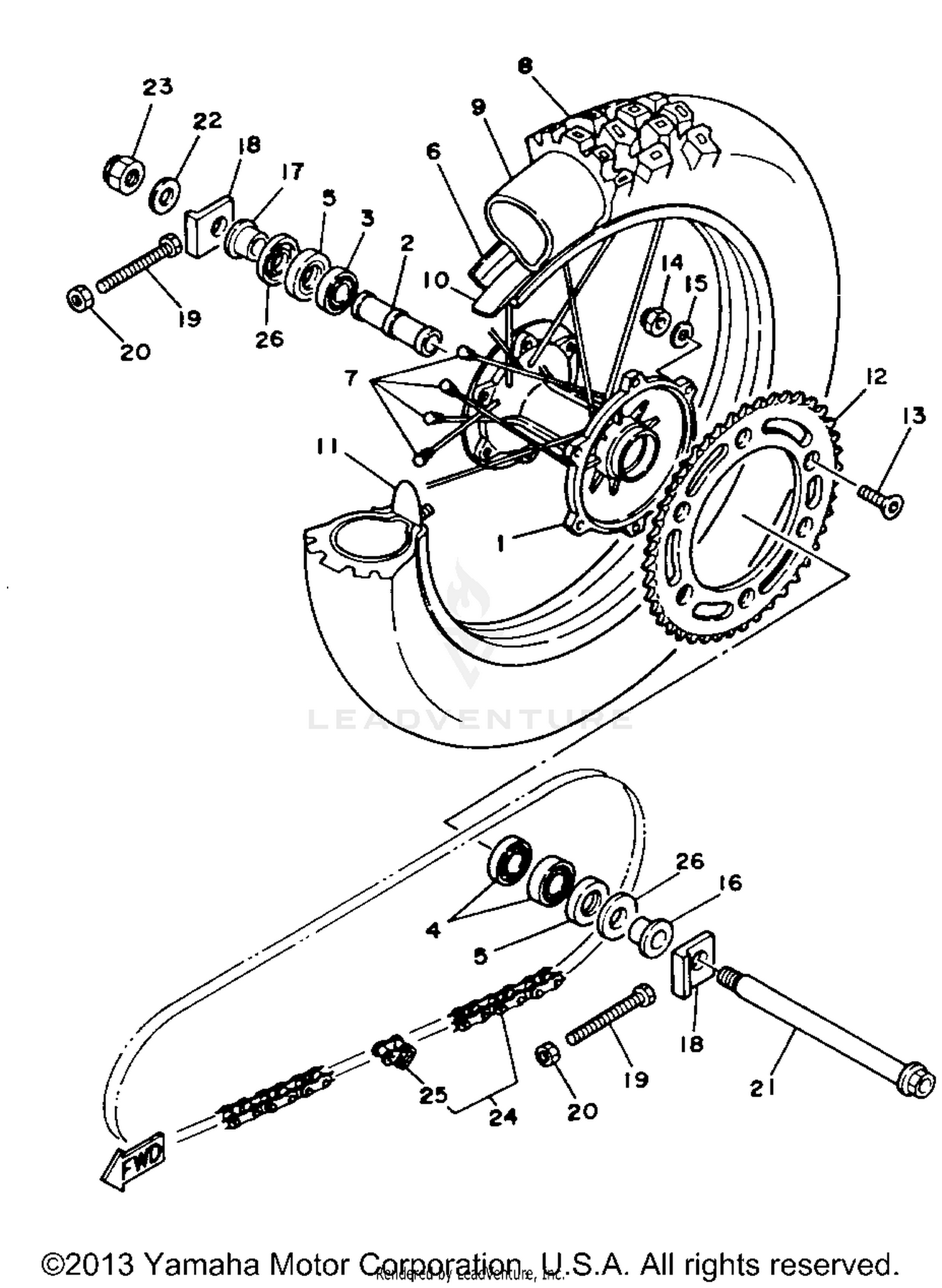

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
2VN-25311-00-98
|
$199.99 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
3JD-25317-01-00
|
$52.99 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-00418-00
Superseded by 93306-00444-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-00438-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-28023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIM (1.85-19)
94418-19485-00
|
$327.99 | ||
|
Unavailable |
|||
|
#7
SPOKE SET, REAR
3JD-25304-00-00
|
$144.99 | ||
|
Unavailable |
|||
|
#8
TIRE (057M 100/90-19 M52)
94110-190U8-00
|
$77.67 | ||
|
Unavailable |
|||
|
#9
TUBE (100/90-19 M/C TR4)
94210-19222-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, RIM (2.00-19)
94327-19111-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BAND, RIM (2.00-19)
94316-19156-00
Superseded by 94327-19111-00
|
$13.99 | ||
|
Unavailable |
|||
|
#11
SPACER, BEAD
2X3-25394-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#12
SPROCKET, DRIVEN (51T)
3R4-25451-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, driven (44T)
39-W2544-40-00
|
|||
|
Unavailable |
|||
|
#
SPROCKET, driven (45T)
39-W2544-50-00
|
|||
|
Unavailable |
|||
|
#
SPROCKET, driven (46T)
39-W2544-60-00
|
|||
|
Unavailable |
|||
|
#
SPROCKET, driven (48T)
3R-42544-80-1X
|
|||
|
Unavailable |
|||
|
#
SPROCKET, driven (50T)
3R-42545-00-1X
|
|||
|
Unavailable |
|||
|
#
SPROCKET, driven (52T)
3R-42545-20-1X
|
|||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (49T) (2HH-254
3R4-25449-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#13
BOLT
90109-08792-00
Superseded by 90109-081G1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-081A6-00
Superseded by 90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-203V0-00
Superseded by 90387-2000B-00
|
$16.49 | ||
|
Unavailable |
|||
|
#17
COLLAR
90387-202V9-00
|
$14.99 | ||
|
Unavailable |
|||
|
#18
PULLER, CHAIN 1
3JD-25388-00-00
Superseded by 3SP-25388-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
AXLE, WHEEL
3JD-25381-01-00
|
$68.99 | ||
|
Unavailable |
|||
|
#22
WASHER
92990-18600-00
Superseded by 92995-18600-00
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CHAIN (DID520DMA2 SDH 114LL)
94581-13114-00
Superseded by 9Y581-92113-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT,CHAIN (DID 520DM-RJ)
94681-13001-00
Superseded by 94681-68001-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, HUB DUST
4V4-25367-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
