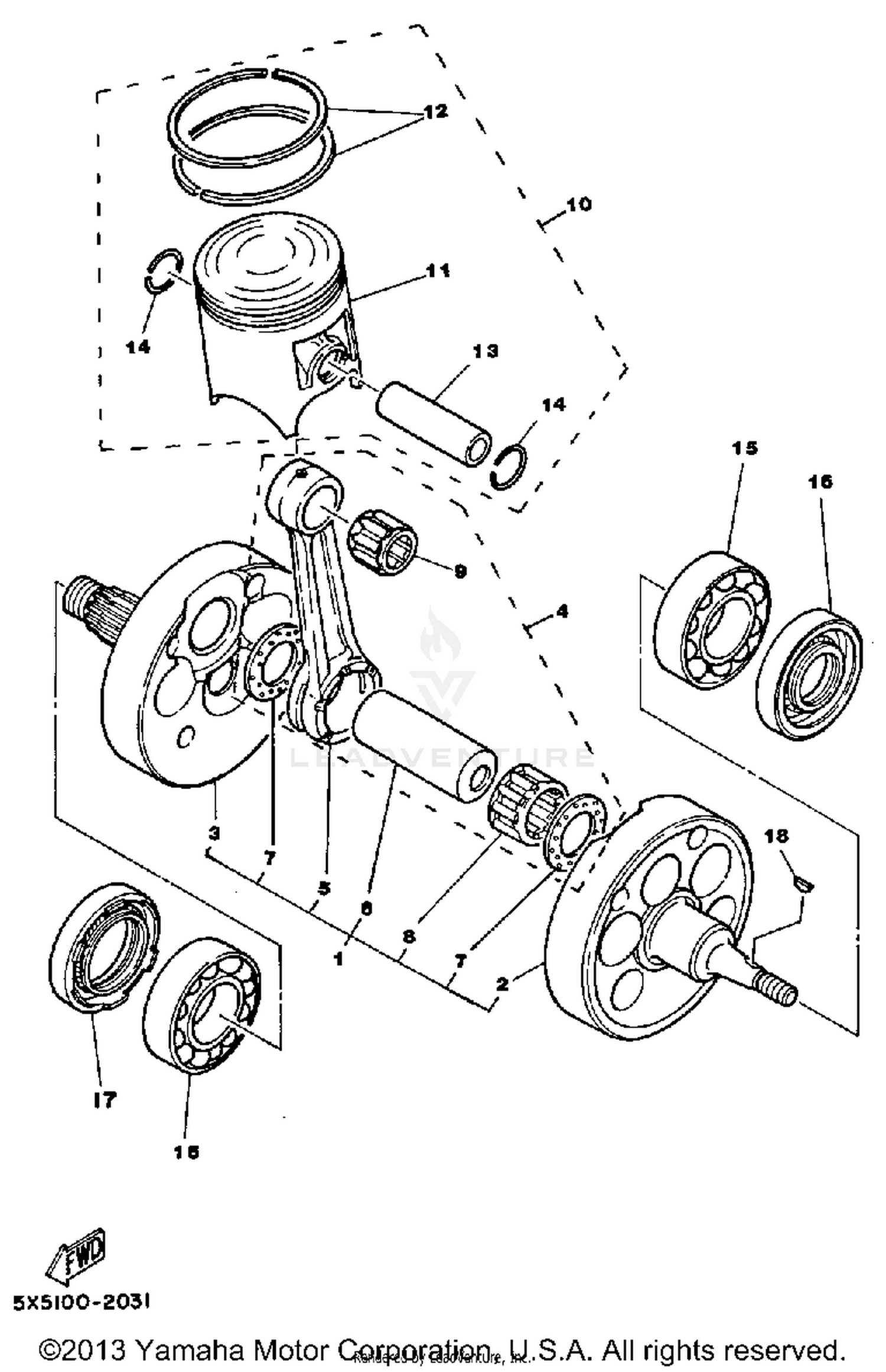

Crankshaft Piston Yz250k Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
24Y-11400-01-00
|
$425.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
24Y-11412-01-00
|
$342.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
24Y-11422-01-00
|
$188.99 | ||
|
Unavailable |
|||
|
#4
CONNECTING ROD ASSEMBLY
24Y-11650-01-00
|
$237.99 | ||
|
Unavailable |
|||
|
#5
ROD, CONNECTING
24Y-11651-01-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CRANK 1
2X4-11681-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL SHAPE
90209-25085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CYLINDRICAL
93310-425N4-00
Superseded by 93310-425P2-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CYLINDRICAL
93310-418E9-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON KIT STD
24Y-11630-00-00
Superseded by 39X-11630-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#11
PISTON STD (24Y-11631-00-94)
24Y-11631-01-94
|
$120.99 | ||
|
Unavailable |
|||
|
#12
PISTON RINGSET STD (STD)
24Y-11601-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#13
PIN, PISTON
214-11633-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93450-19052-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-20627-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (38W)
93103-30150-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93103-40091-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PISTON 4 O/S 1.00 (24Y-11638-00
24Y-11638-01-00
|
$124.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST (1ST O/S)
24Y-11601-10-00
|
$36.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND (2ND O/S)
24Y-11601-20-00
|
$58.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD (3RD O/S)
24Y-11601-30-00
|
$38.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH (4TH O/S)
24Y-11601-40-00
|
$40.99 | ||
|
Unavailable |
|||
|
#
PISTON 3RD O/S .75 (24Y-11637-0
24Y-11637-01-00
|
$120.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND (2ND O/S)
24Y-11636-01-00
Superseded by 39X-11630-20-00
|
$120.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 1ST (1ST O/S)
24Y-11635-01-00
Superseded by 39X-11630-10-00
|
$120.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 4TH (4TH O/S)
24Y-11630-40-00
Superseded by 39X-11630-40-00
|
$87.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 3RD (3RD O/S)
24Y-11630-30-00
Superseded by 39X-11630-30-00
|
$91.99 | ||
|
Unavailable |
|||
|
#
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON KIT 1ST (1ST O/S)
24Y-11630-10-00
Superseded by 39X-11630-10-00
|
$120.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND (2ND O/S)
24Y-11630-20-00
Superseded by 39X-11630-20-00
|
$120.99 | ||
|
Unavailable |
|||
