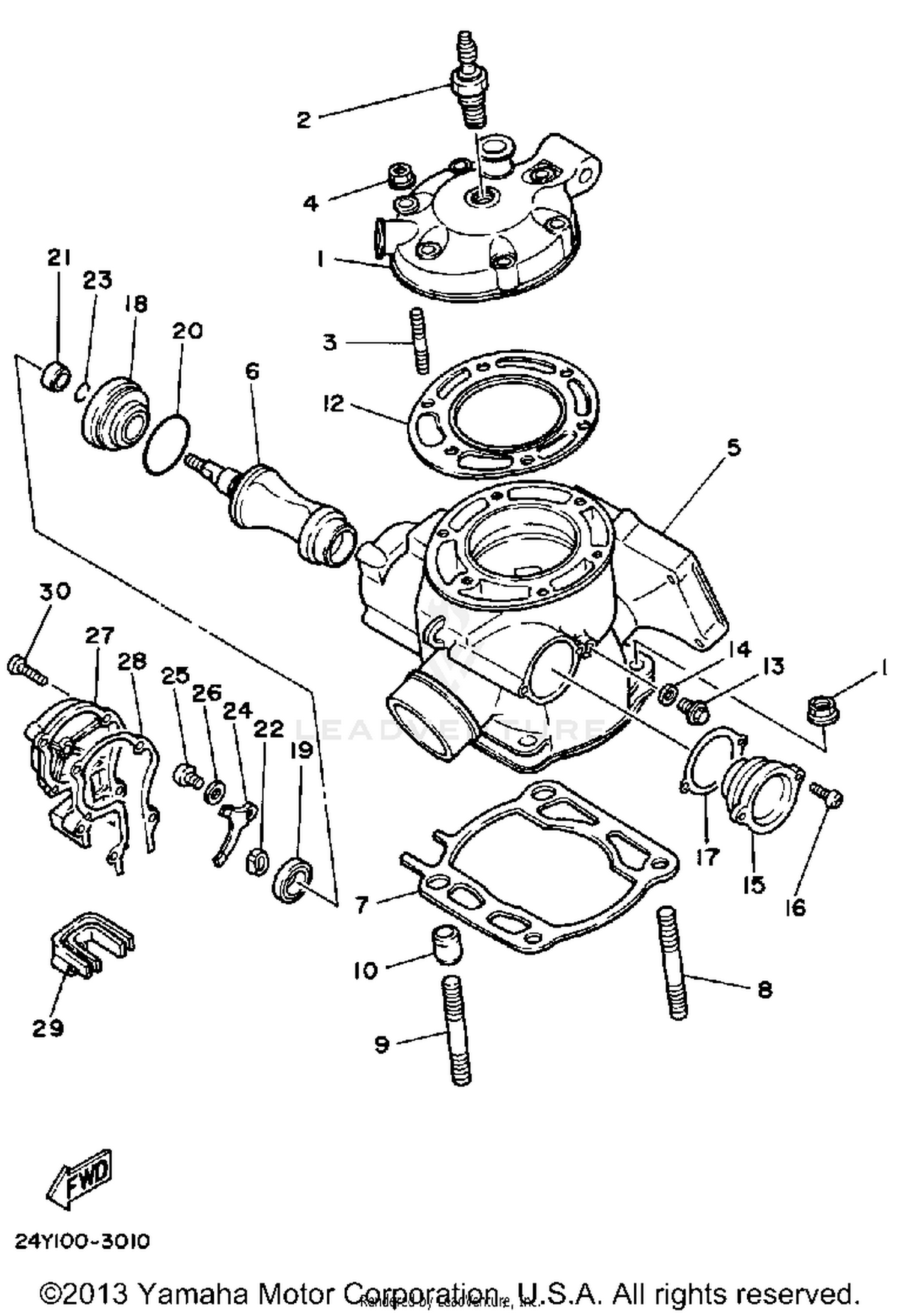

Cylinder Yz250k Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
24Y-11111-00-00
|
$94.60 | ||
|
Unavailable |
|||
|
#2
B8EG NGK SPLUG 4PK
NGK-B8EG0-00-00
Superseded by B8E-G0000-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#3
BOLT, STUD
90116-08394-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-08491-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER 1
24Y-11311-00-00
|
$493.99 | ||
|
Unavailable |
|||
|
#6
VALVE 1
24Y-1131A-00-00
|
$248.99 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER
5X5-11351-00-00
Superseded by 39X-11351-02-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
90116-10313-00
|
$4.15 | ||
|
Unavailable |
|||
|
#9
BOLT, STUD
90116-10314-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET8CYL AD1
24Y-11181-00-00
Superseded by 24Y-11181-01-00
|
$47.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
90430-06166-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER 1
24Y-W1132-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, HOLDER
5X5-1131N-00-00
Superseded by 5X5-1131N-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
HOLDER 2
5X5-W1133-00-00
|
$138.99 | ||
|
Unavailable |
|||
|
#19
OIL SEAL
93104-16074-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-35512-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-102F3-00
Superseded by 90387-102W0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOSS, COLLAR
5X5-11937-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#23
O-RING
93210-09192-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, THRUST 1
56A-11915-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOUSING 2
24Y-11992-00-00
Superseded by 24Y-11992-01-00
|
$47.99 | ||
|
Unavailable |
|||
|
#28
GASKET,YPVS HOUSIN
24Y-11993-00-00
Superseded by 24Y-11993-01-00
|
$16.99 | ||
|
Unavailable |
|||
|
#29
SEAL, HOUSING
5X5-11995-00-00
|
$13.72 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
