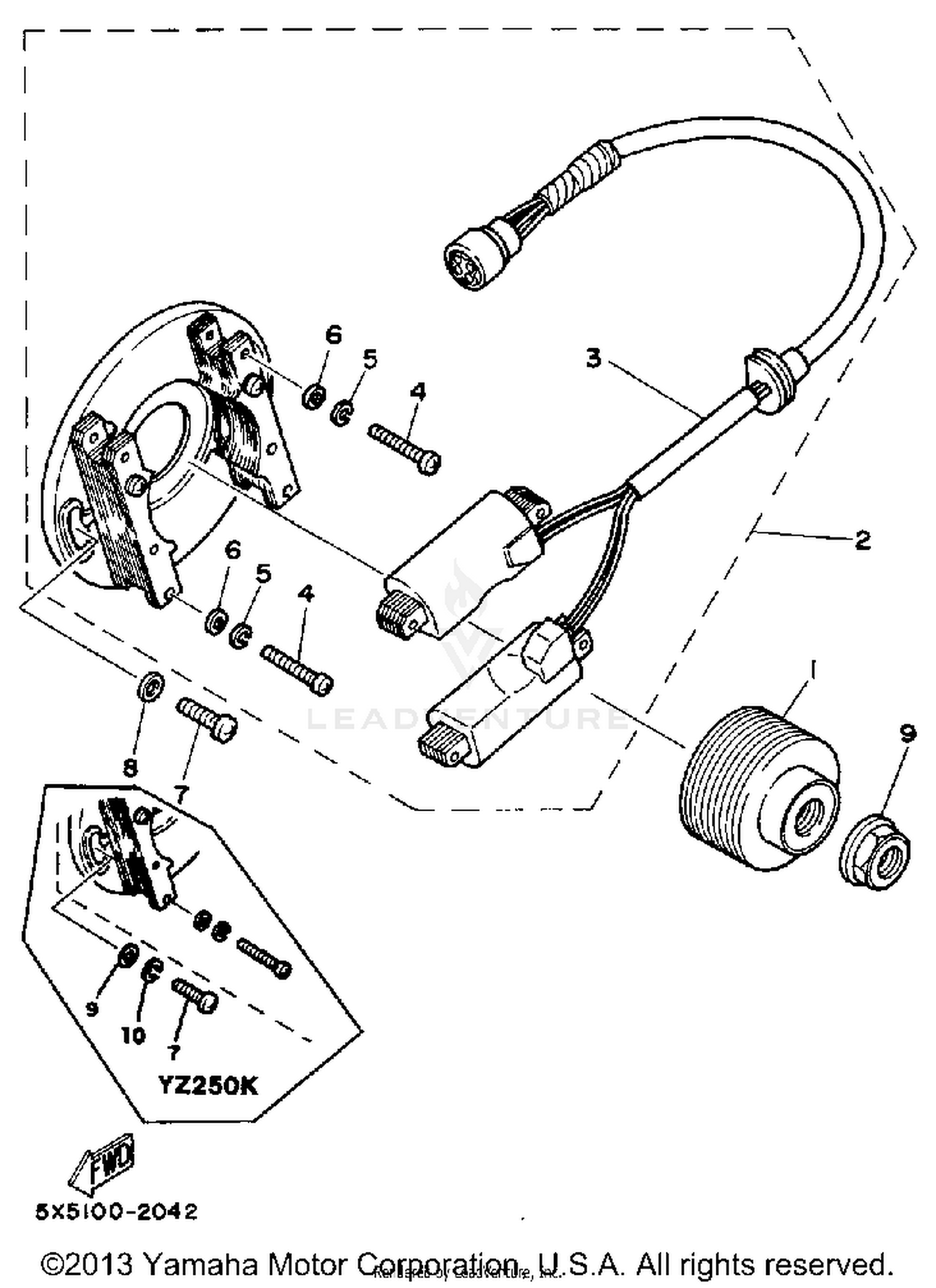

Generator Yz250k L Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR ASSEMBLY
24Y-85550-10-00
|
$174.99 | ||
|
Unavailable |
|||
|
#
ROTOR ASSEMBLY
39X-85550-10-00
|
$166.99 | ||
|
Unavailable |
|||
|
#2
STATOR ASSEMBLY
39X-85510-10-00
|
$166.99 | ||
|
Unavailable |
|||
|
#
STATOR ASSEMBLY
24Y-85510-10-00
|
$204.99 | ||
|
Unavailable |
|||
|
#3
COIL, CHARGE
39W-85520-10-00
|
$582.99 | ||
|
Unavailable |
|||
|
#
COIL, CHARGE
24Y-85520-10-00
|
$400.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-05020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SPECL SHAPE
90179-10257-00
|
$9.49 | ||
|
Unavailable |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
