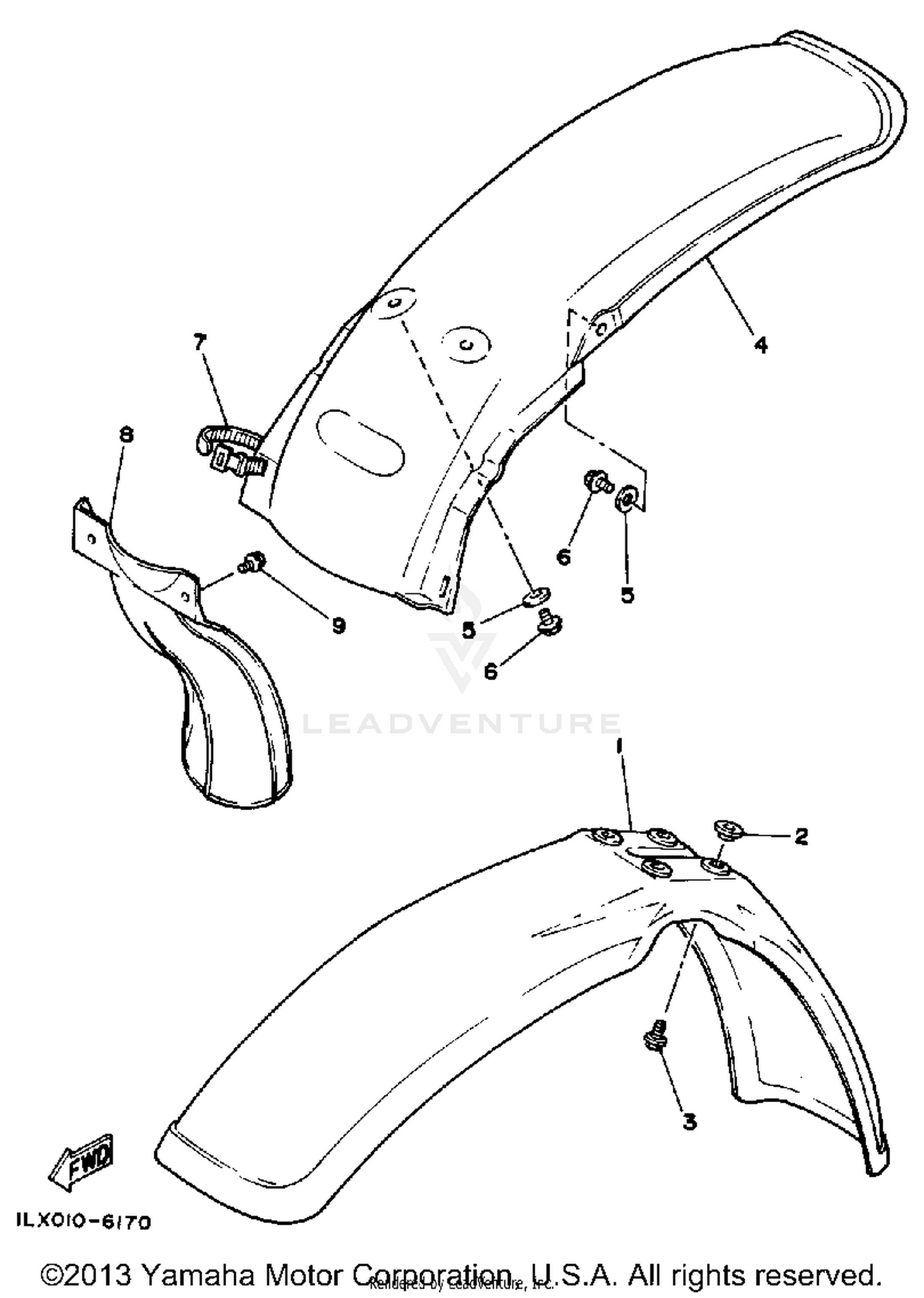

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5X6-21511-11-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06063-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER, REAR
1LX-21611-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-06138-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUARD, FLAP
39X-21642-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06042-00
Superseded by 90119-06117-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
