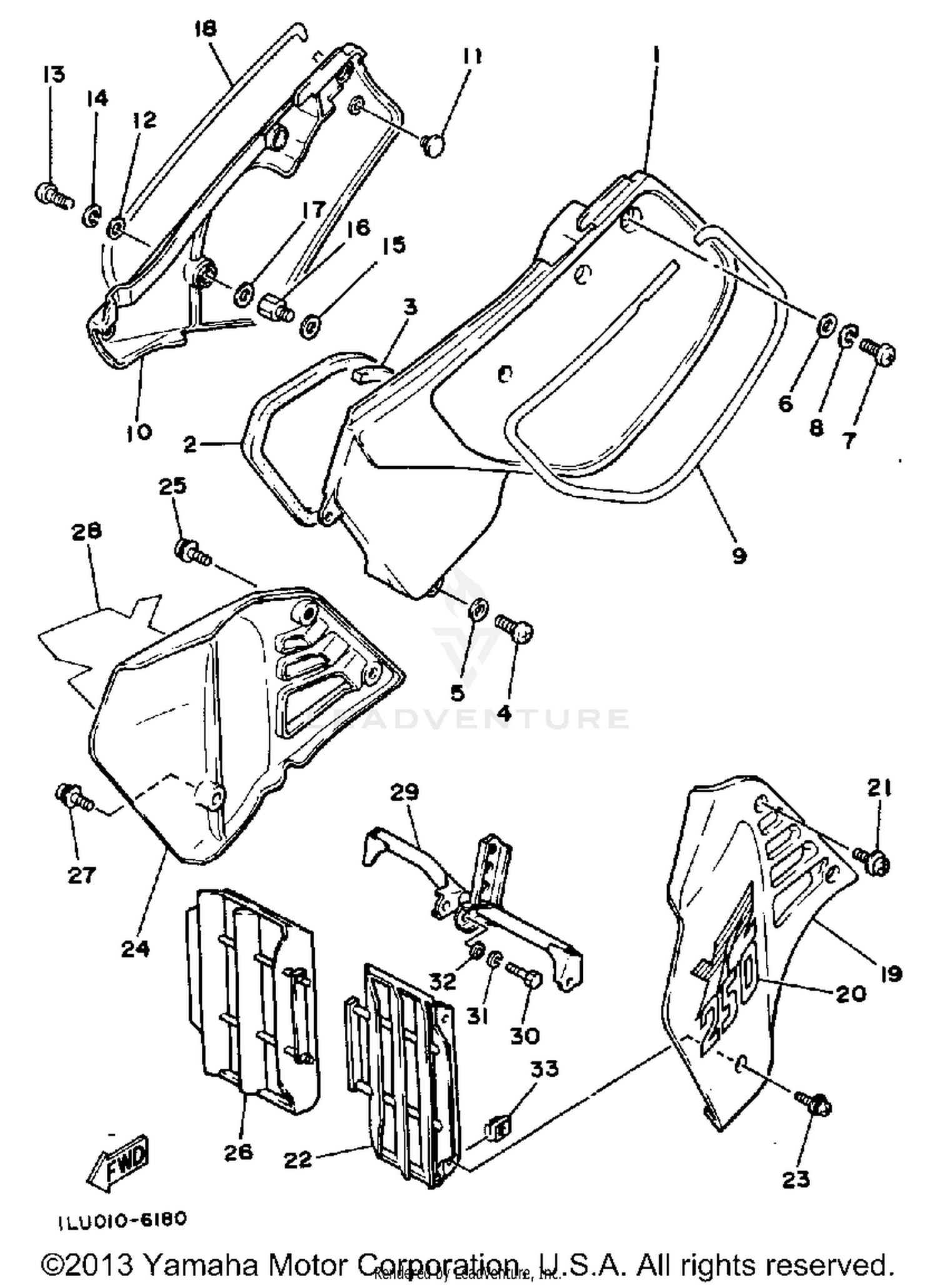

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE LEFT
1LX-21711-01-98
|
$52.99 | ||
|
Unavailable |
|||
|
#2
SEAL
39W-14452-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#3
SEAL
39X-14452-00-00
|
$2.85 | ||
|
Unavailable |
|||
|
#4
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRAPHIC SET 1
1LX-2173L-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#10
COVER, SIDE 2 (2HG)
99999-01787-00
|
$54.99 | ||
|
Unavailable |
|||
|
#11
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-063A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
GRAPHIC SET 2
1LX-2174L-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#20
GRAPHIC, FUEL TANK 7
1LU-24254-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#22
PANEL 1
24Y-2172A-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#23
SCREW, WITH WASHER
90159-05100-00
Superseded by 90159-05073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, SIDE 4
1LU-21741-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#25
SCREW, WITH WASHER
90159-06013-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PANEL 1
24Y-2172A-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#27
SCREW, WITH WASHER
90159-05100-00
Superseded by 90159-05073-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
GRAPHIC, FUEL TANK 7
1LU-24254-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#31
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
22W-21791-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
