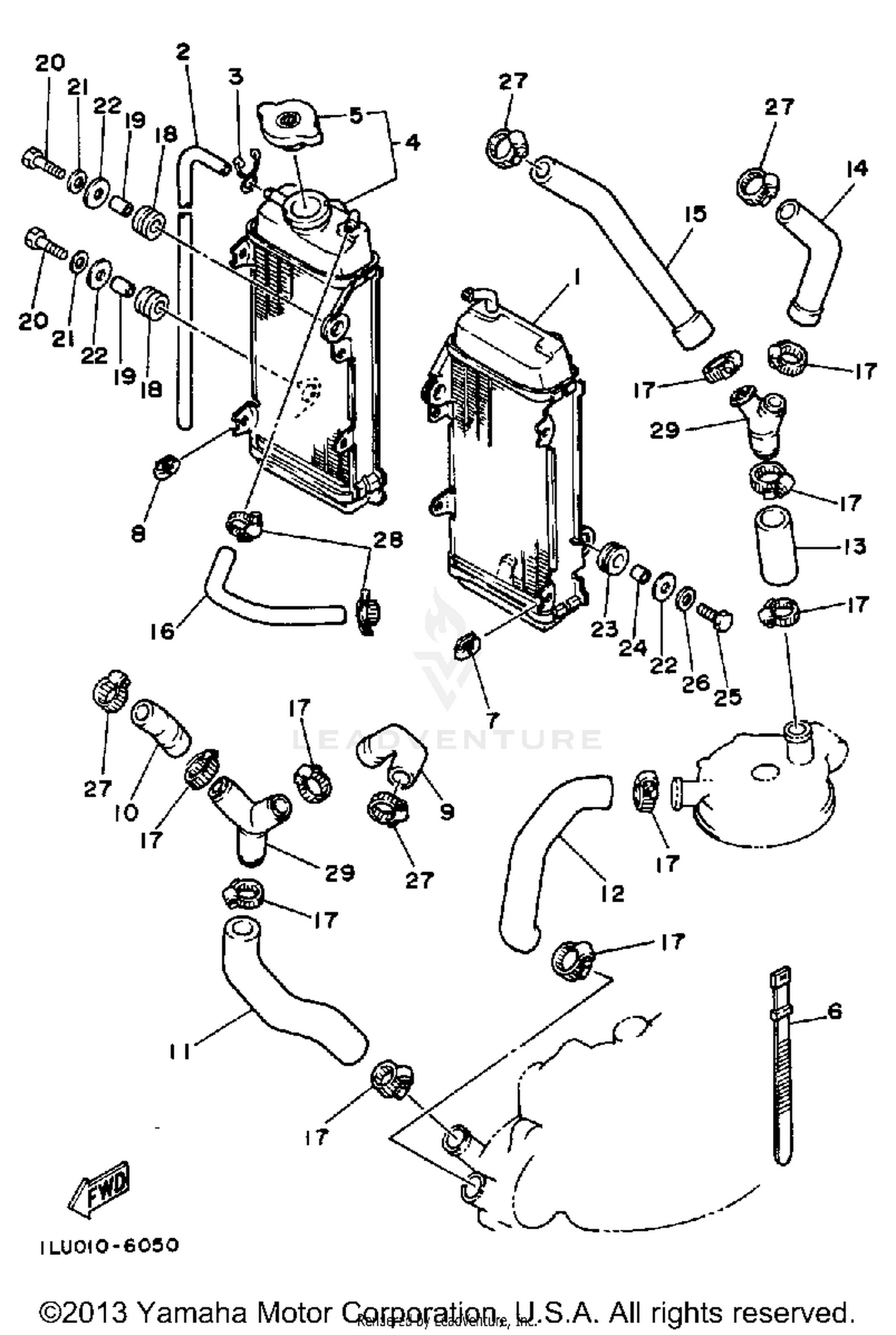

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY 2
1LX-12460-00-00
Superseded by 1LX-1240A-01-00
|
$404.99 | ||
|
Unavailable |
|||
|
#2
TUBE, FLEXIBLE VINYL
90446-09013-00
Superseded by 91A20-05080-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
RADIATOR ASSEMBLY 2
1LU-1240A-00-00
|
$563.99 | ||
|
Unavailable |
|||
|
#5
CAP, RADIATOR
22W-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
22W-21791-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
22W-21791-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
PIPE 1
1LU-12481-00-00
|
$13.36 | ||
|
Unavailable |
|||
|
#10
PIPE 2
1LU-12482-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#13
PIPE 3
3AK-12483-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#14
PIPE 6
1LU-12476-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-15064-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-074W0-00
Superseded by 90387-061V1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-06570-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-18276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR (90387-066J9)
90387-064W1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#25
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Unavailable |
|||
|
#27
CLAMP, HOSE
90460-22252-00
|
$6.99 | ||
|
Unavailable |
|||
|
#28
CLAMP, HOSE
90460-15227-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT 1
24X-12469-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
