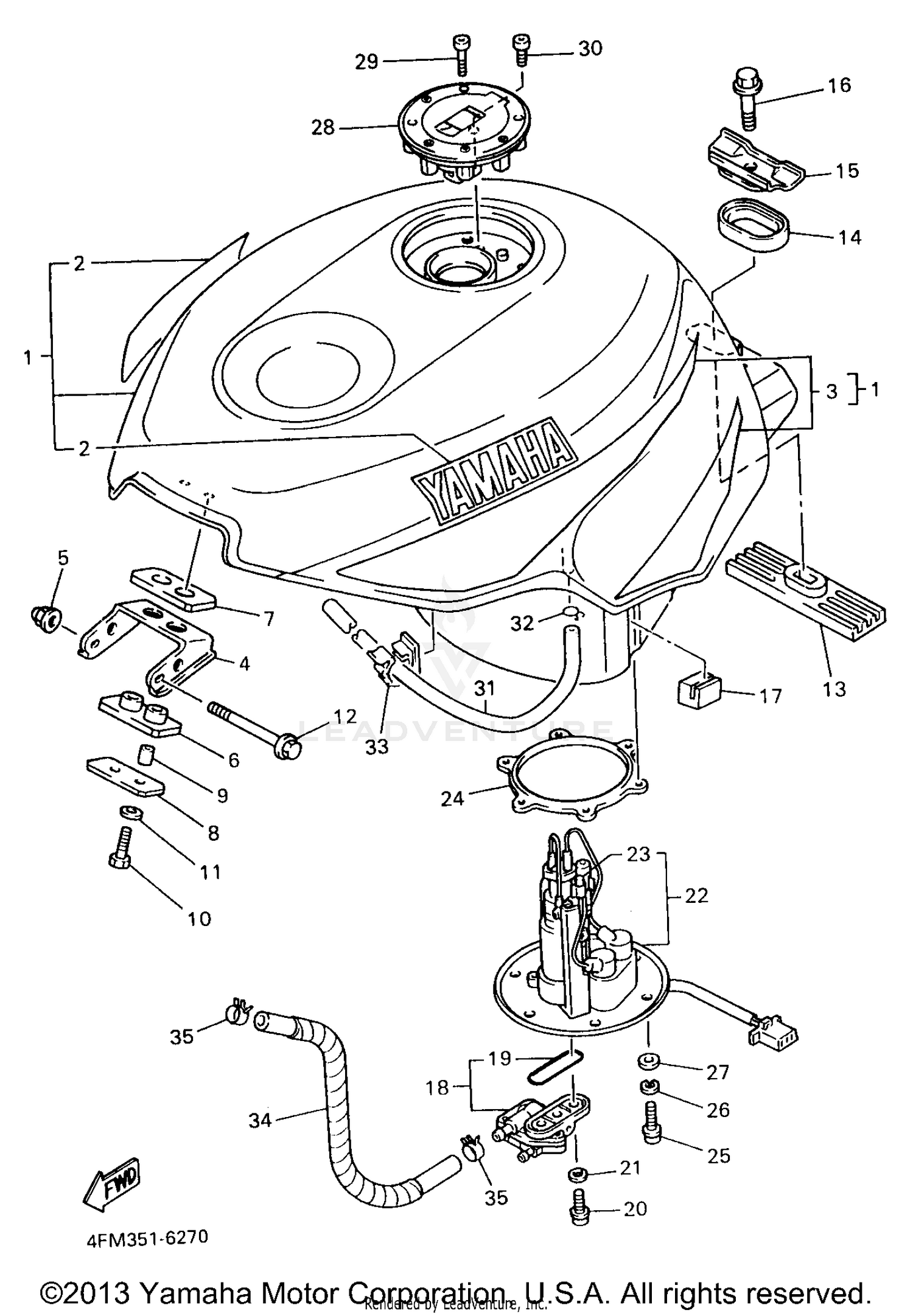

Fuel Tank Non California Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4FM-24110-30-X6
|
$1,097.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
99226-00160-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRAPHIC SET
4HD-24240-00-00
|
$209.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, FUEL TANK 1
4FM-24191-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#5
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 1
2GH-24181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 3
2GH-24183-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPECIAL
2GH-24186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-06553-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95817-06075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 4
2GH-24184-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, LOCATING 3
3Y6-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL
4FM-24187-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,FLANGE (JN5)
95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 3
4JH-24183-00-00
Superseded by 4JH-24183-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#18
FUEL COCK ASSEMBLY 1
3FV-24500-02-00
|
$252.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, SPECIAL SHAPE
90149-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUEL PUMP ASSEMBLY
4FM-13910-00-00
|
$709.99 | ||
|
Unavailable |
|||
|
#23
THERMISTOR ASSEMBLY
4FM-85700-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#24
SEAL
4FM-2414G-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98507-05016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP ASSY
4FM-24602-00-00
Superseded by 4FM-24602-20-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
91317-05010-00
|
$2.40 | ||
|
Unavailable |
|||
|
#31
HOSE
90445-102G7-00
Superseded by 90445-11M78-00
|
$8.90 | ||
|
Unavailable |
|||
|
#32
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP
90464-25160-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE
3FV-14294-02-00
|
$33.99 | ||
|
Unavailable |
|||
|
#35
CLIP
90467-13123-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
