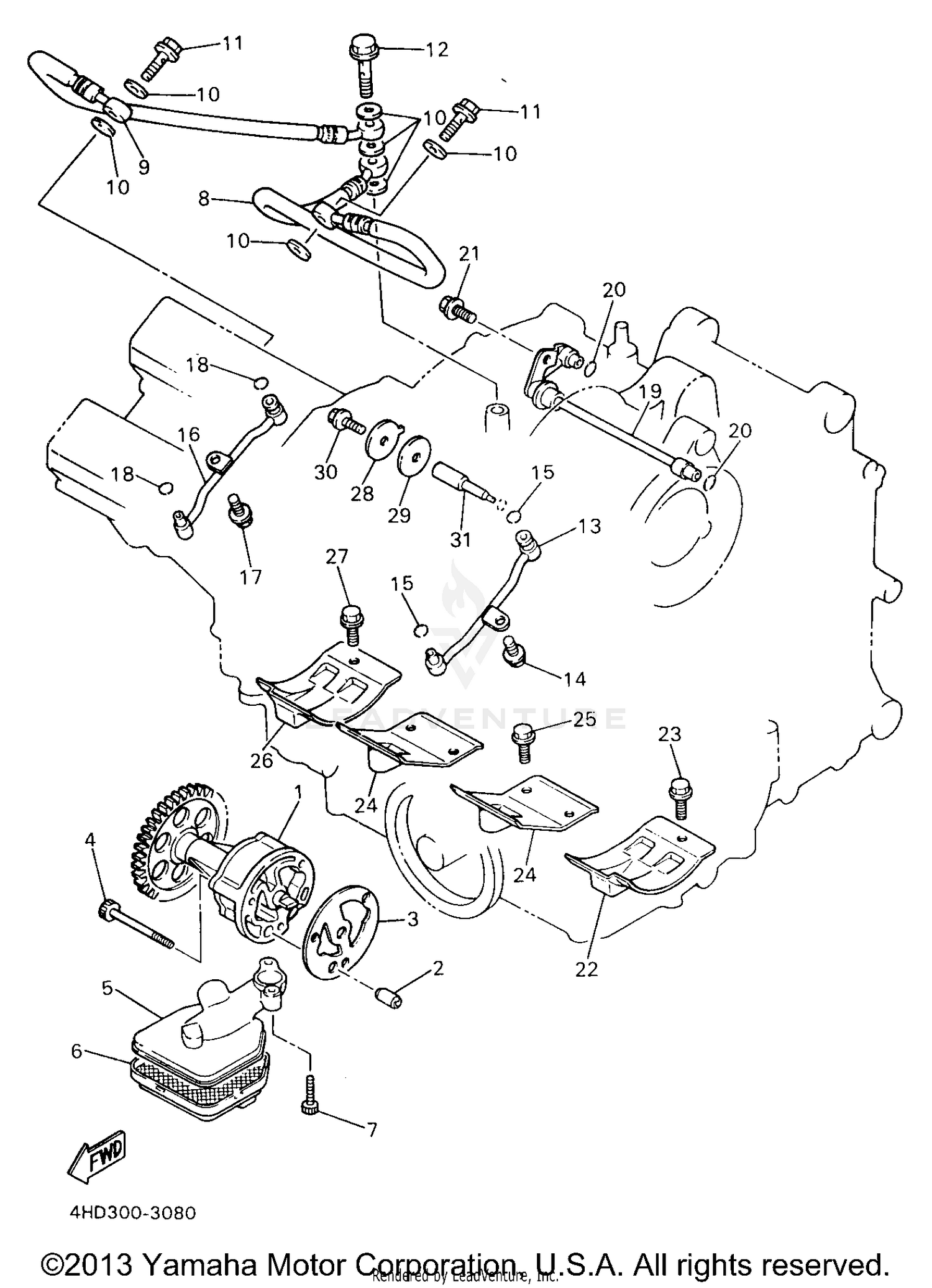

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSEMBLY
1AE-13300-00-00
|
$241.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-08012-00
Superseded by 91808-12024-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, PUMP COVER
2GH-13329-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91317-06050-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOUSING, STRAINER
3GM-13412-50-00
|
$73.99 | ||
|
Unavailable |
|||
|
#6
STRAINER, OIL
4FM-13411-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#7
BOLT
91317-06030-00
Superseded by 90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, OIL 1
4BH-1316F-01-00
|
$183.99 | ||
|
Unavailable |
|||
|
#9
HOSE, OIL 2
4BH-1316G-01-00
|
$157.99 | ||
|
Unavailable |
|||
|
#10
GASKET
90430-10171-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, UNION
90401-10044-00
Superseded by 90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, DELIVERY 3
3GM-13181-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, DELIVERY 4
3GM-13191-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-06632-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
PIPE, DELEVERY 5
1AE-1316E-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#20
O-RING
93210-07135-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#22
PLATE, BUFFLE 1
2GH-15123-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#24
PLATE, BUFFLE 2
1AE-15124-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#26
PLATE, BUFFLE 3
2GH-15133-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
90201-061M7-00
|
$2.30 | ||
|
Unavailable |
|||
|
#29
GASKET
4FM-13475-00-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
NOZZLE
3GM-13454-00-00
|
$37.99 | ||
|
Unavailable |
|||
