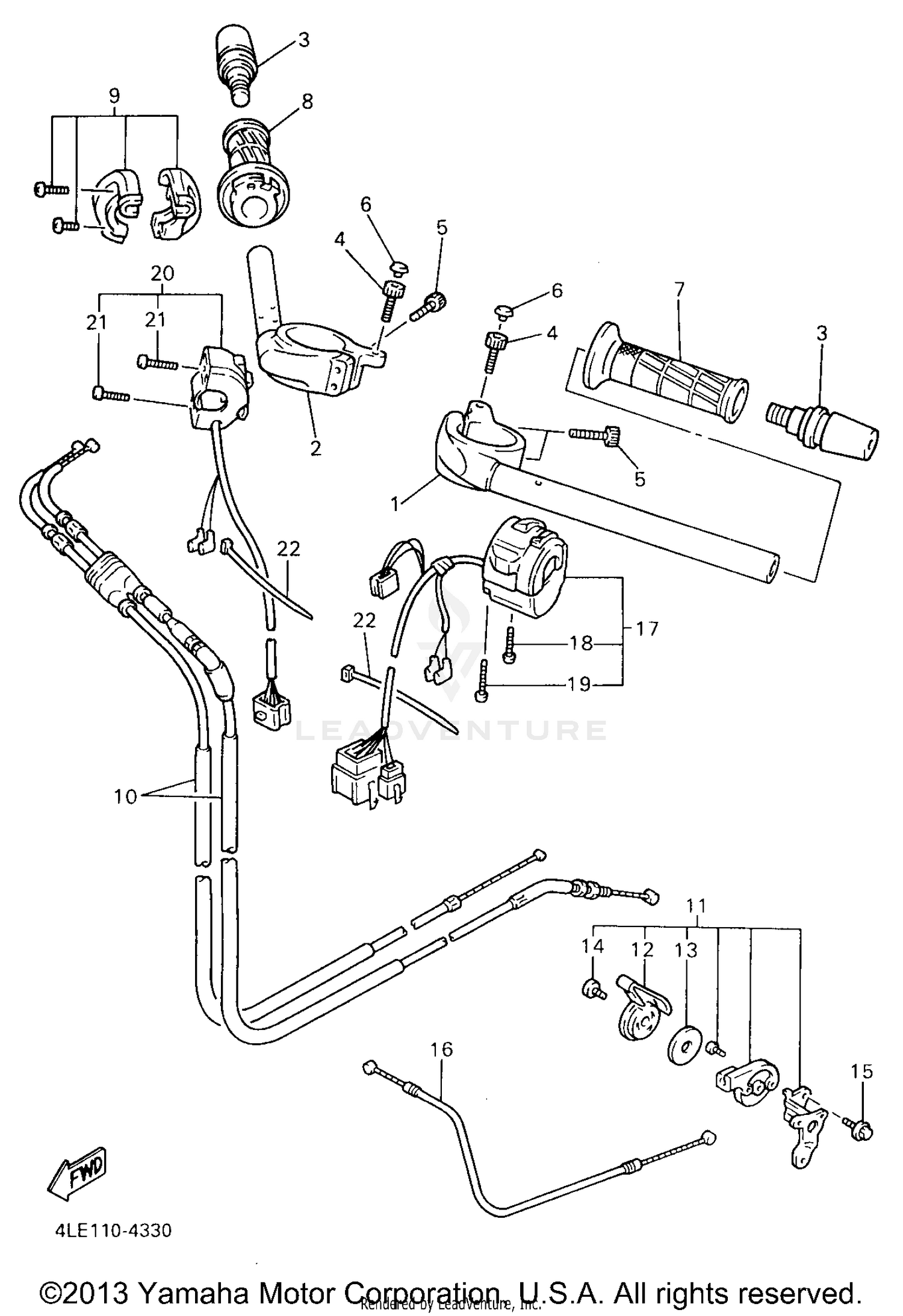

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR (LEFT)
4FM-26121-01-00
|
$195.99 | ||
|
Unavailable |
|||
|
#2
HANDLEBAR (RIGHT)
4FM-26122-00-00
|
$195.99 | ||
|
Unavailable |
|||
|
#3
END, GRIP
36Y-26246-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, BOLT
10L-23469-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP
4FM-26241-00-00
Superseded by 4FM-26241-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRIP ASSY
4FM-26240-00-00
Superseded by 4FM-26240-01-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP GRIP ASSY
3LN-26270-01-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
THROTTLE CABLE ASSEMBLY
4FM-26302-20-00
|
$97.19 | ||
|
Unavailable |
|||
|
#11
STARTER ASSY
4FM-83940-00-00
Superseded by 4FM-83940-01-00
|
$85.99 | ||
|
Unavailable |
|||
|
#12
LEVER, STARTER
1WG-83941-00-00
Superseded by 1WG-83941-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
90209-10131-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, BIND
98907-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,FLANGE
95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, STARTER 1
3FV-26331-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#17
SWITCH, HANDLE 3
3LK-83973-10-00
|
$221.35 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98507-05030-00
Superseded by 98517-05030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98507-05040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SWITCH, HANDLE 2
4FM-83975-00-00
Superseded by 4UN-83975-01-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
